Front Climate Control Unit Inspection

FRONT CLIMATE CONTROL UNIT INSPECTION

1. Connect the front climate control unit connector.
2. Turn the ignition switch to the ON position.
3. Connect the negative (-) lead of the tester to body ground.
4. By inserting the positive (+) lead of the tester into each front climate control unit terminal, measure the voltage according to the terminal voltage table.

- If there is any malfunction, inspect the parts under "Inspection item (s)".
- If the parts under "Inspection item (s)" are found to be normal, replace the front climate control unit.

Terminal Voltage Table (Reference)

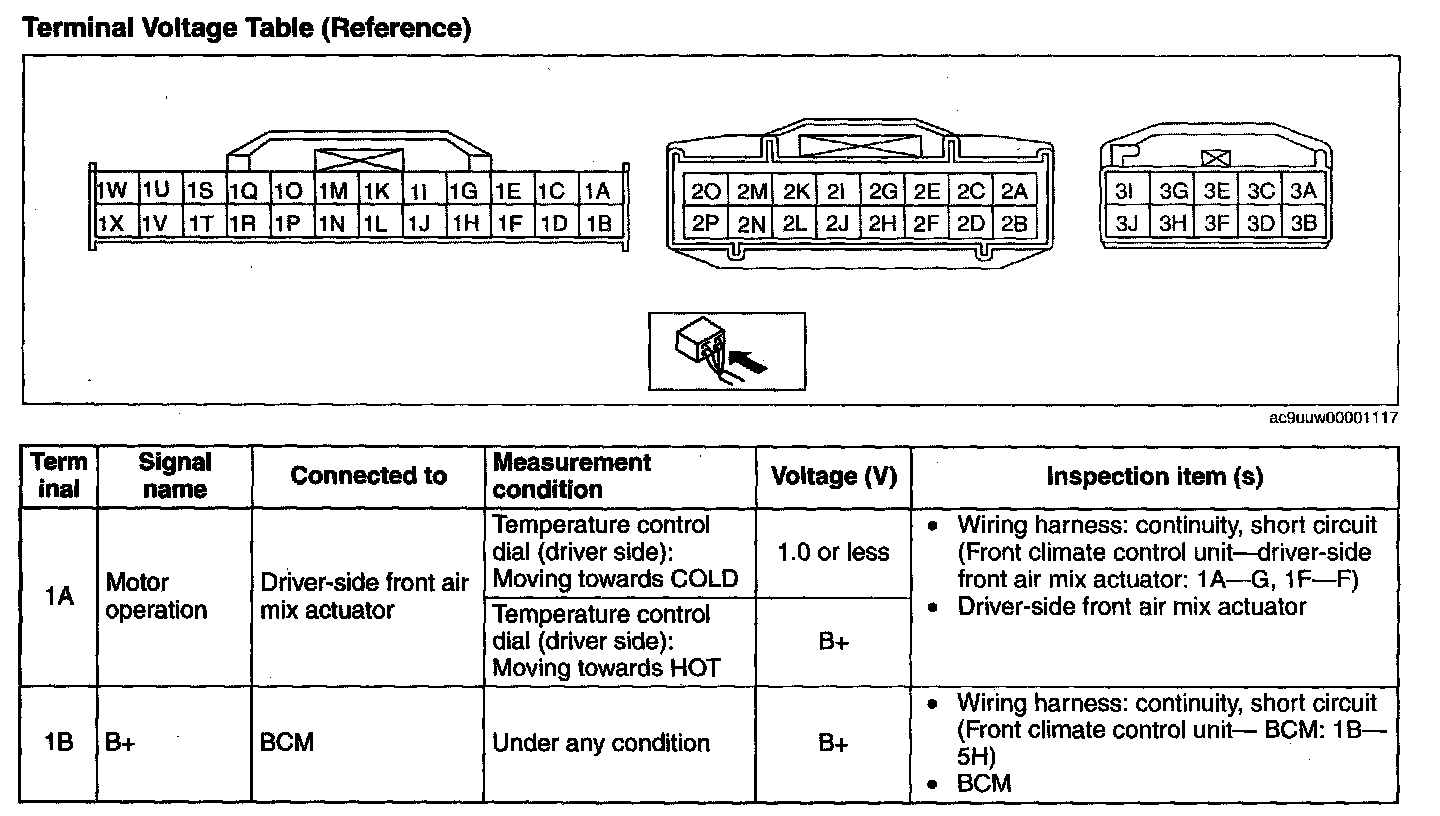

Terminal Voltage Table (Reference) (Part 1):

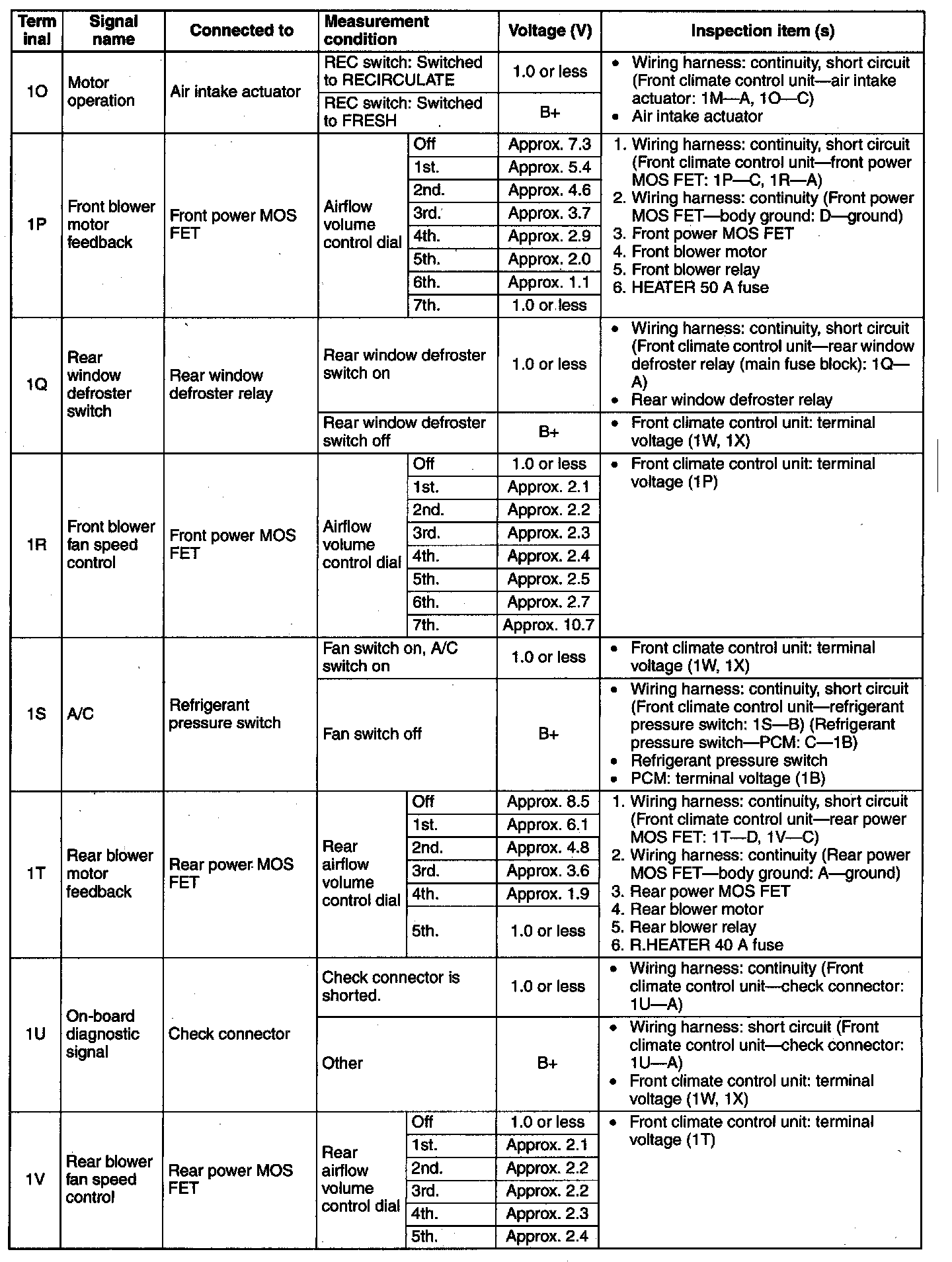

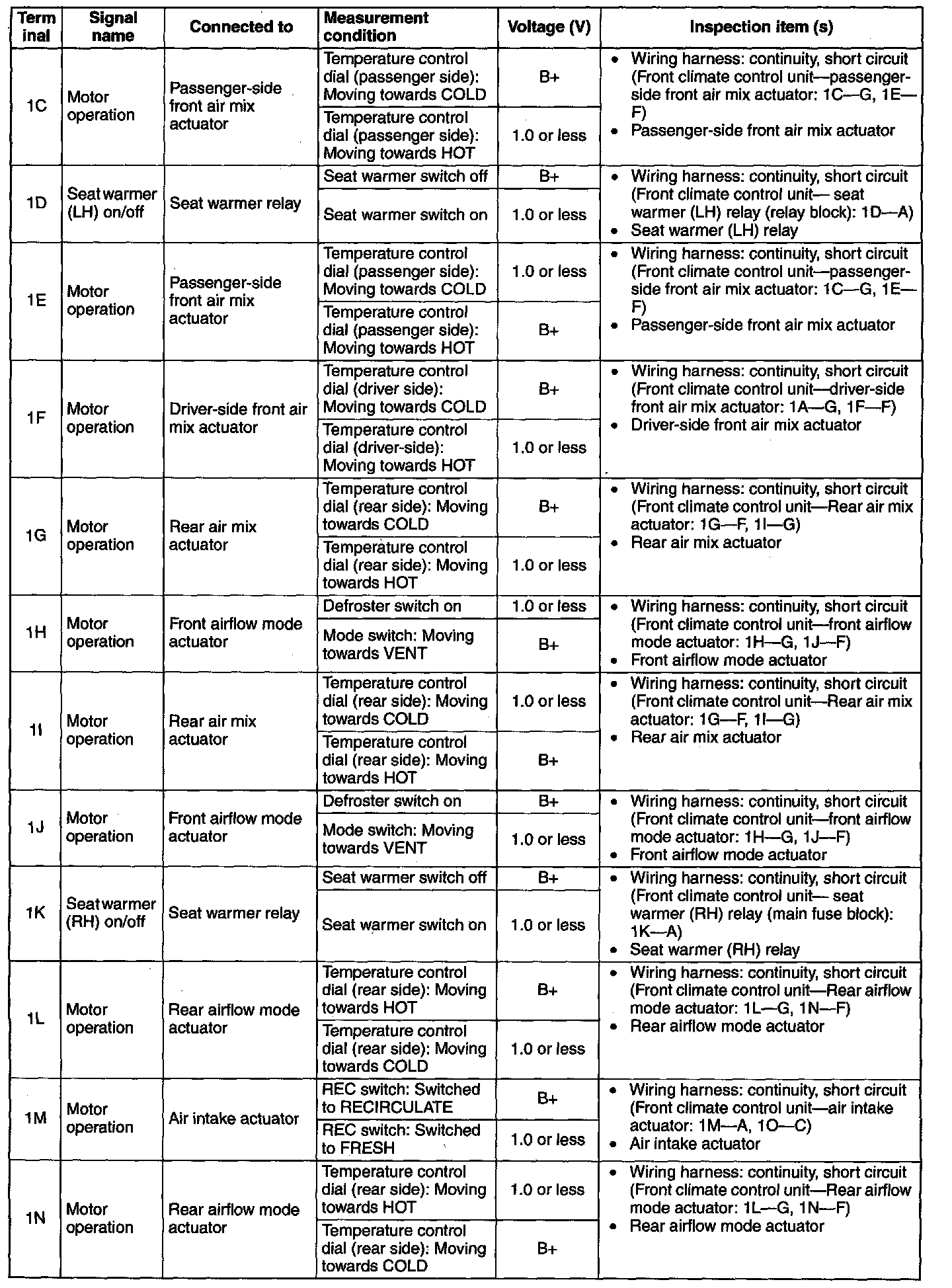

Terminal Voltage Table (Reference) (Part 2):

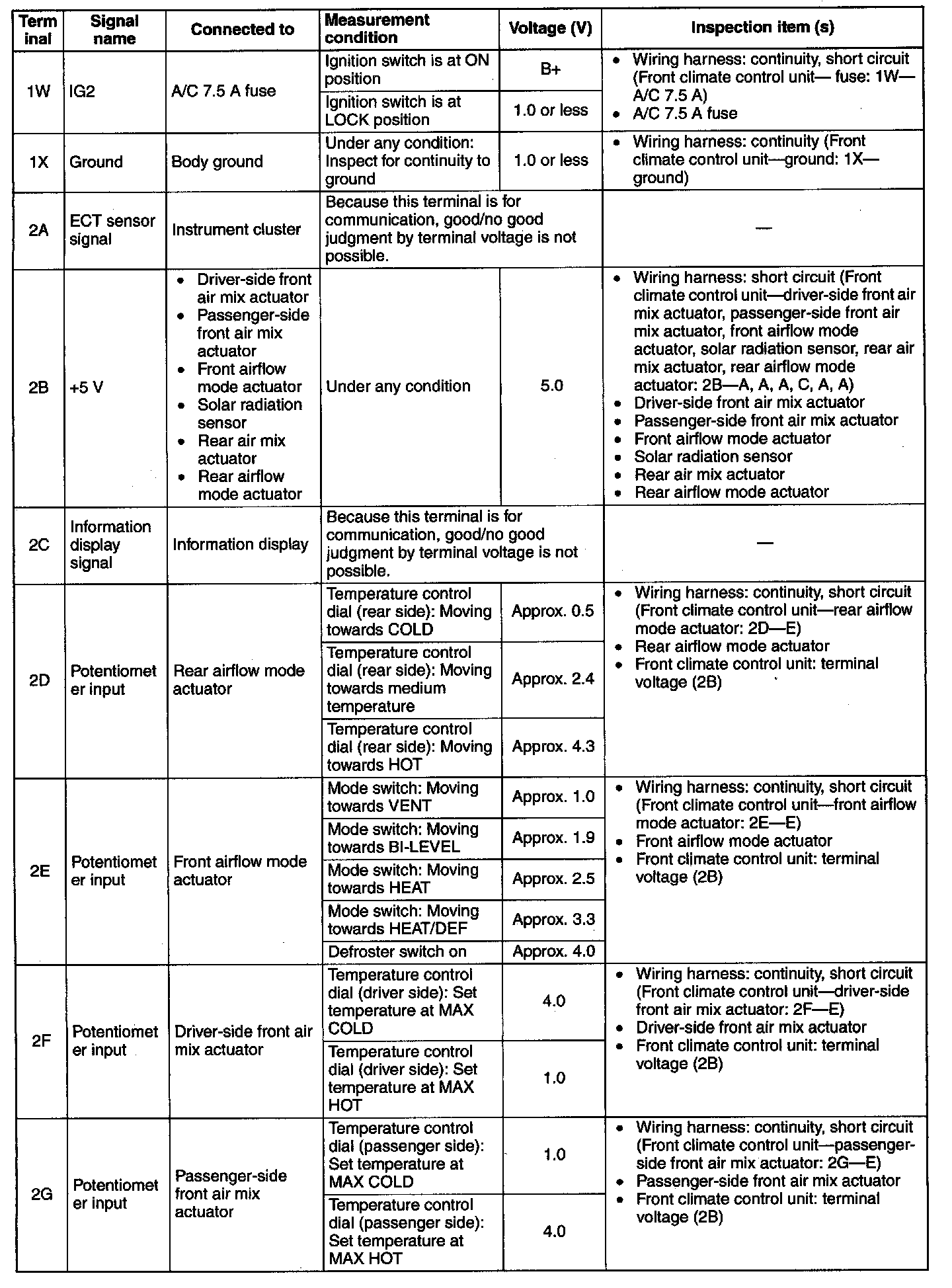

Terminal Voltage Table (Reference) (Part 3):

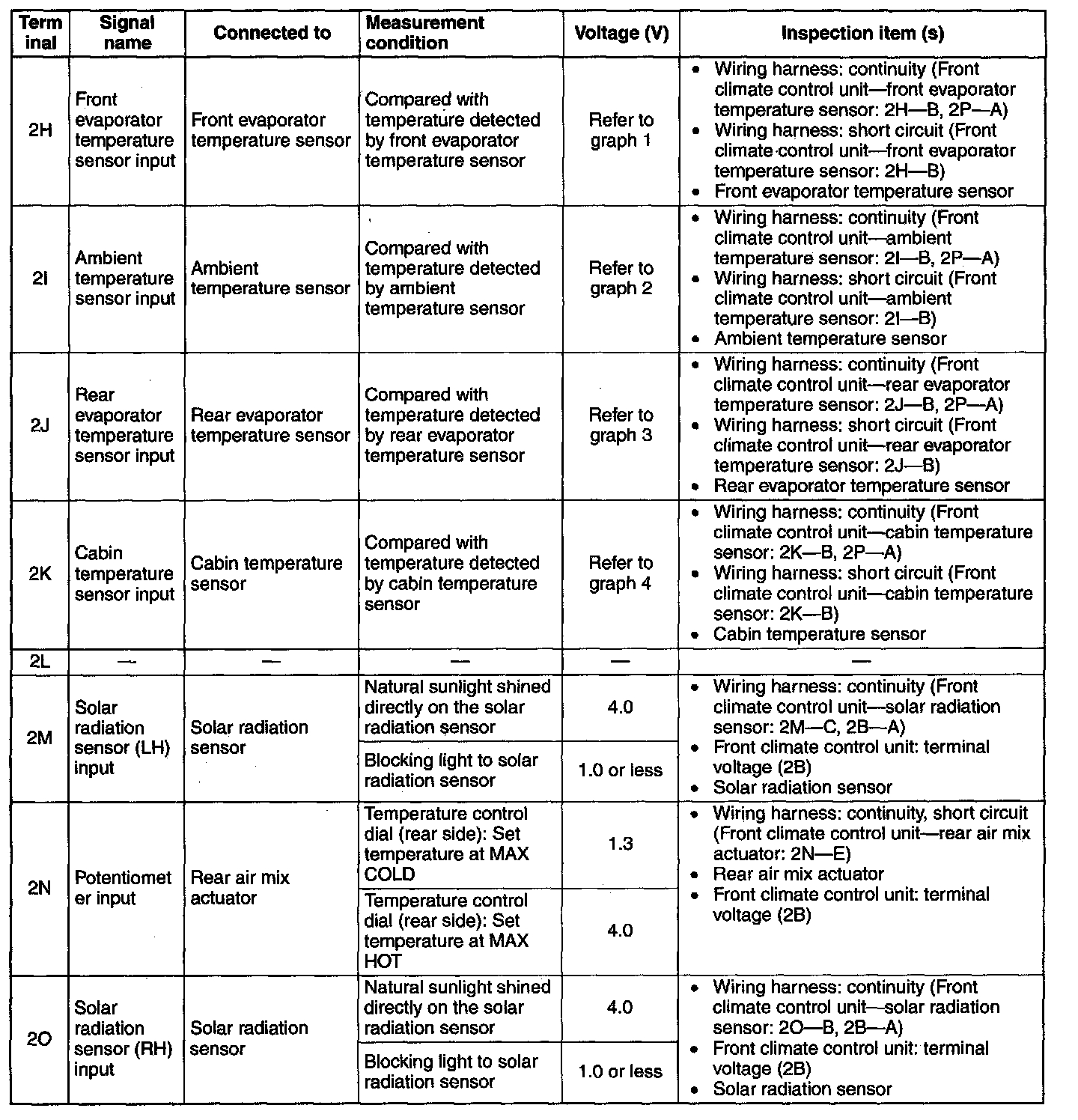

Terminal Voltage Table (Reference) (Part 4):

Terminal Voltage Table (Reference) (Part 5):

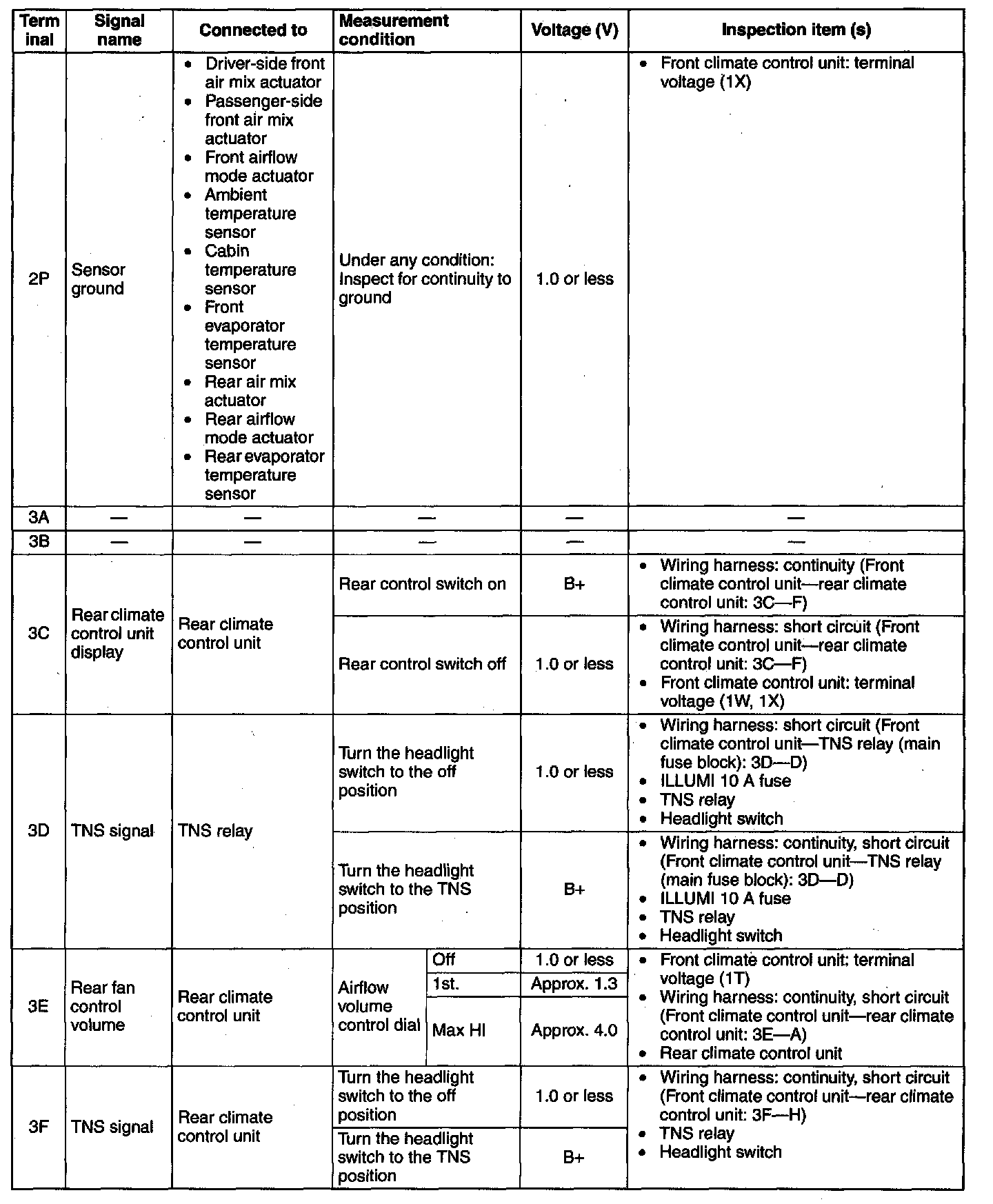

Terminal Voltage Table (Reference) (Part 6):

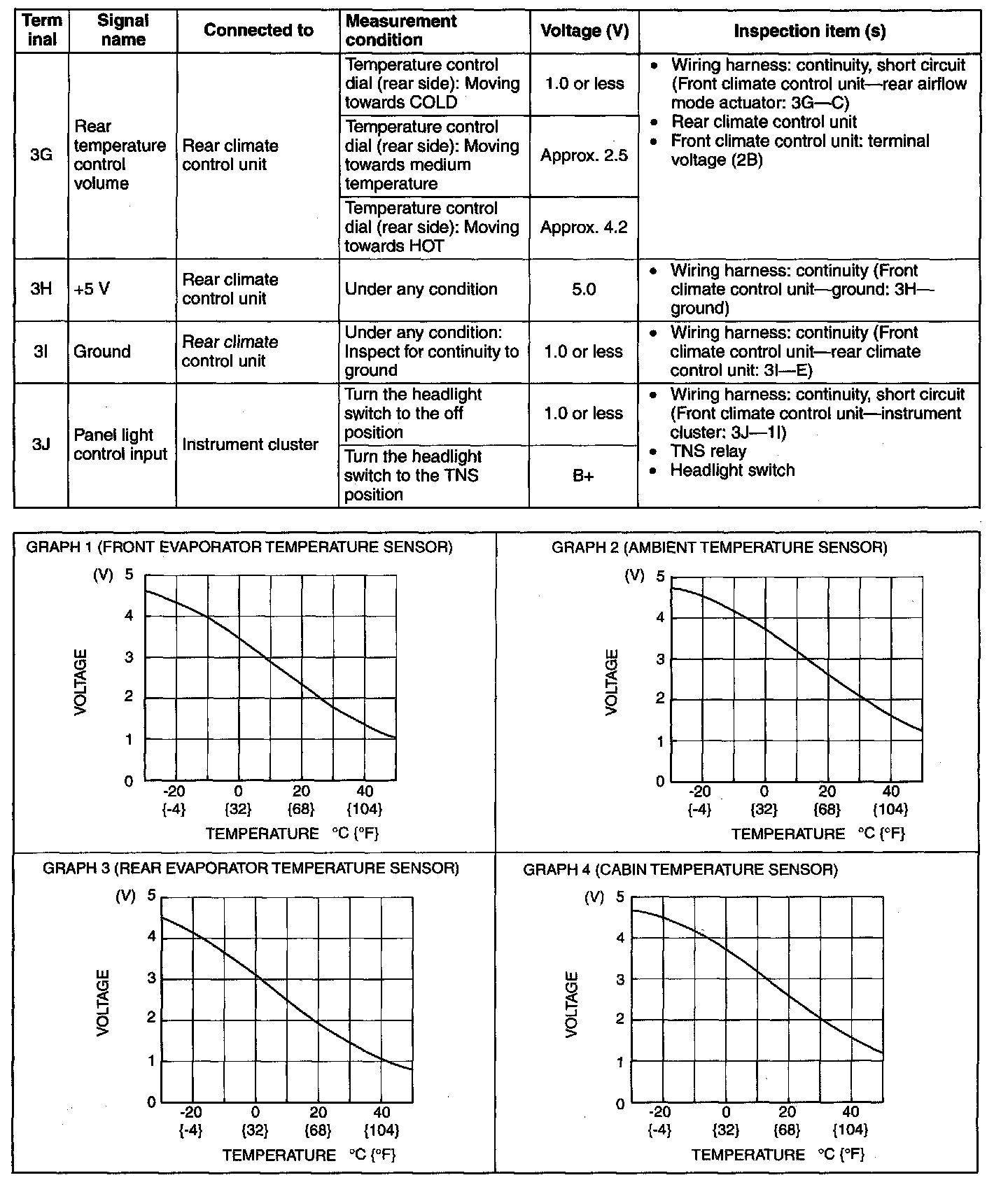

Terminal Voltage Table (Reference) (Part 7):
