REAR CLIMATE CONTROL UNIT INSPECTION

1. Connect the rear climate control unit connector.
2. Turn the ignition switch to the ON position.
3. Connect the negative (-) lead of the tester to body ground.
4. By inserting the positive (+) lead of the tester into each rear climate control unit terminal, measure the voltage according to the terminal voltage table .
- If there is any malfunction, inspect the parts under "Inspection item (s)".
- If the parts under "Inspection item (s)" are found to be normal, replace the rear climate control unit.

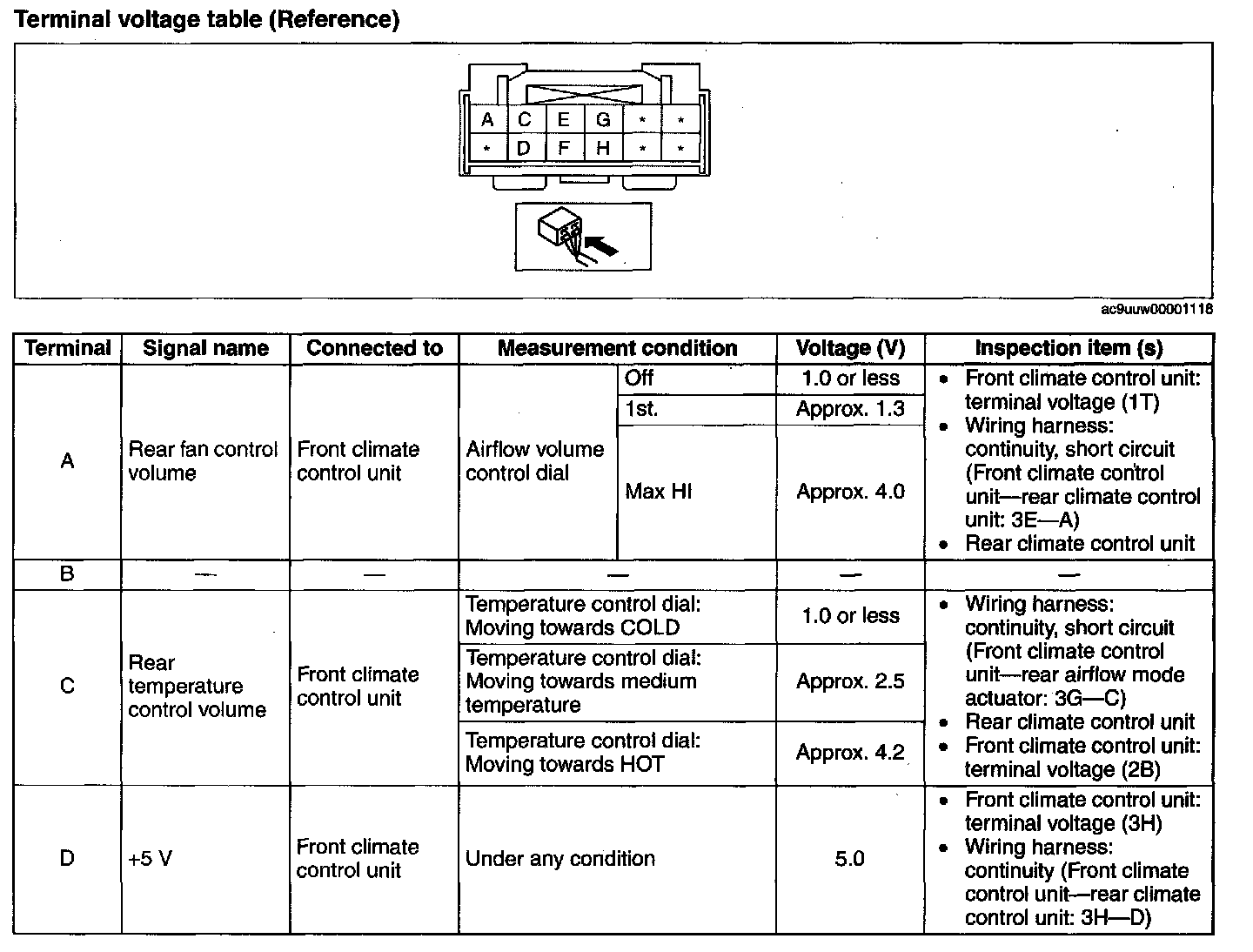

Terminal Voltage Table (Reference)

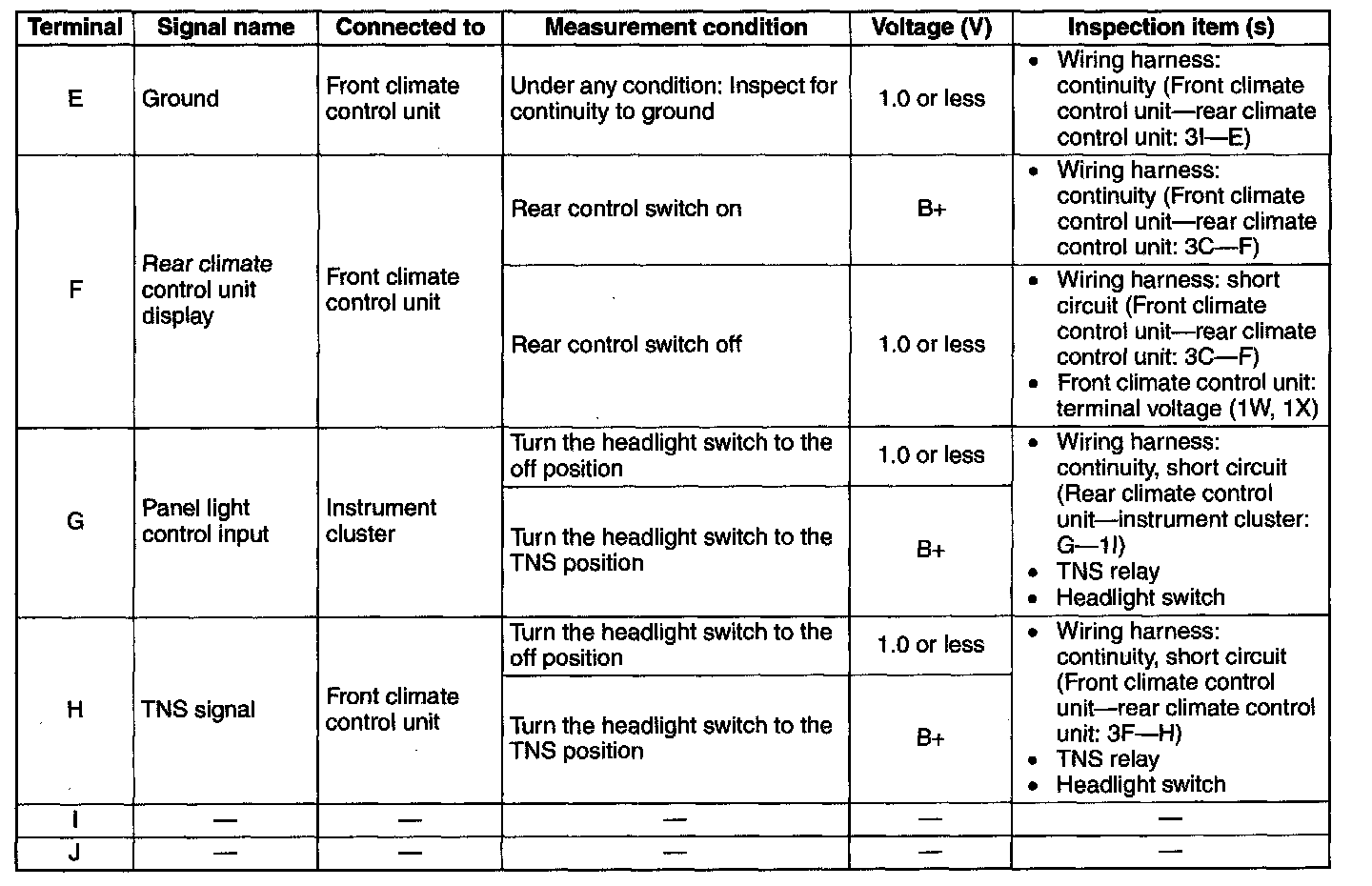

Terminal Voltage Table (Reference) (Part 1):

Terminal Voltage Table (Reference) (Part 2):
