CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
System Schematic
System Schematic

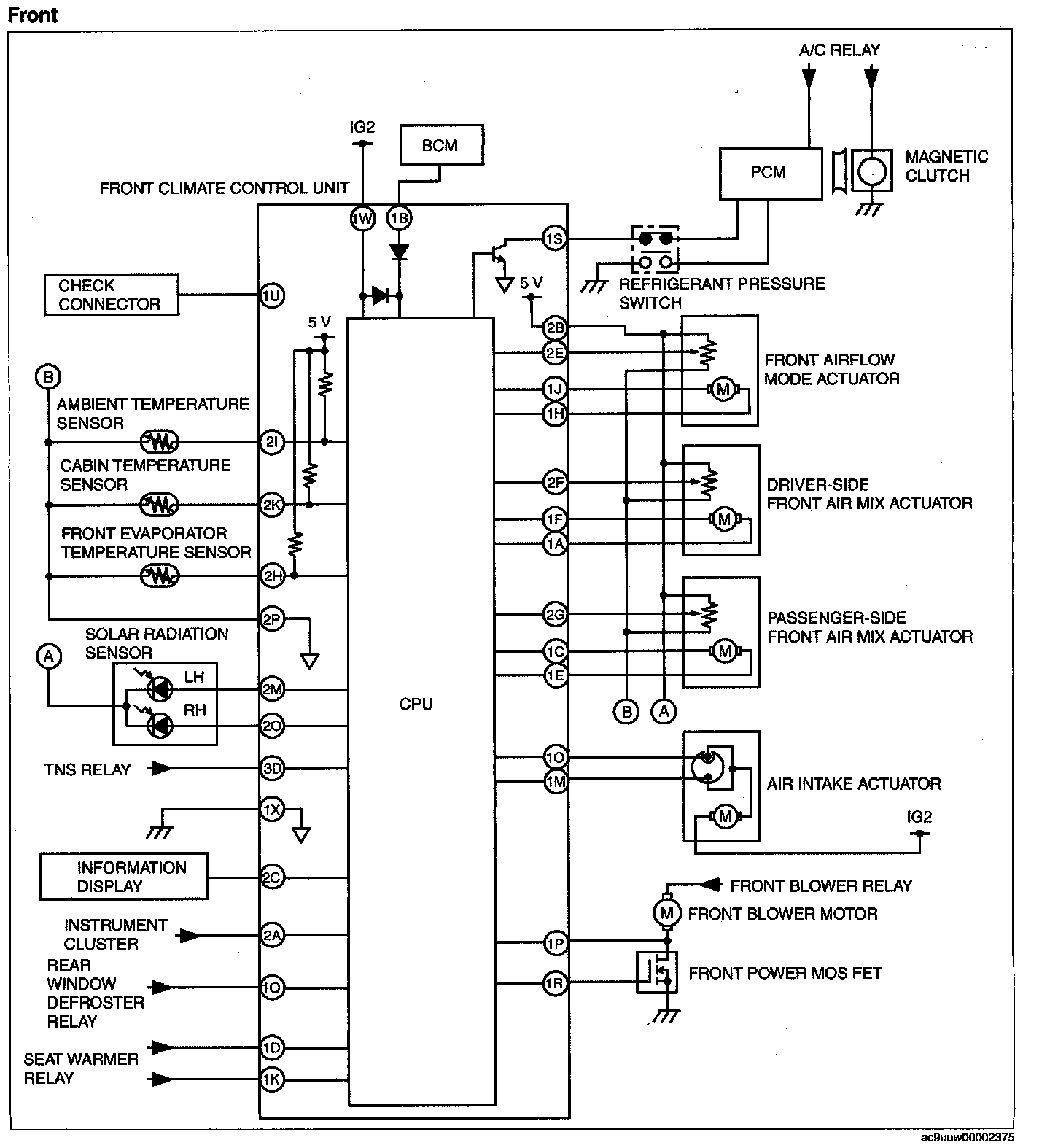

HVAC System Wiring Diagram - Front:

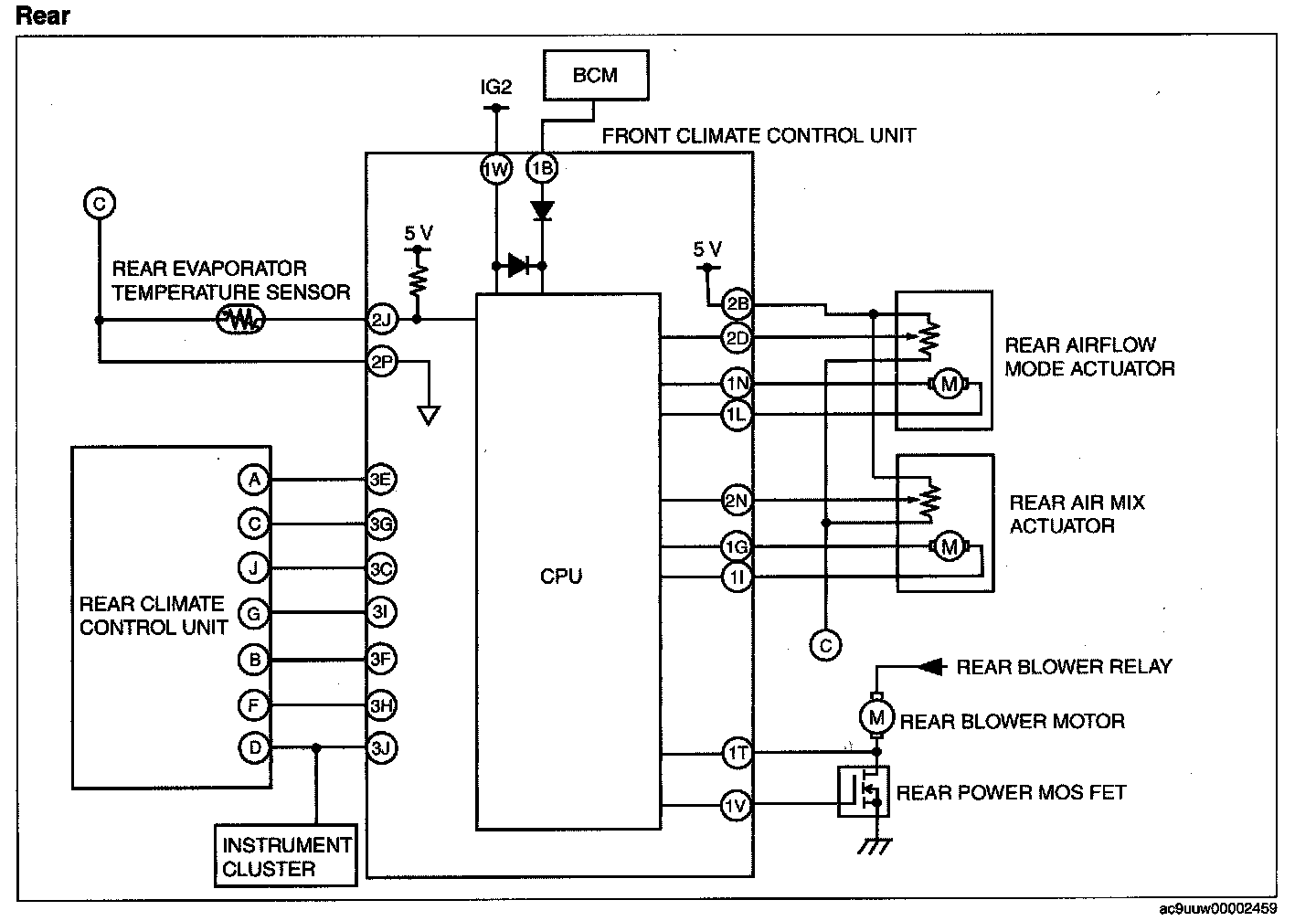

HVAC System Wiring Diagram - Rear:

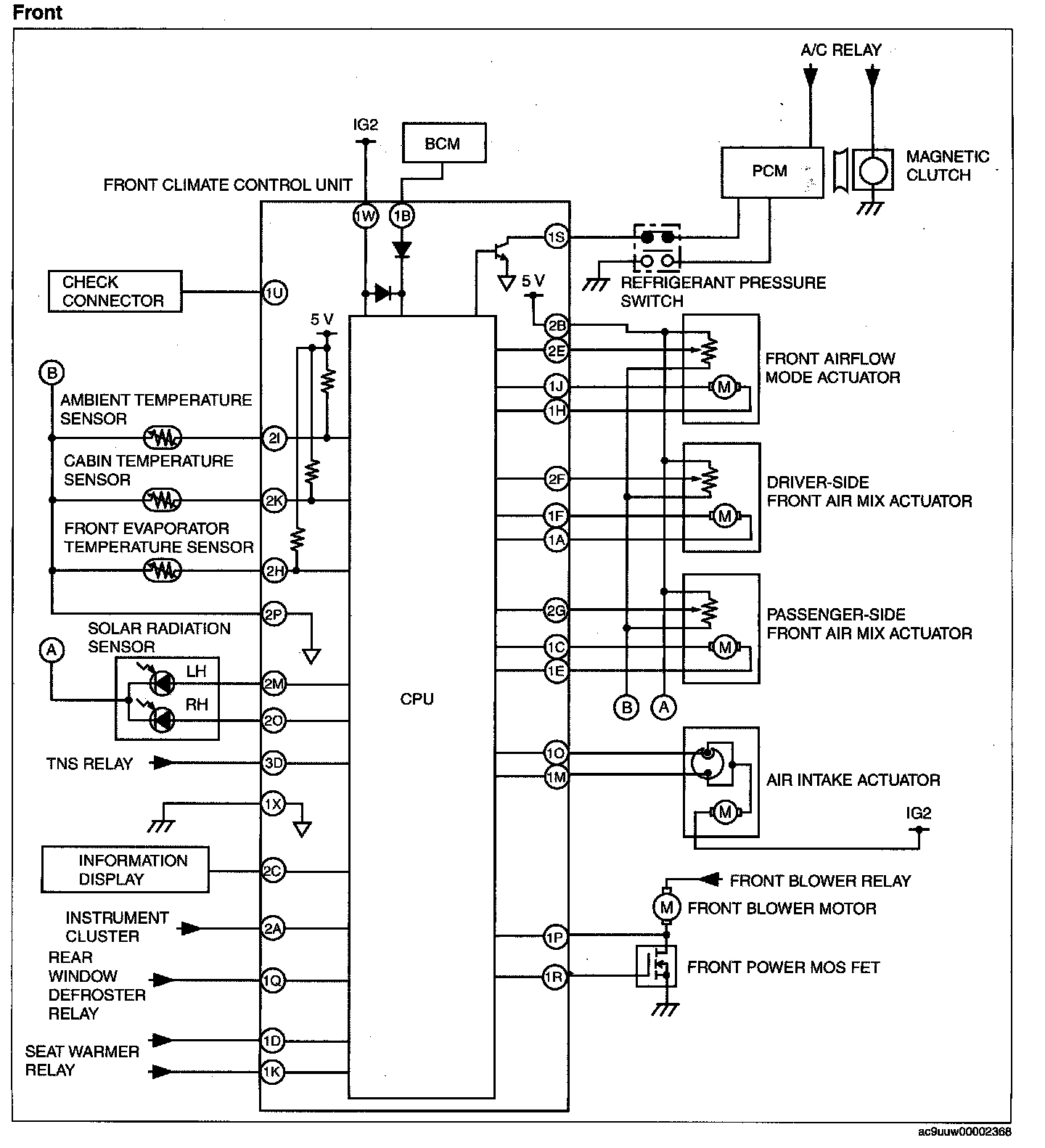

HVAC System Wiring Diagram - Front:

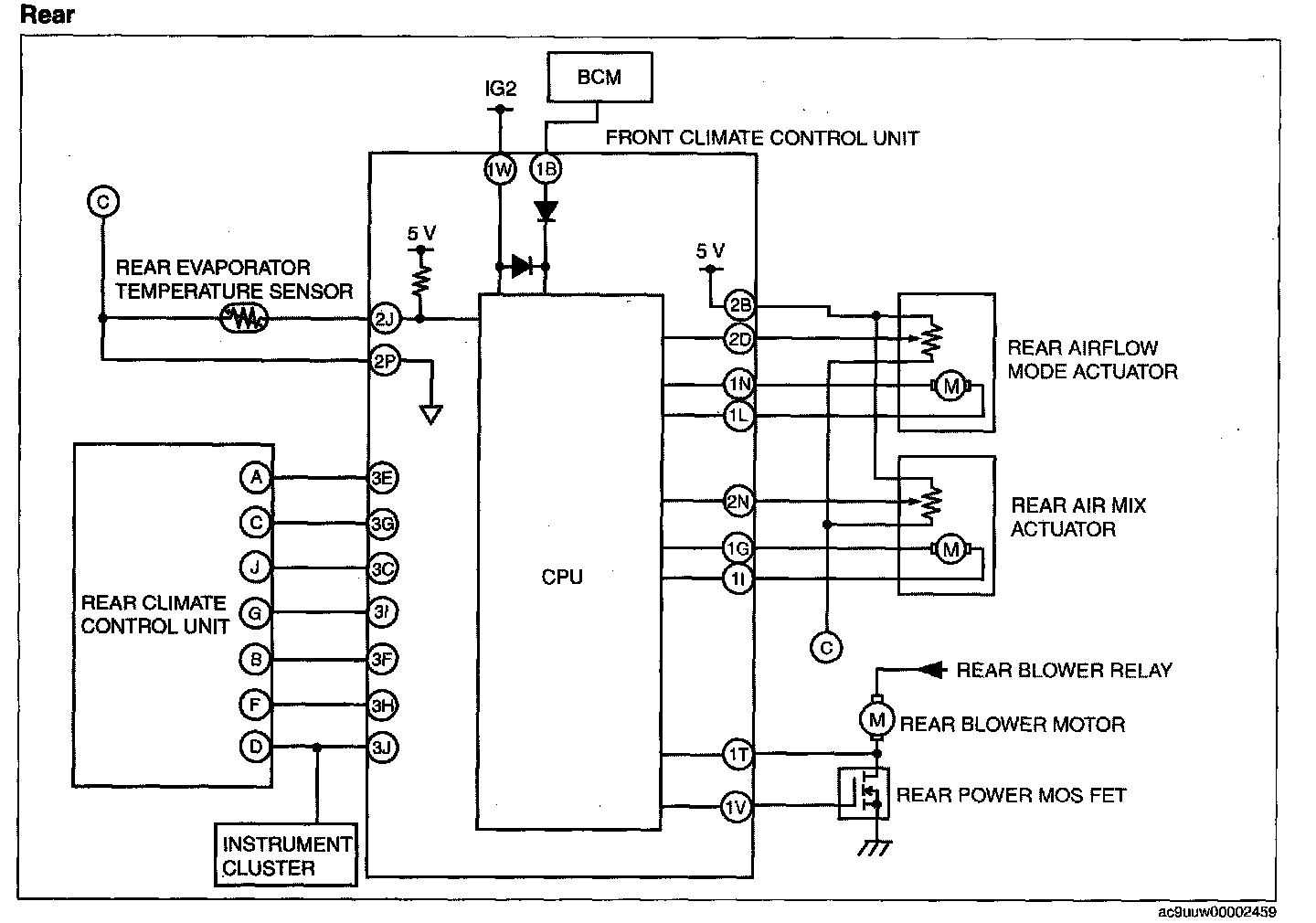

HVAC System Wiring Diagram - Rear:
