Meter Hood Removal/Installation
METER HOOD REMOVAL/INSTALLATION1. Remove the following parts:
1. Decoration panel
2. Front console box mat
3. Indicator panel
4. Front console box
5. Center panel
6. Upper column cover

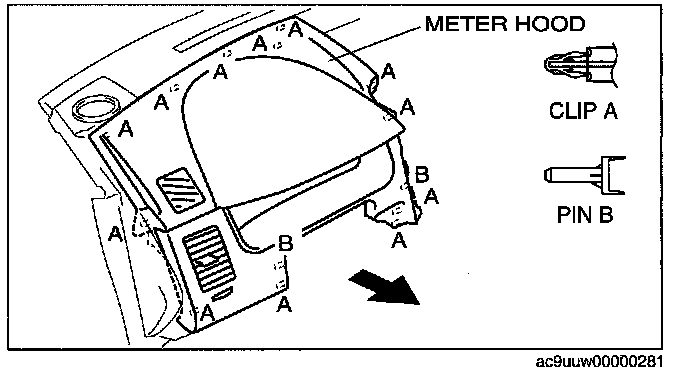

2. Detach clips A and pins B by pulling them in the direction of the arrow.
3. Remove the meter hood.
4. Install in the reverse order of removal.
