Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Locations >> Component Locations

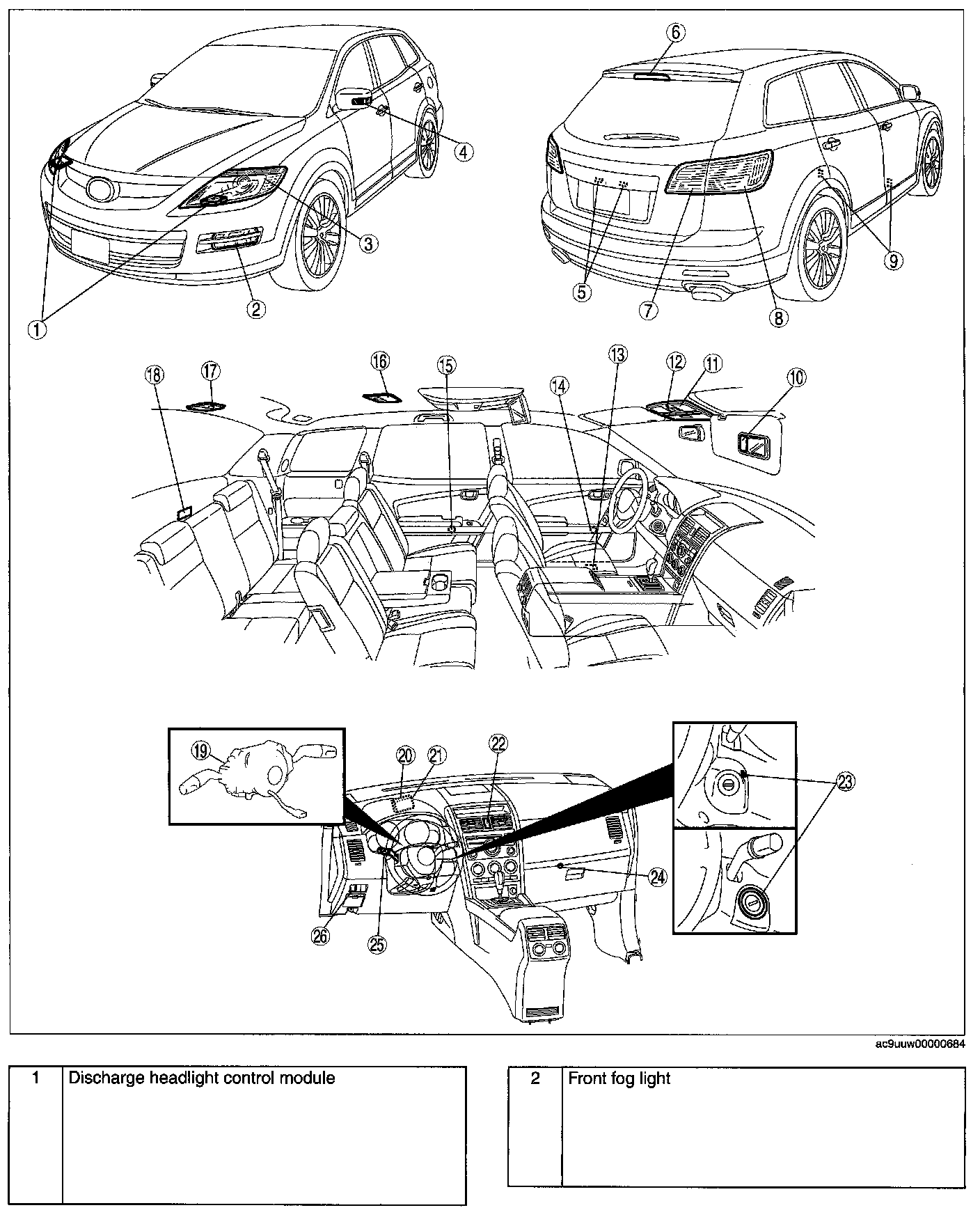

Component Locations



Lighting Systems Location Index (Part-1):
