Auto Light/Wiper Control Module
AUTO LIGHT/WIPER CONTROL MODULE INSPECTIONTerminal 1A-1G:

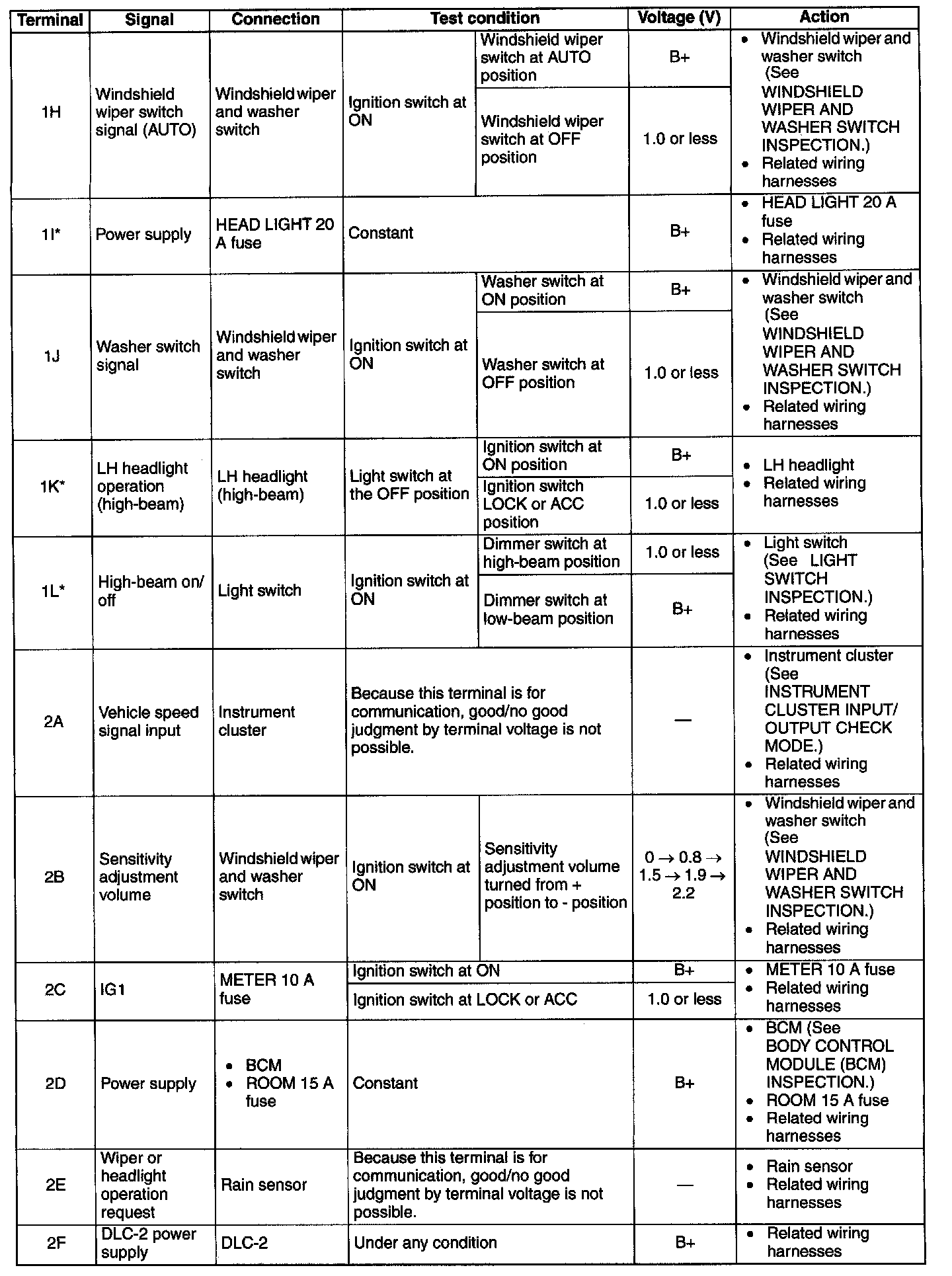

Terminal 1H-2F:

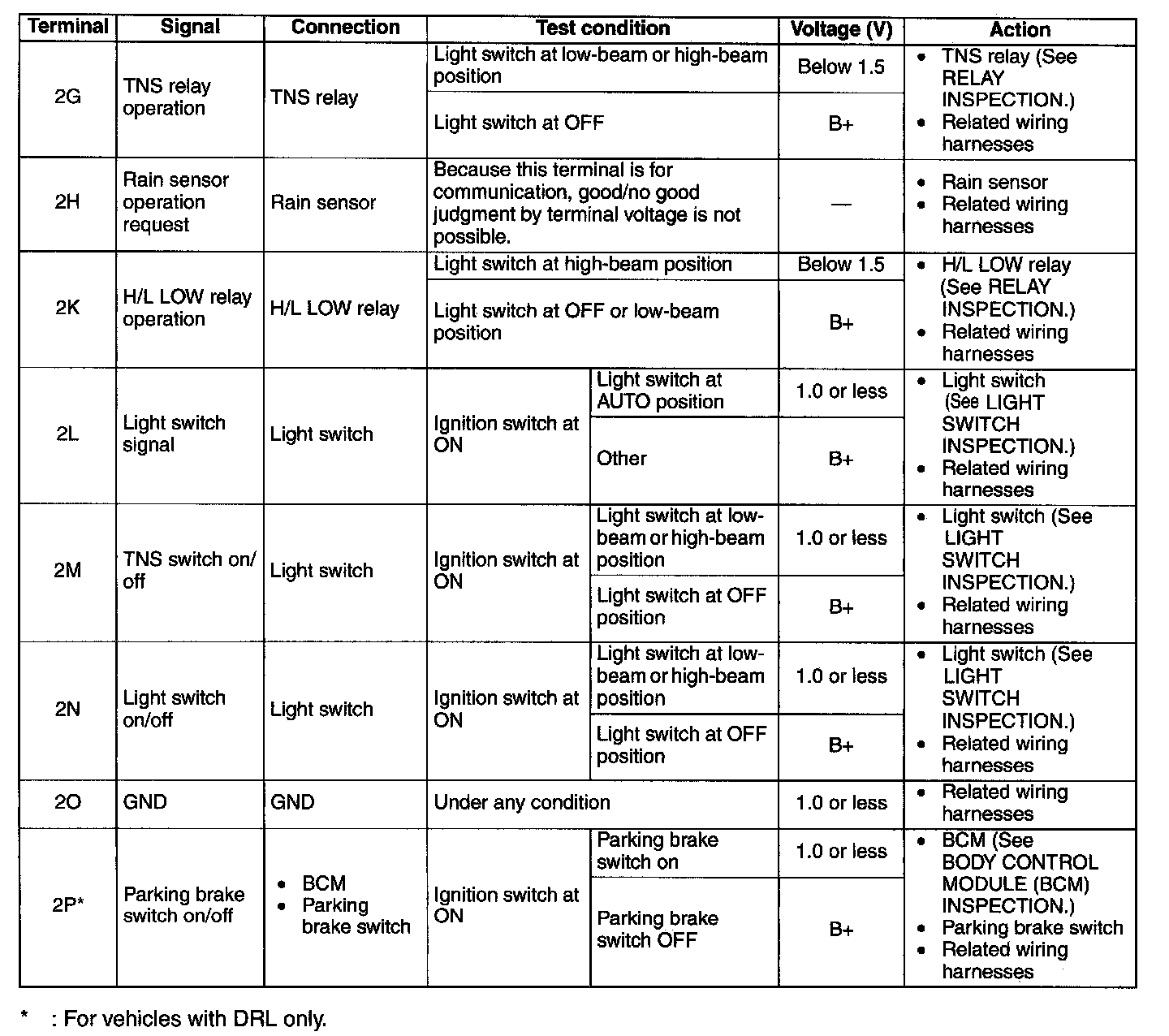

Terminal 2G-2P:
1. Measure the voltage at the auto light/wiper control module terminals as indicated above.
1. Measure the voltage at the auto light/wiper control module terminals as indicated above.
