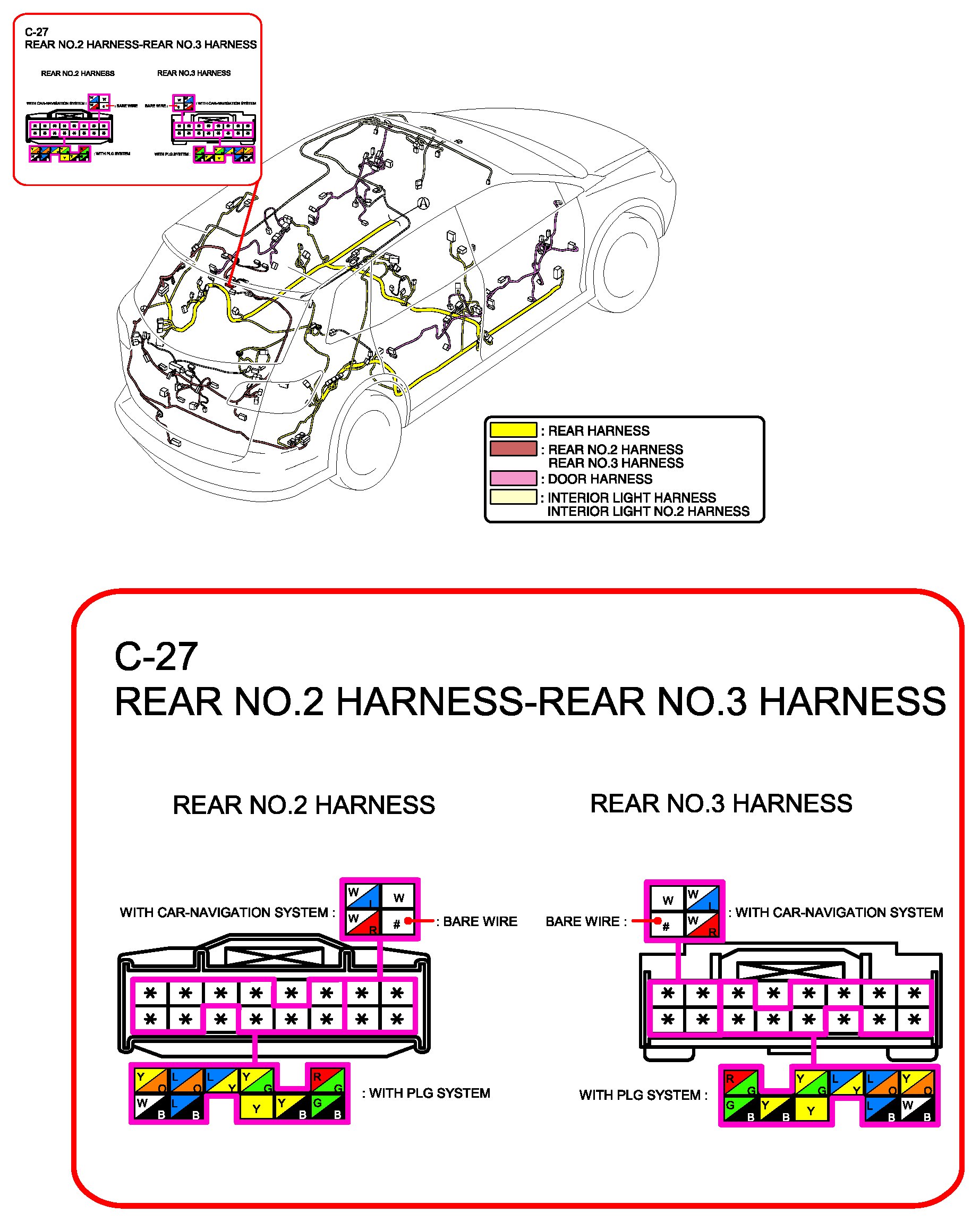

C-27 (Rear No.2 Harness-Rear No.3 Harness)
C-27 (Rear No.2 Harness-Rear No.3 Harness)
C-27 (Rear No.2 Harness-Rear No.3 Harness):
