Steering Angle Adjustment
Steering Angle Adjustment1. Jack up the front of the vehicle and support it on safety stands.
2. Loosen the locknut of the tie-rod end.
3. Remove the rack boot clamp.
4. Rotate the tie rod and adjust the steering angle.
Note:
^ The travel distance of the right and left tie rods should be the same.

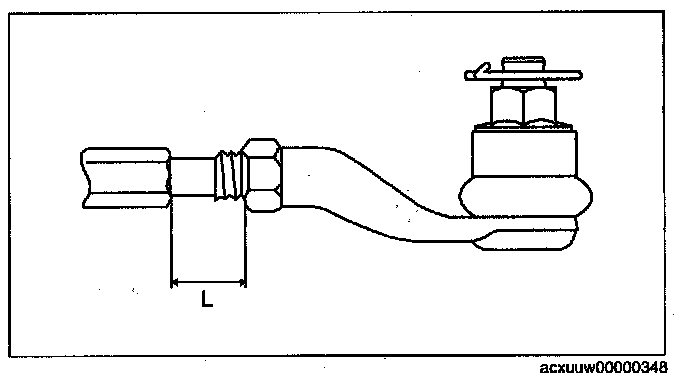

5. Rotate the tie rod and adjust so that the length L shown in the figure is within the specification.
Dimension L (reference value)
33.9 - 43.9 mm (1.34 - 1.72 in)
Difference between left and right
3 mm (0.12 in) or less
6. Tighten the locknut of the tie-rod end.
Tightening torque
68.6 - 98.0 Nm (7.00 - 9.99 kgf-m, 50.6 - 72.2 ft-lbf)
7. Correct the rack boot twists.
8. Install and fix the rack boot clamp.
9. After adjusting the steering angle, always inspect and adjust the total toe-in.
