Front Heated Oxygen Sensor (HO2S) Removal/Installation

FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7]

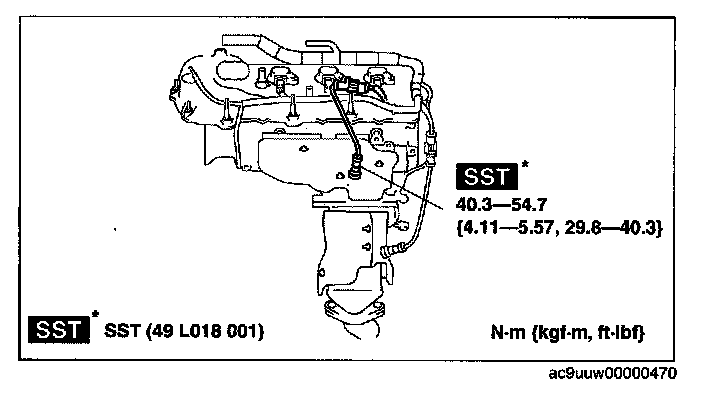

HO2S (LH) Removal/Installation
1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Disconnect the HO2S (LH) connector.

NOTE: If necessary, lubricate the HO2S with Penetrating and Lock Lubricant loosen to aid in removal.




4. Remove the HO2S (LH) using the SST.

NOTE: Apply a light coat of anti-seize lubricant to the threads of the HO2S.

5. Install in the reverse order of removal.

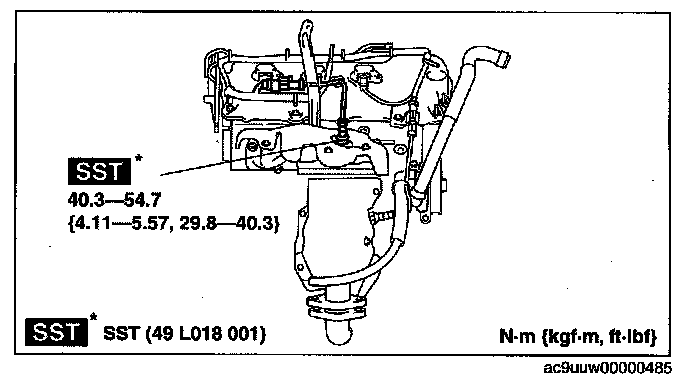

HO2S (RH) Removal/Installation
1. Disconnect the negative battery cable.
2. Remove the following part for easier access.
1. Remove the cowl panel.

3. Disconnect the HO2S (RH) connector.

NOTE: If necessary, lubricate the HO2S with Penetrating and Lock Lubricant loosen to aid in removal.




4. Remove the HO2S (RH) using the SST.

NOTE: Apply a light coat of anti-seize lubricant to the threads of the HO2S.

5. Install in the reverse order of removal.
