Intake-Air System Vacuum Hose Routing Diagram
Intake-Air System Vacuum Hose Routing Diagram

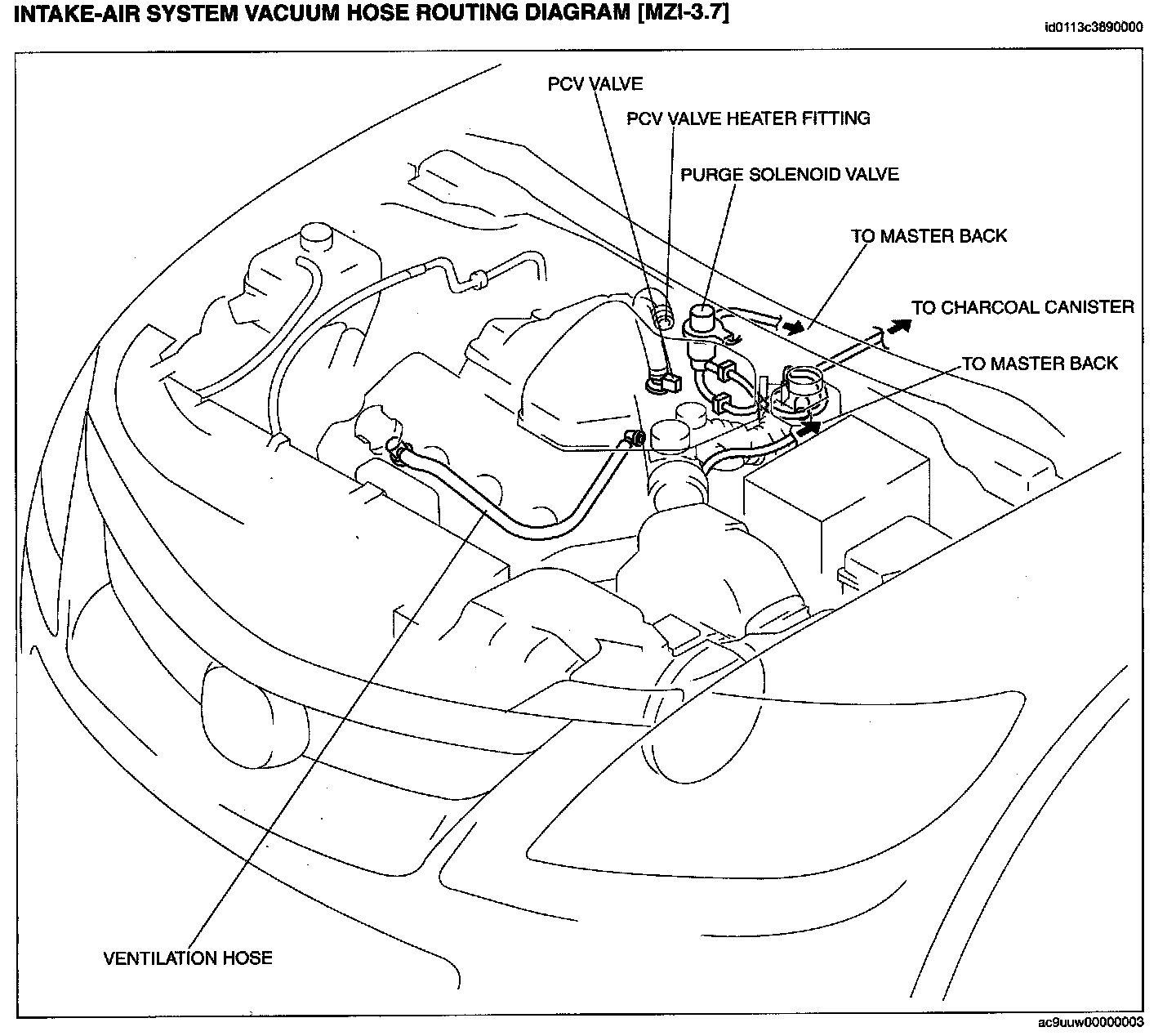

Intake-Air System Vacuum Hose Routing Diagram:
