Emission Control Systems: Locations

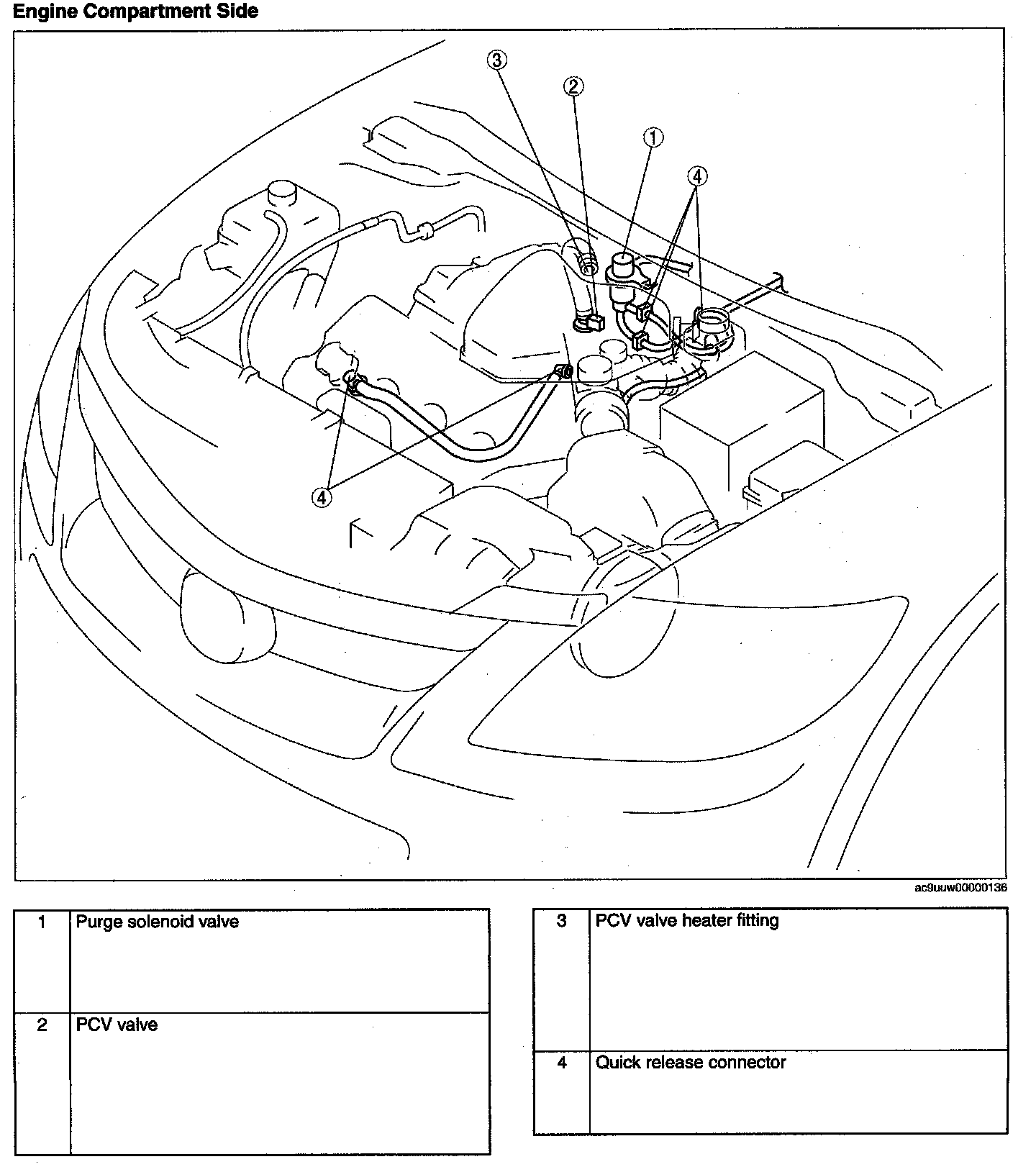

Engine Compartment Side:

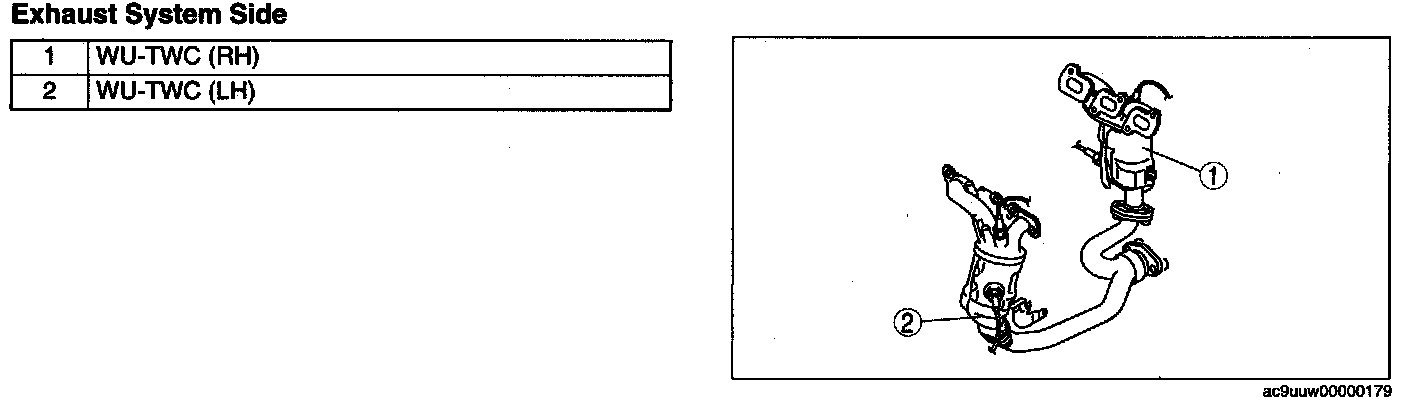

Exhaust System Side:

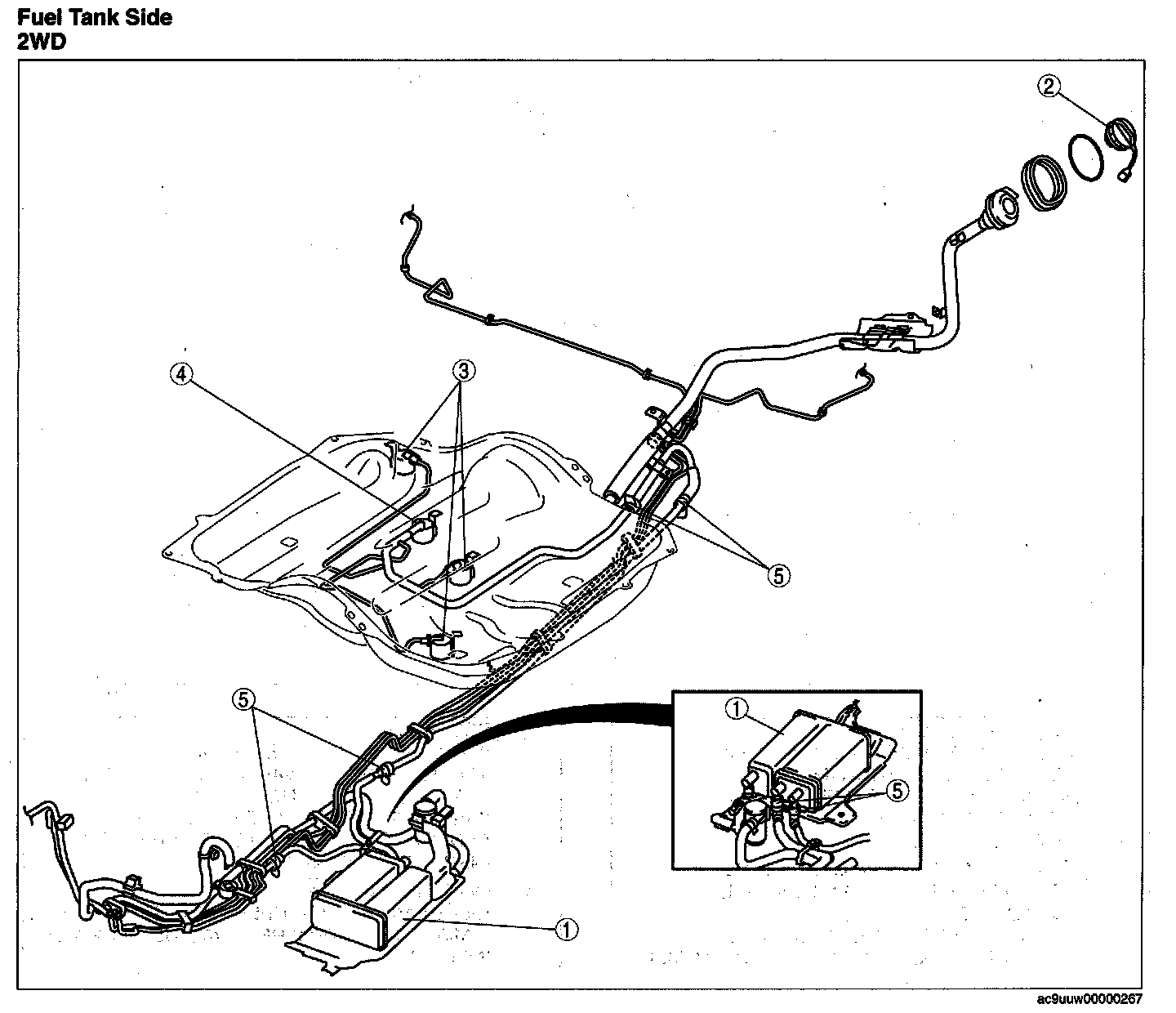

Fuel Tank Side 2WD:
