Ignition Coil: Testing and Inspection

IGNITION COIL INSPECTION [MZI-3.7]

Secondary Coil Resistance Inspection
1. Remove the ignition coils. (See IGNITION COIL INSPECTION [MZI-3.7].)

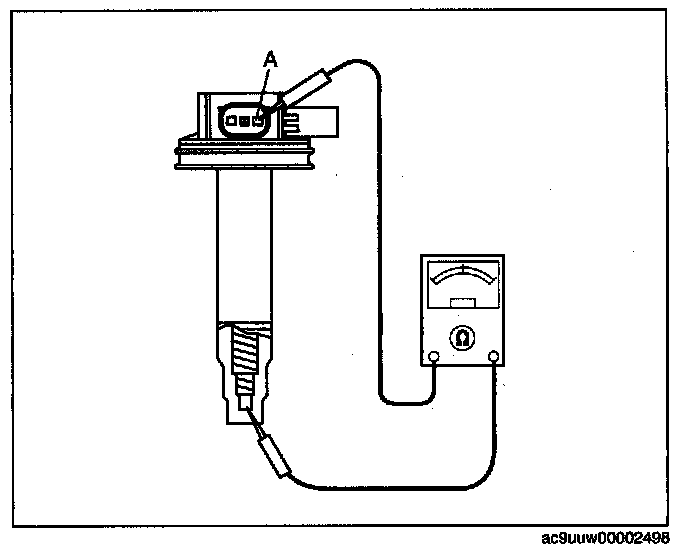

2. Using a tester, measure the resistance between the ignition coil terminal A and ignition coil boot socket.
- If not within the specification, replace the ignition coil.

Ignition coil secondary coil resistance
5-6 kilohms
