Mazda
>>
2008
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
System Schemetic
System Schemetic

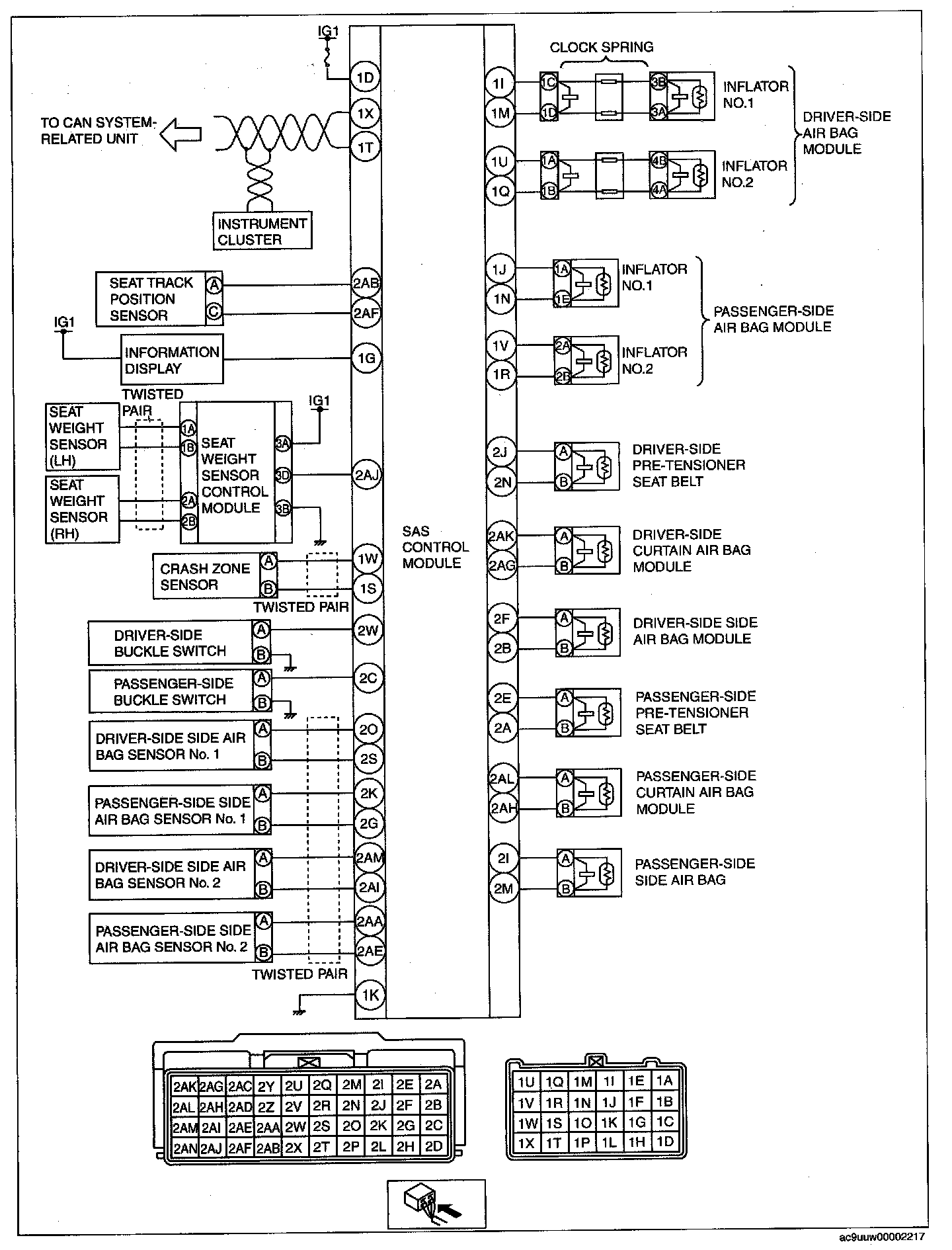

Air Bag System Wiring Diagram (On-Board Diagnostic):

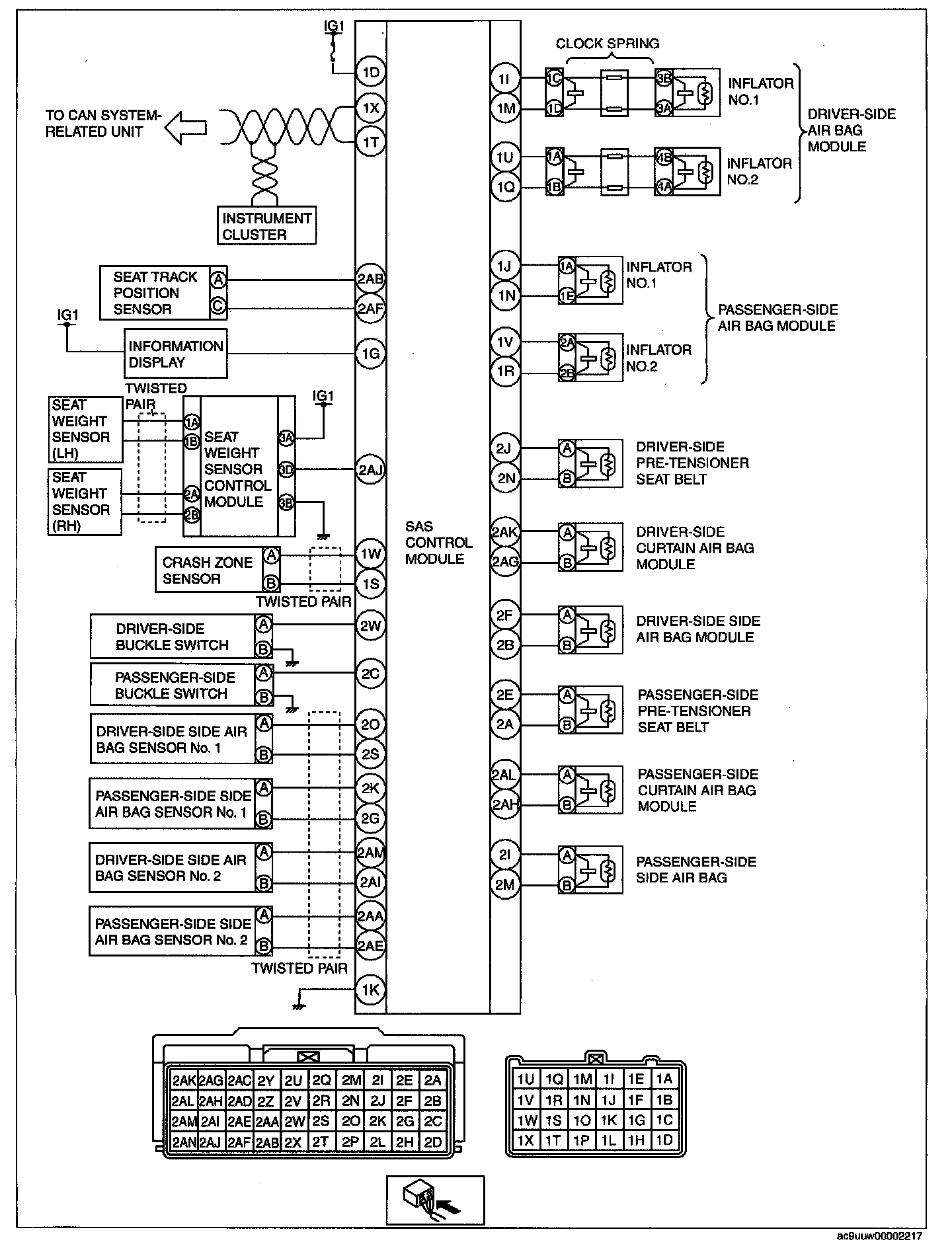

Air Bag System Wiring Diagram (Symptom Troubleshooting):
