Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2008
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
PID/Data Monitor Table [Restraint Control Module (RCM)]
PID/Data Monitor Table [Restraint Control Module (RCM)]

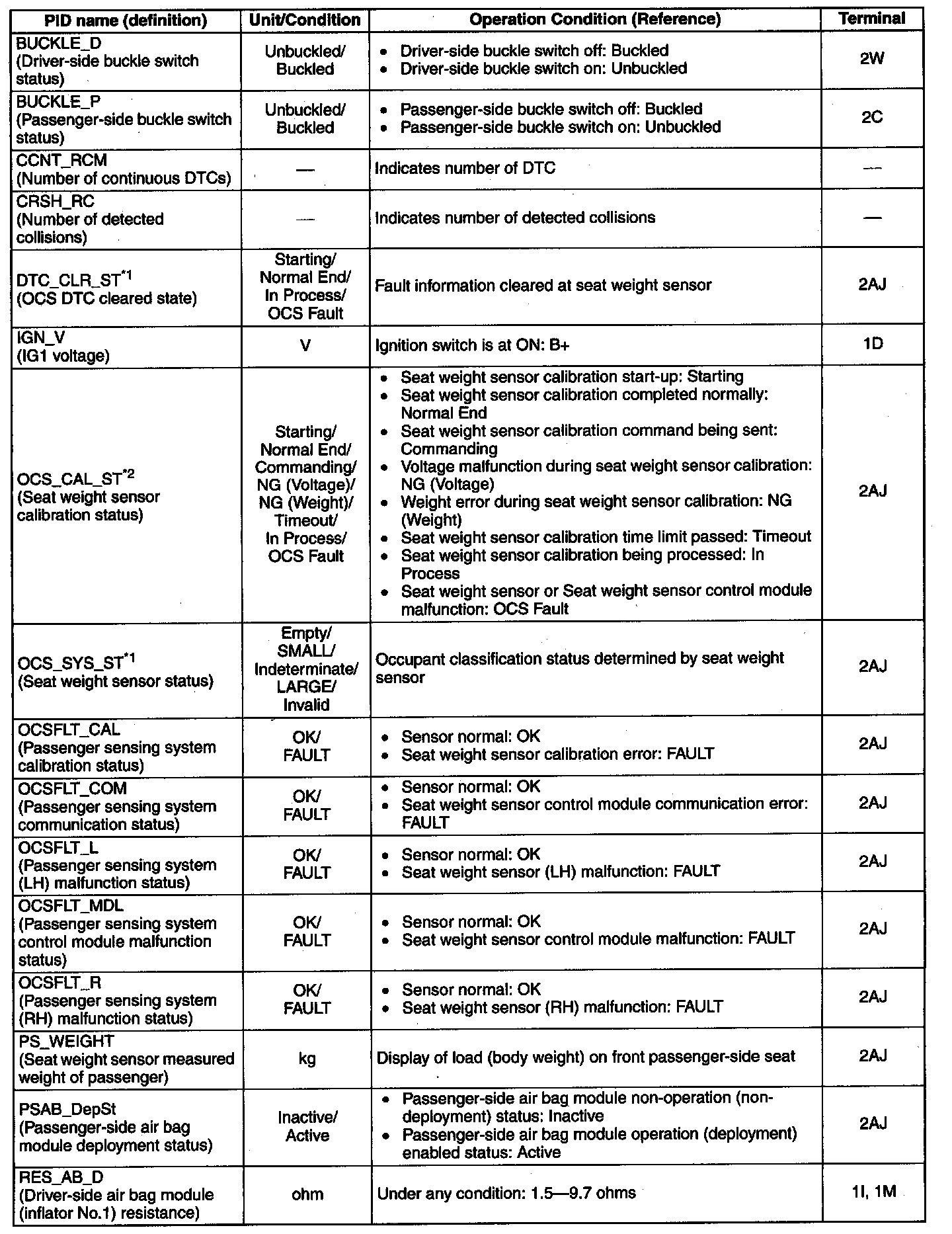

PID/Data Monitor Table (Part 1):

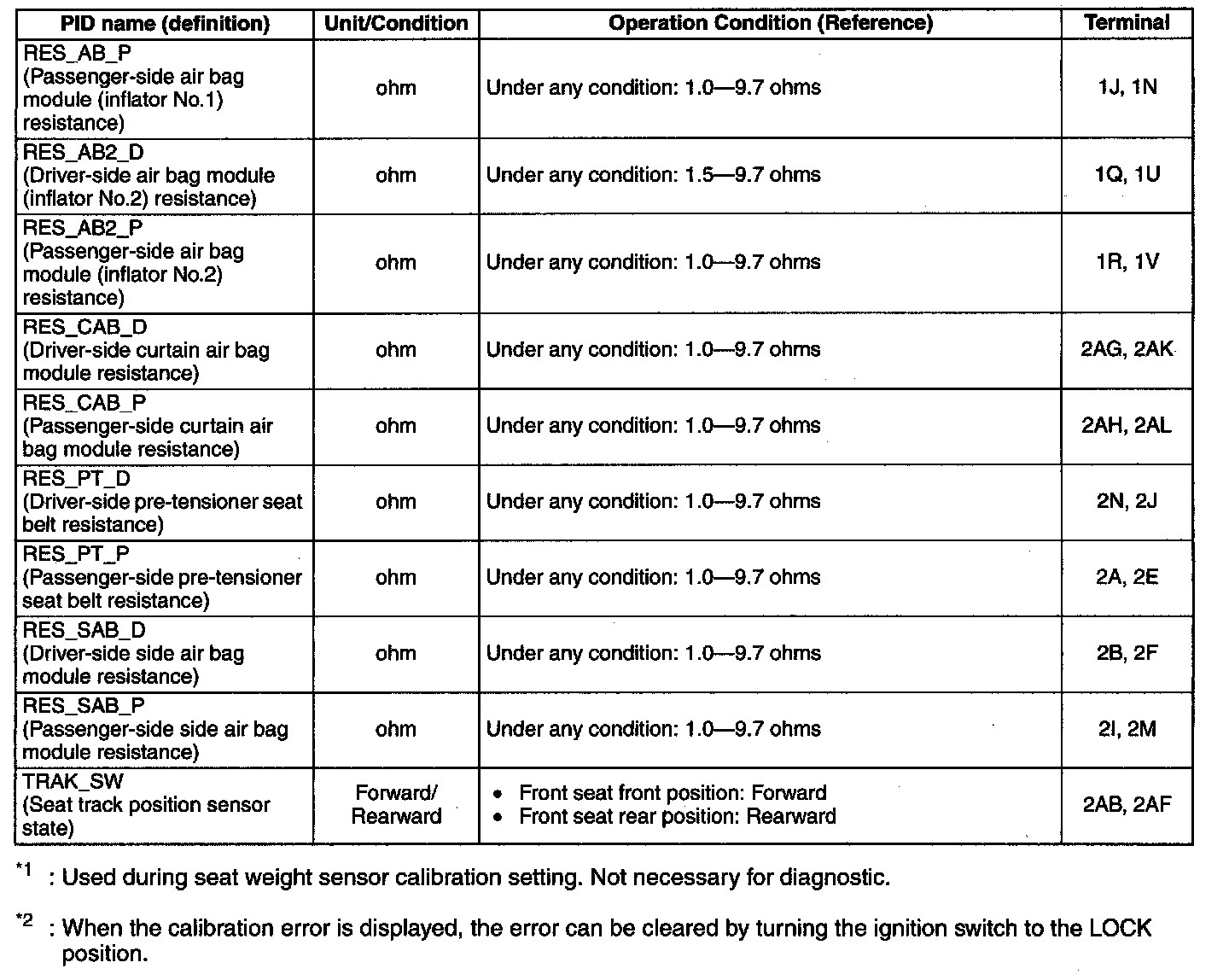

PID/Data Monitor Table (Part 2):
