Coolant

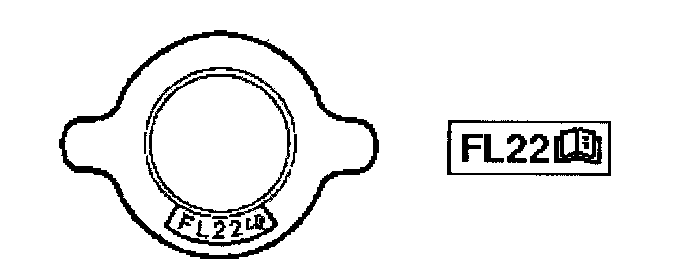

NOTE: If the FL22 mark is shown on or near the cooling system cap, use FL22 type engine coolant.

NOTE: FL22 type engine coolant is shipped as a diluted solution. Use the solution as is when replacing coolant.

Coolant FL22

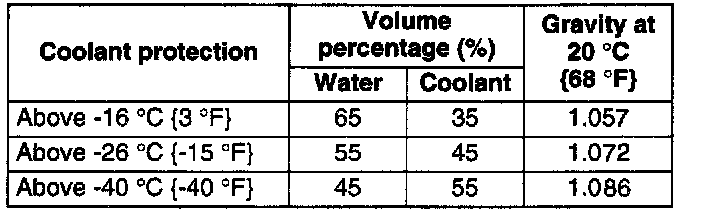

Non-FL22 Solution Mixture Percentages:
