Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection

Starting System: Testing and Inspection

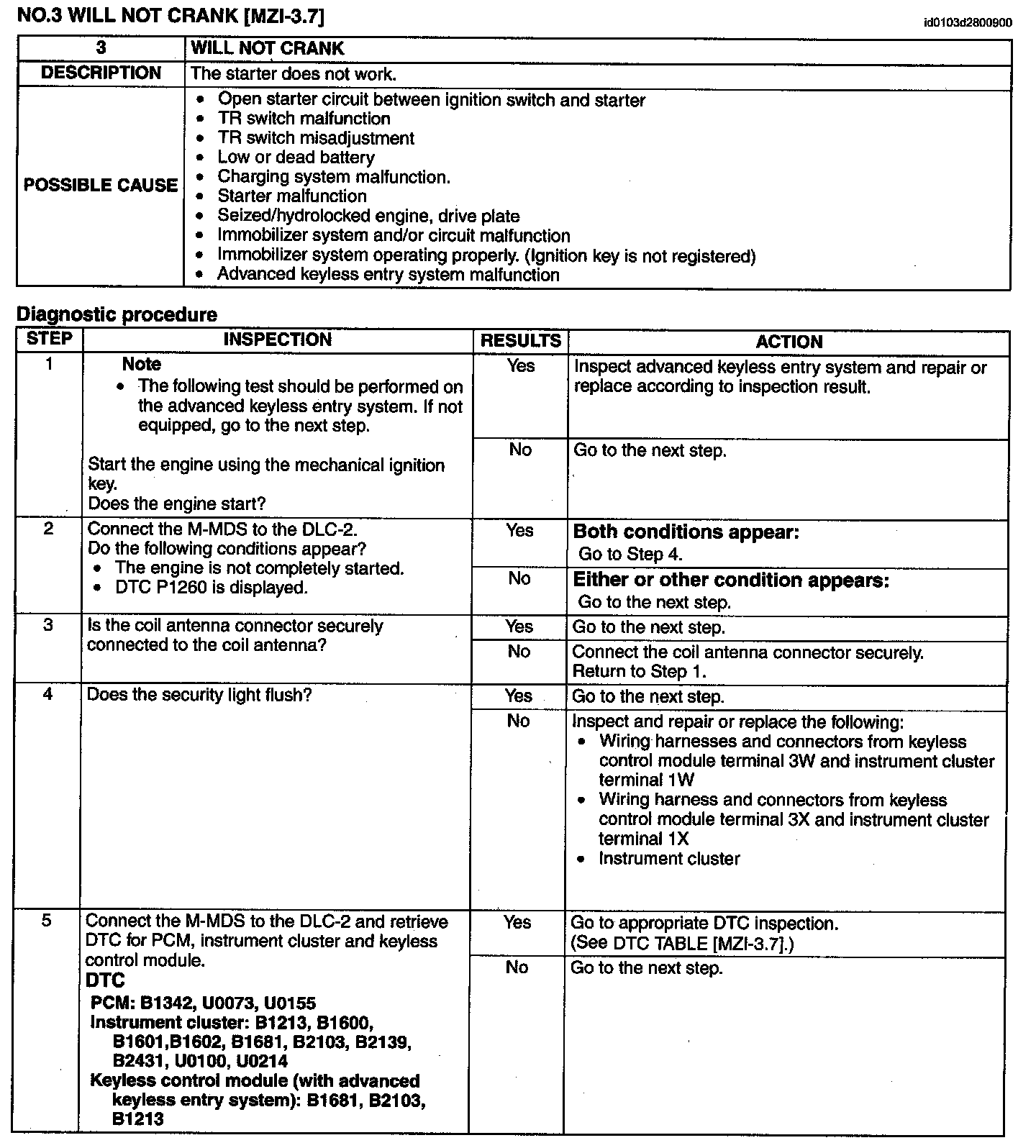

Step 1-Step 5:

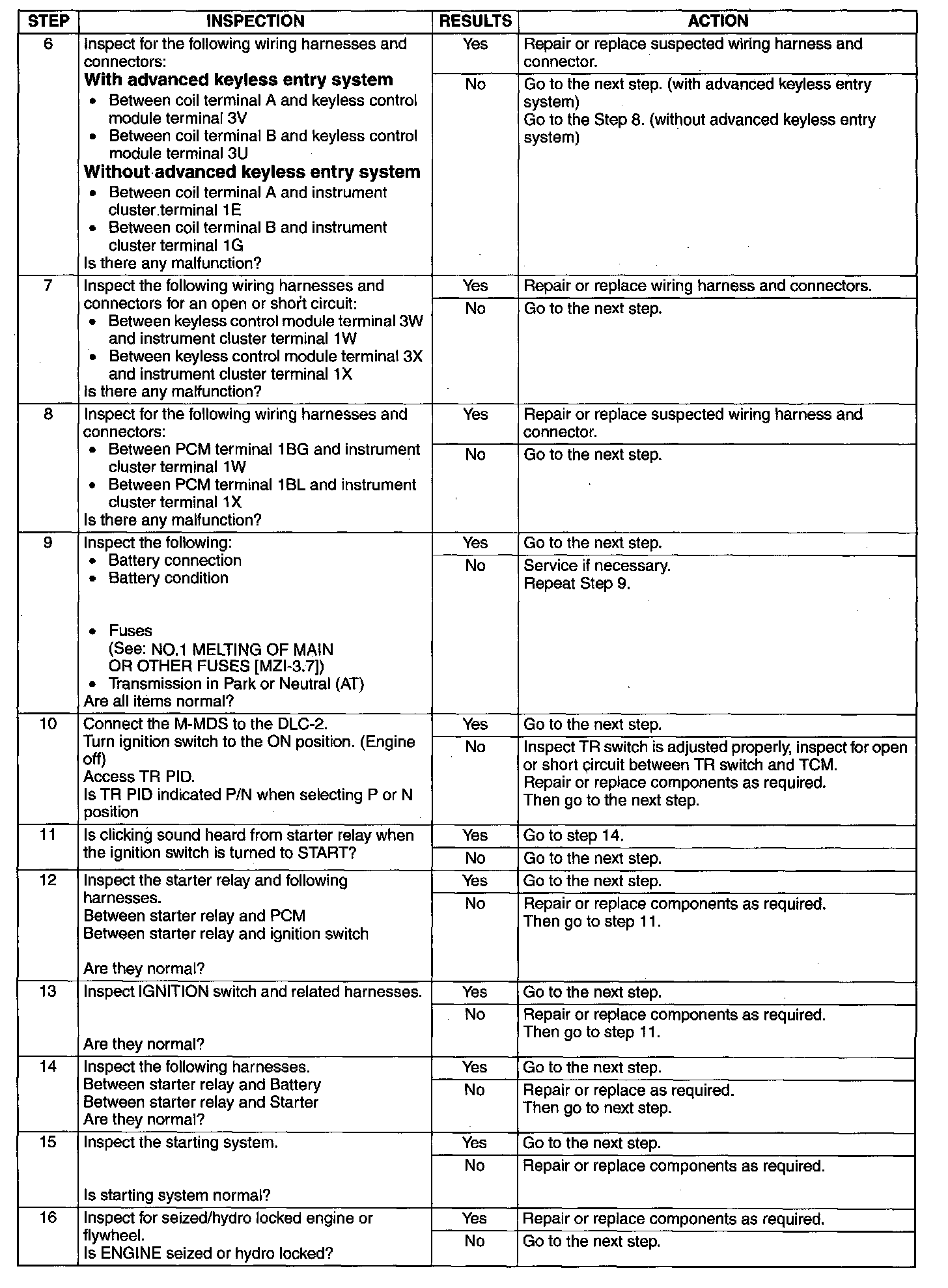

Step 6-Step 16:

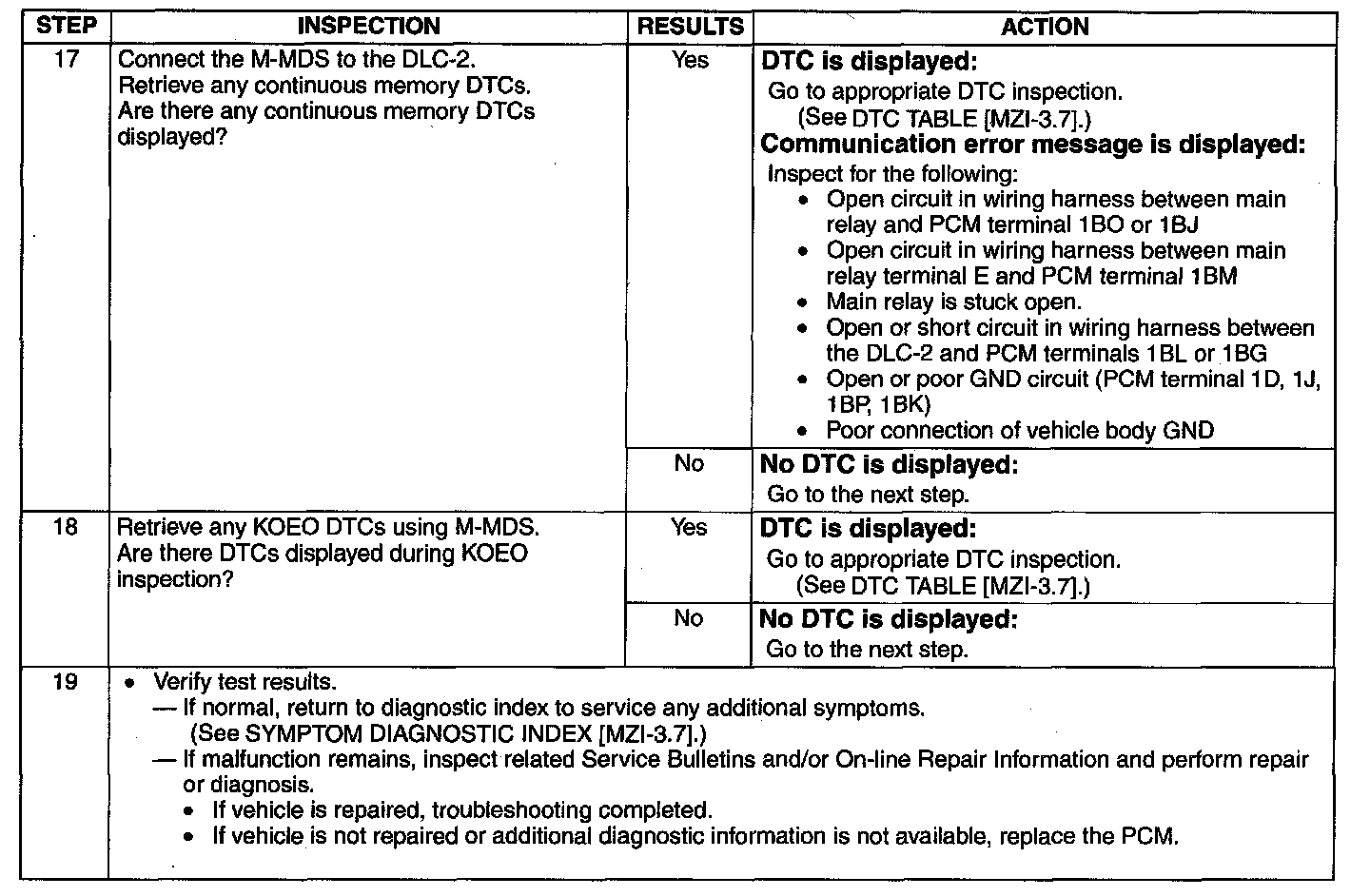

Step 17-Step 19:
