Home >> Mazda >> 2008 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Steering and Suspension >> Alignment >> Service and Repair >> Front Wheel Alignment >> Specification (Unloaded)

Specification (Unloaded)

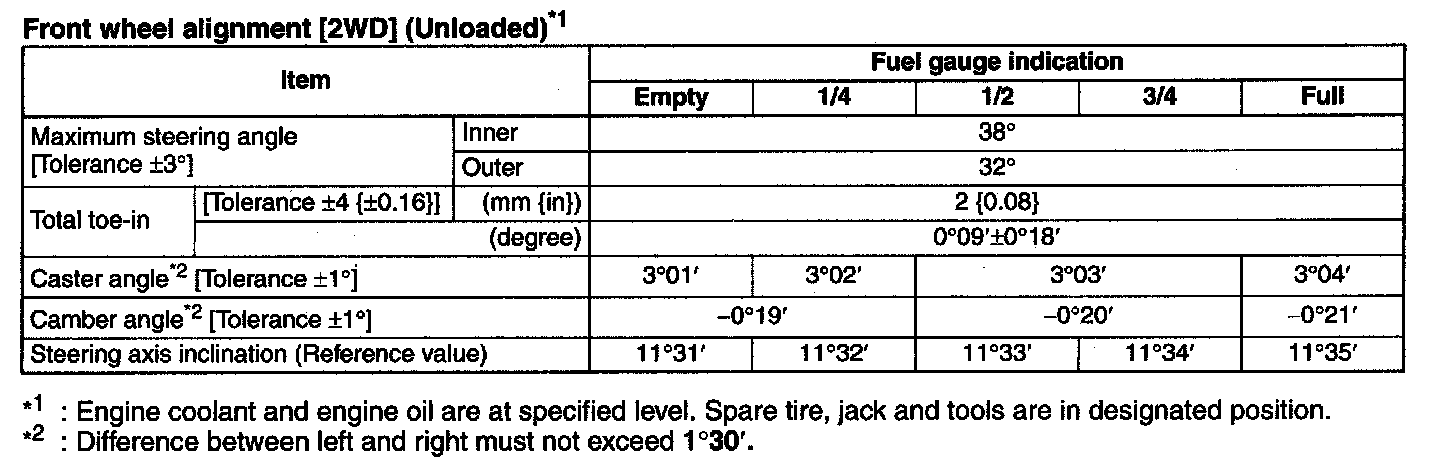

Front wheel alignment [2WD] (Unloaded)*1

Front wheel alignment [2WD] (Unloaded)*1:
