Steering Column: Service and Repair
STEERING WHEEL AND COLUMN REMOVAL/INSTALLATIONWarning:
^ Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module.
1. Remove the dashboard under cover (driver side).
2. Remove the column cover.
3. Remove the coil antenna (with advanced keyless system).
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. If the steering lock component of a vehicle equipped with the advanced keyless system is replaced, perform the following procedure after installation.
^ Without immobilizer system
- Steering lock unit programming
^ With immobilizer system
- Immobilizer system resetting
Steering Wheel Removal Note
Caution:
^ Do not try to remove the steering wheel by hitting the shaft with a hammer. The column will collapse.
1. Set the vehicle in the straight-ahead position.
2. Remove the steering wheel using a suitable puller.
Steering Shaft Removal Note
Caution:
^ When removing/installing the steering shaft, protect the lower panel with a clean rag to prevent it from being scratched by interference.
1. Protect the lower panel with a clean rag.
2. Remove the steering wheel using any commercially available puller.
Steering Lock Mounting Bolts Removal Note

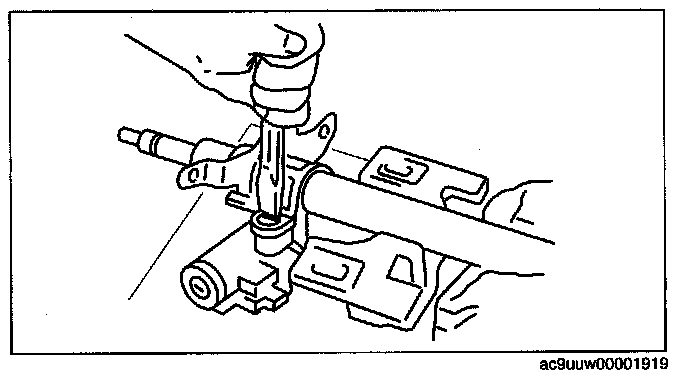

1. Make a groove in the heads of the steering lock mounting bolts using a chisel and a hammer.

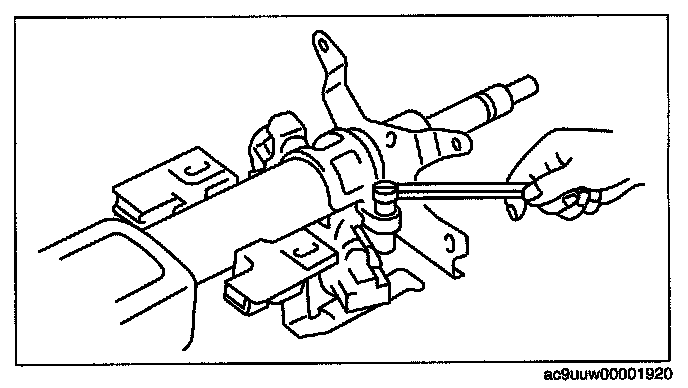

2. Remove the bolts using a screwdriver.
3. Disassemble the steering lock component.
Key Cylinder (Without Advanced Keyless System) Removal Note
1. Turn the key to the ACC position.
2. Push the pin and remove the outer cylinder.
Steering Lock Mounting Bolts Installation Note
1. Assemble the steering lock component to the steering shaft.
2. Verify that the lock operates correctly.
3. Install new steering lock mounting bolts.
4. Tighten the bolts until the heads break off.
Steering Shaft Installation Note
Caution:
^ Do not apply a shock in the axial direction of the shaft.
1. Lock the tilt lever.
2. Tighten nut A.
3. Tighten nut B.
4. Tighten bolt C.
Steering Wheel Installation Note
1. Make sure the wheels in the straight-ahead position, and install the steering wheel.
