Power Window Subswitch Removal/Installation

POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

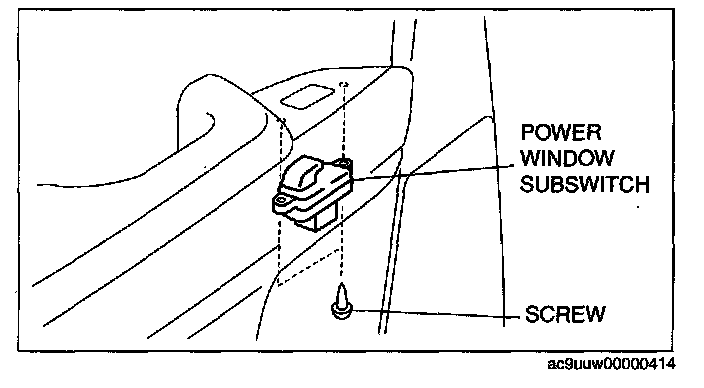

Passenger Side






1. Disconnect the negative battery cable.
2. Remove the inner garnish.
3. Remove the front door trim.
4. Remove the screw, and remove the power window subswitch from inside the front door trim.
5. Install in the reverse order of removal.

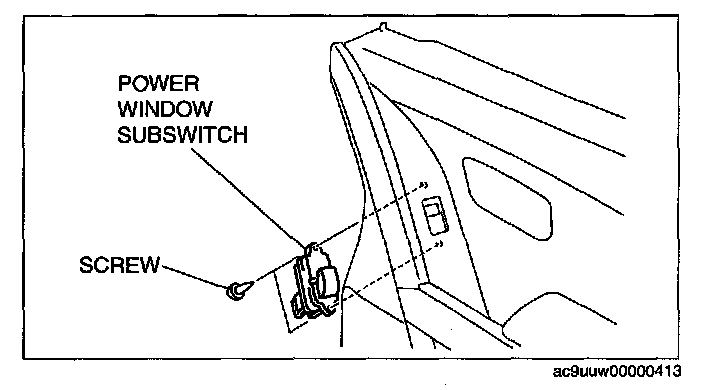

Rear Side






1. Disconnect the negative battery cable.
2. Remove the inner sail garnish.
3. Remove the rear door trim.
4. Remove the screw, and remove the power window subswitch from inside the front door trim.
5. Install in the reverse order of removal.
