Locations
>>
Component Locations
>>
Wiper/Washer System
Wiper/Washer System

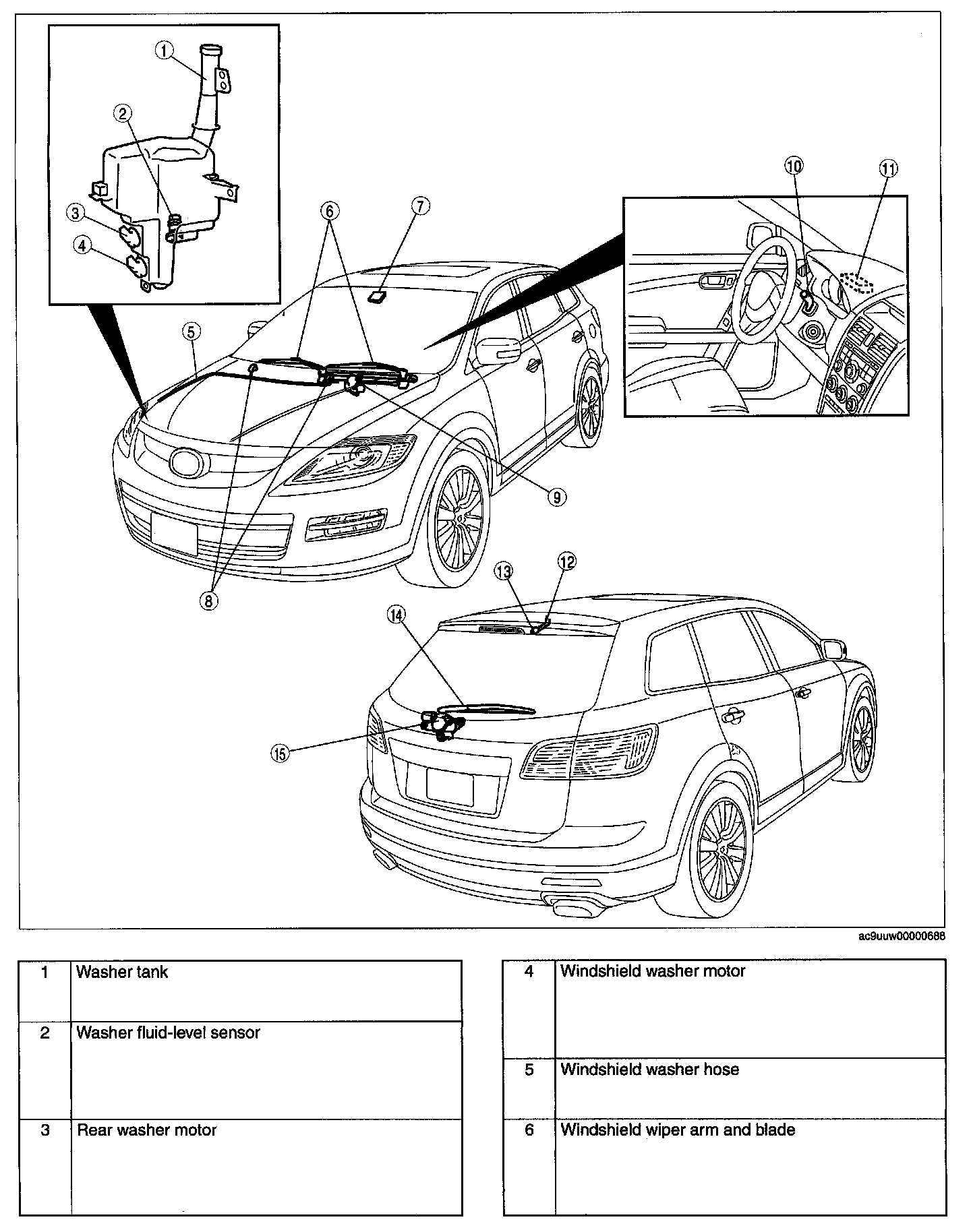

Wiper/Washer System Location Index (Part-1):

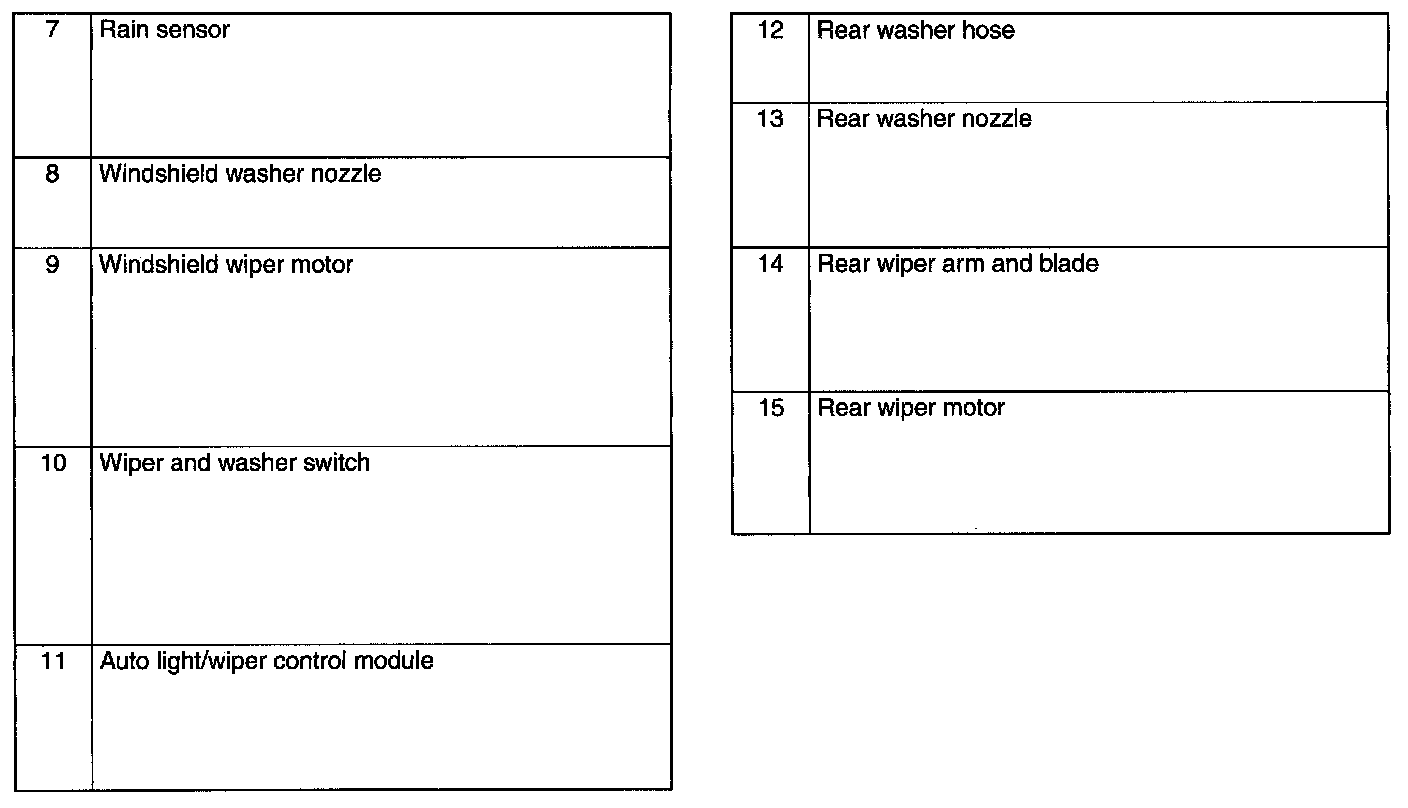

Wiper/Washer System Location Index (Part-2):
