Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L Hybrid >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Testing and Inspection

Blower Motor Resistor: Testing and Inspection



--

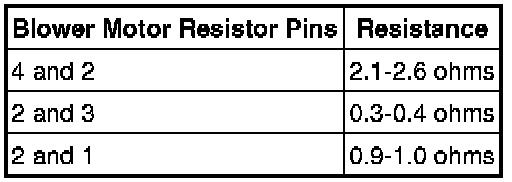

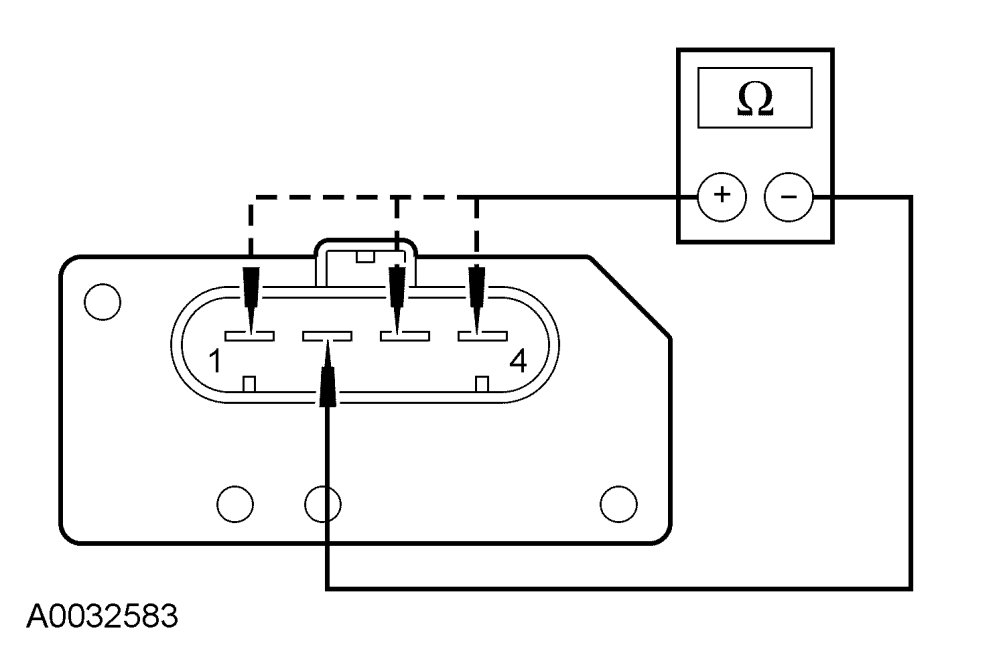

COMPONENT TEST - BLOWER MOTOR RESISTOR - HYBRID
