Positive Crankcase Ventilation: Locations



-

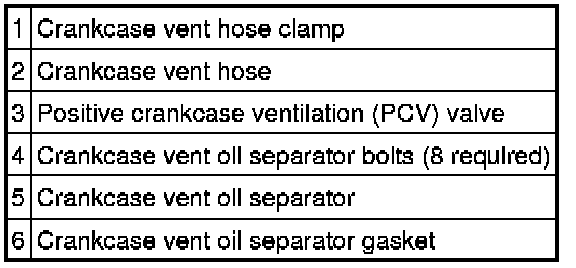

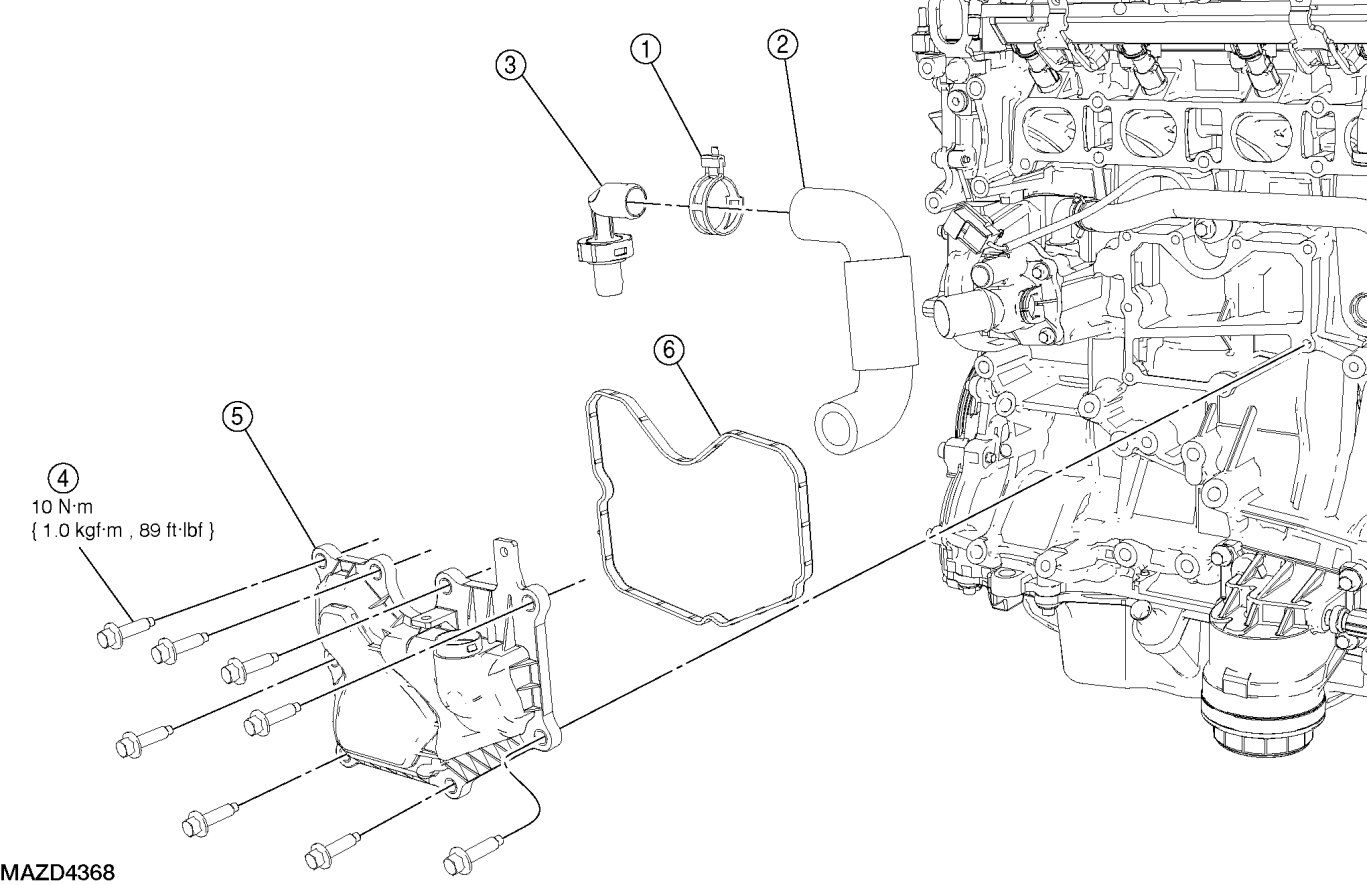

POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM EXPLODED VIEW - HYBRID
