Front Bumper: Service and Repair

FRONT BUMPER REMOVAL/INSTALLATION

1. Remove the front bumper cover.

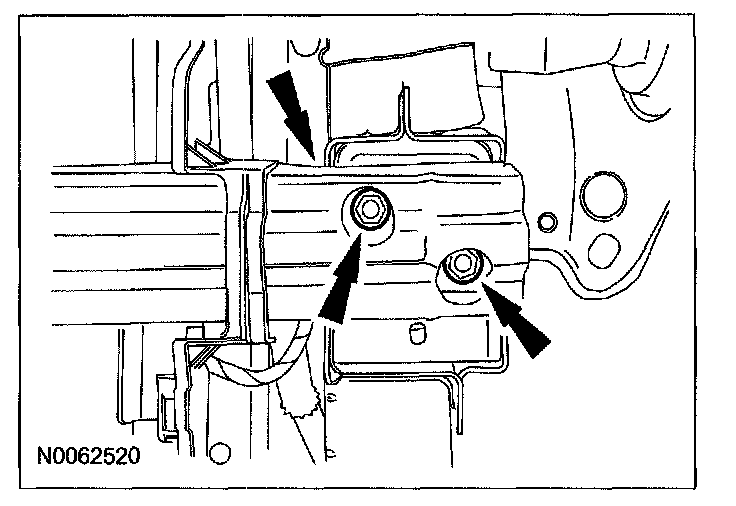

2. Remove the 2 pushpins (1 each side) from the front bumper.






3. Remove the 4 front bumper nuts (2 each side).
- To install, tighten to 25 N.m {2.5 kgf.m, 18 ft.lbf}.






4. Remove the front bumper.
5. To install, reverse the removal procedure.
