Body and Frame: Description and Operation
FRONT END BODY PANELS
The front end body panel components consist of the following:
-
Air deflectors
-

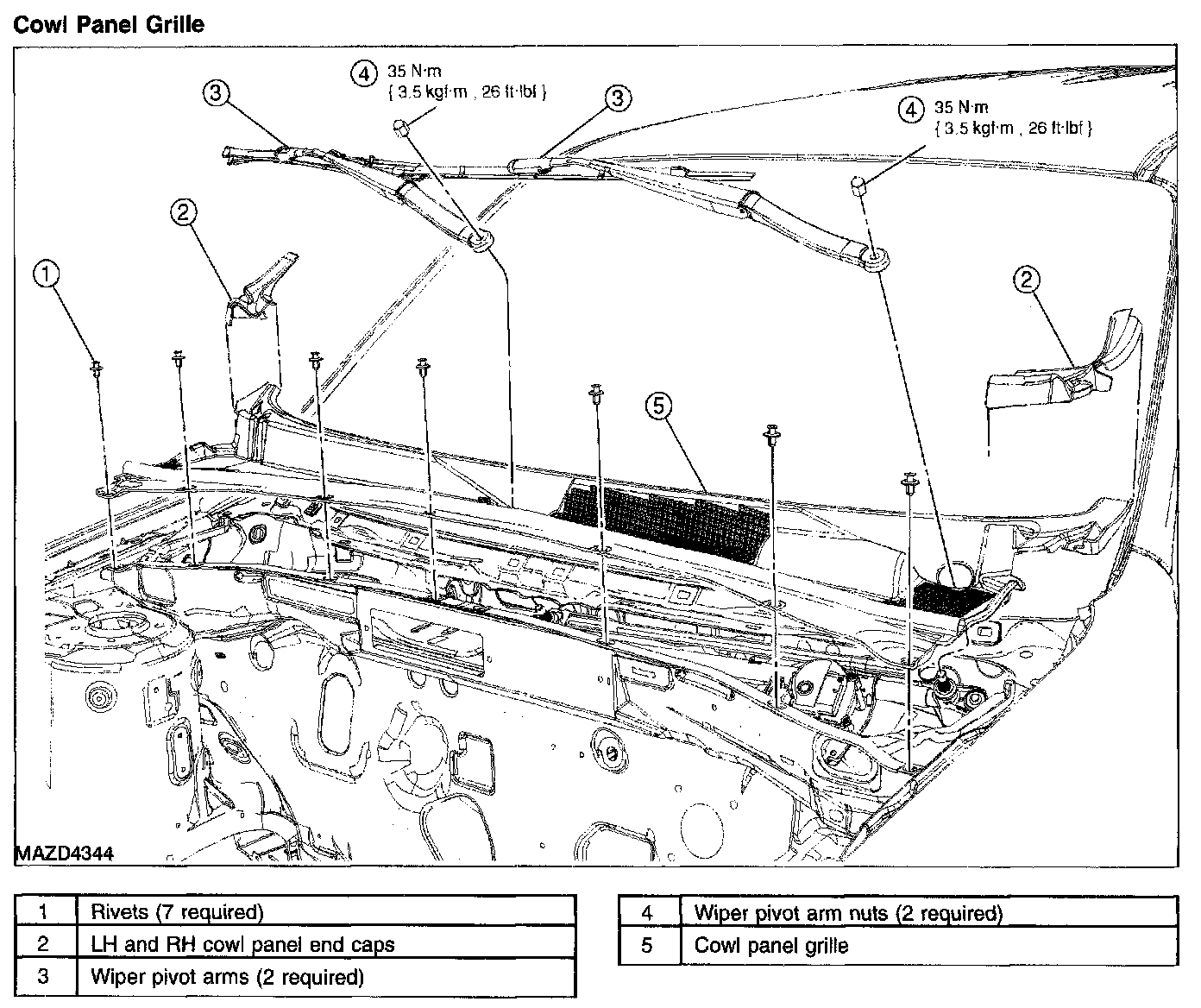

Cowl grille
-

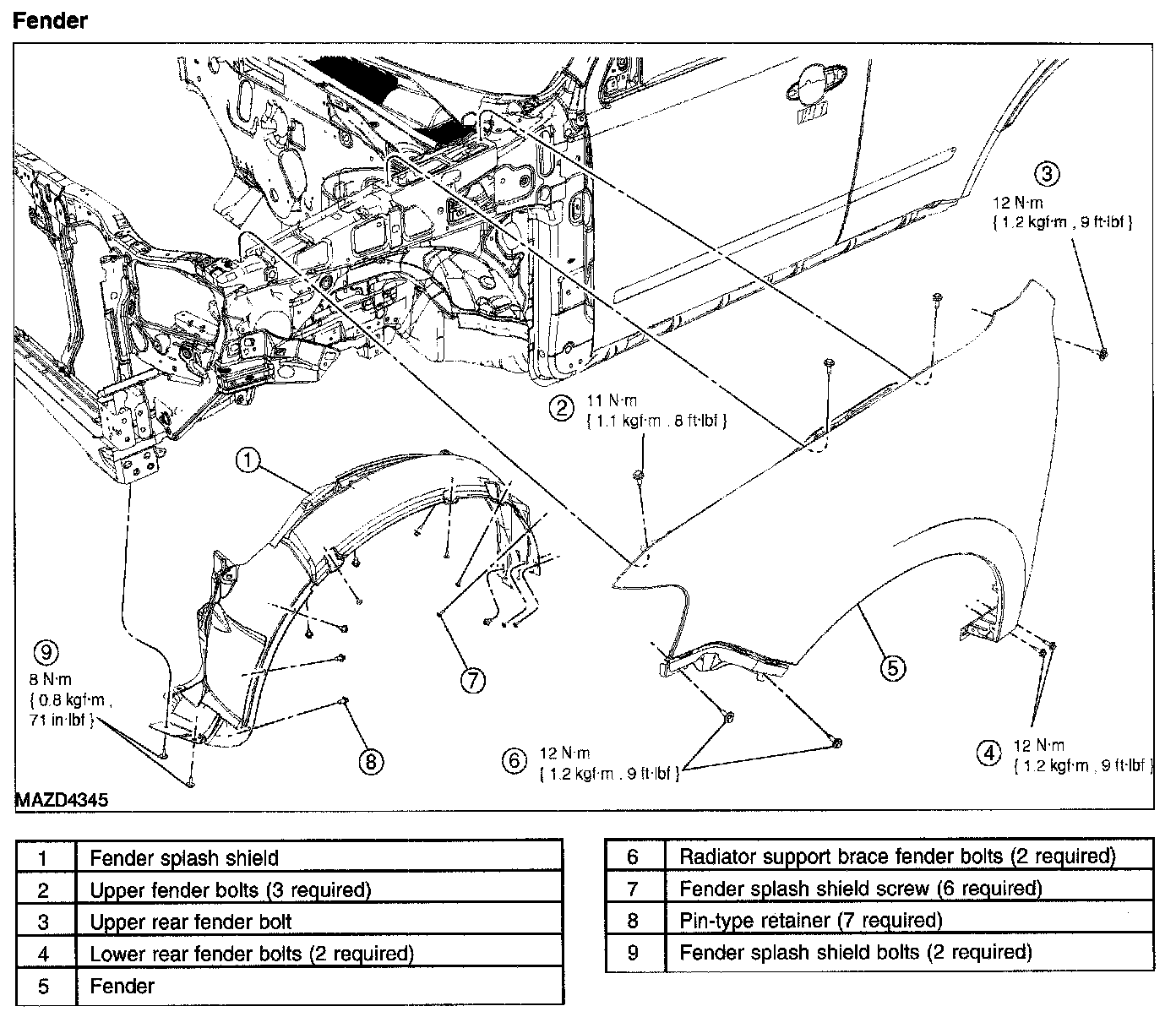

Fenders
-
Fender
splash shields
-
Hood
-
Hood hinges
