Pinpoint Test 9: The Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST 9: THE PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

Normal Operation
The panic function is accomplished by the smart junction box (SJB) receiving a command message from the integrated keyhead transmitter (IKT) through the SJB. The SJB processes the command and activates the horn and parking lamps.

Possible Causes
- Horn system
- Parking lamps system
- IKT battery
- IKT programming
- IKT
- Instrument cluster
- SJB

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

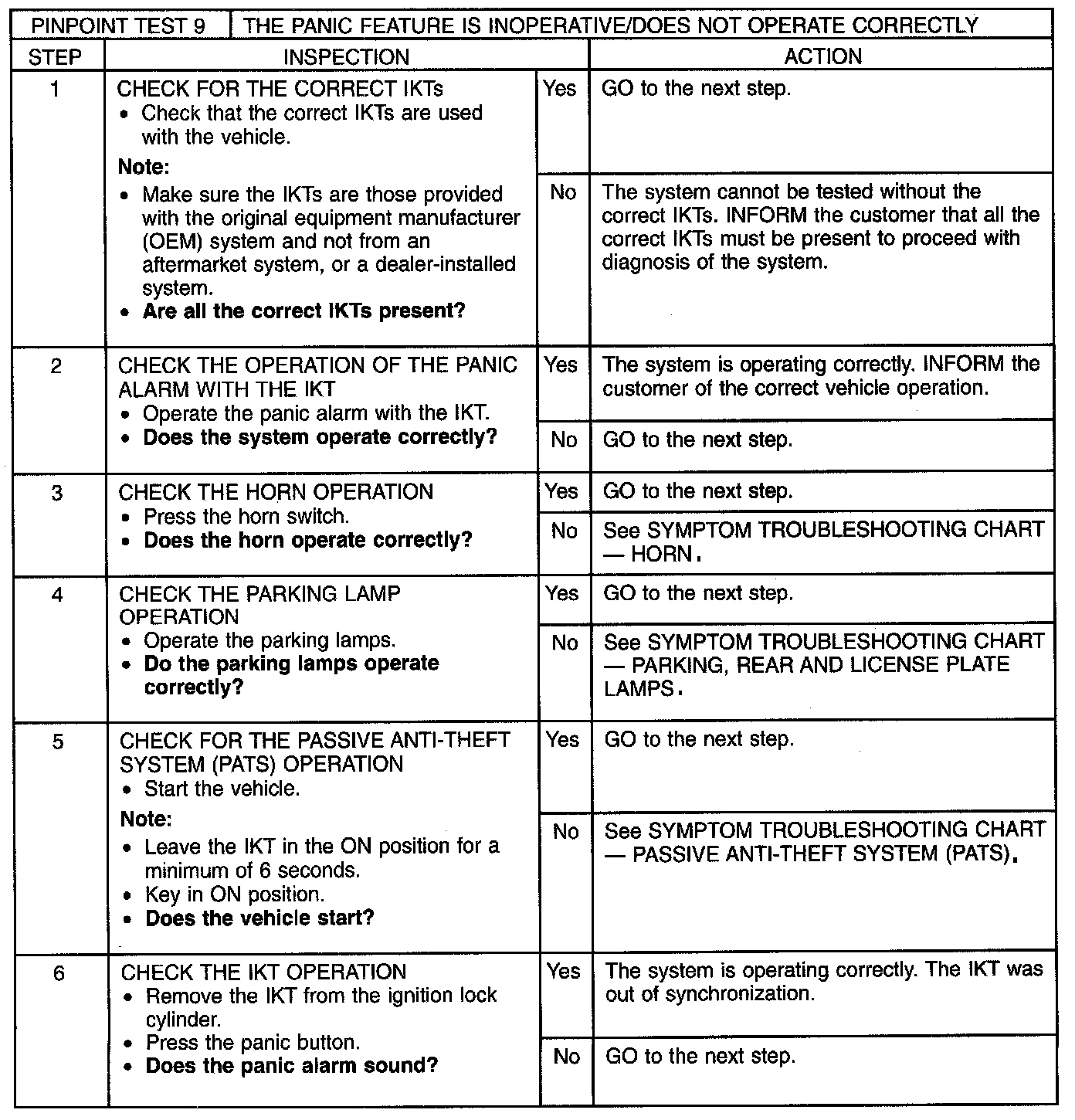

Step 1-Step 6:

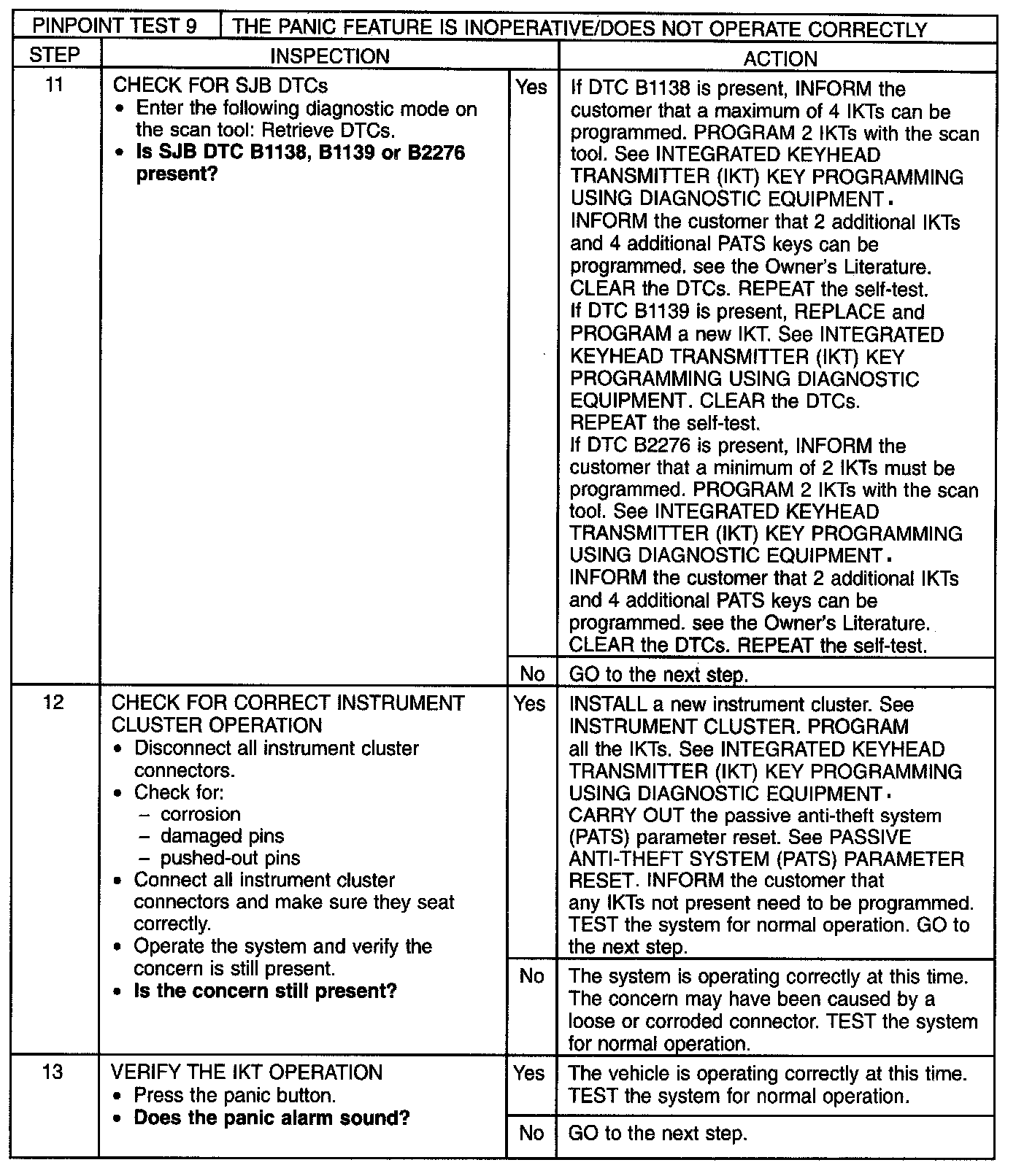

Step 7-Step 10:

Step 11-Step 13:

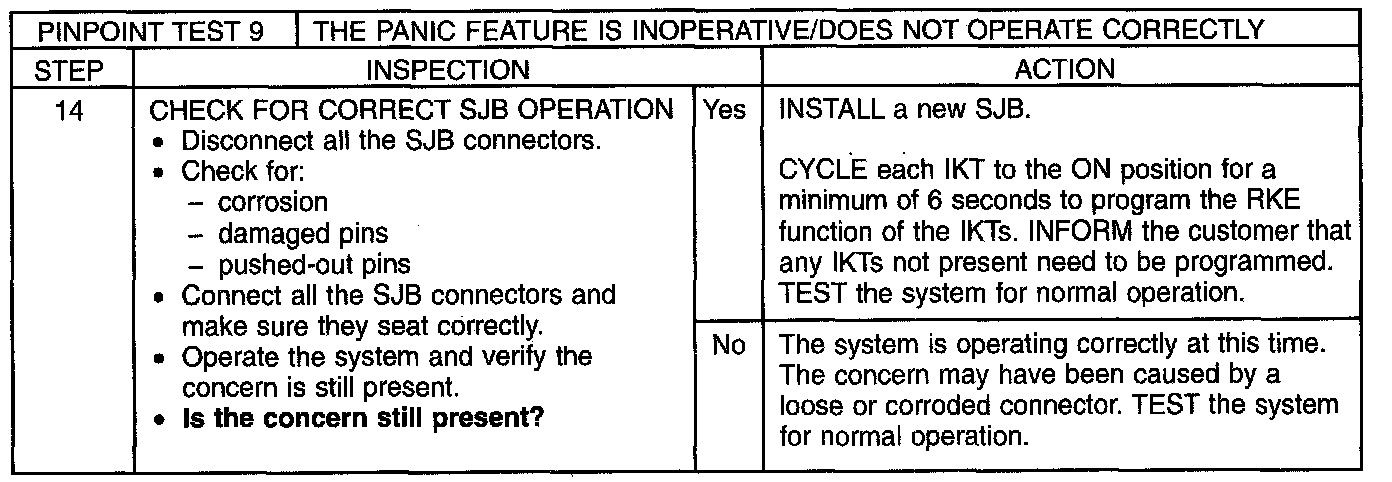

Step 14:
