Exterior Mirror Motor Removal/Installation

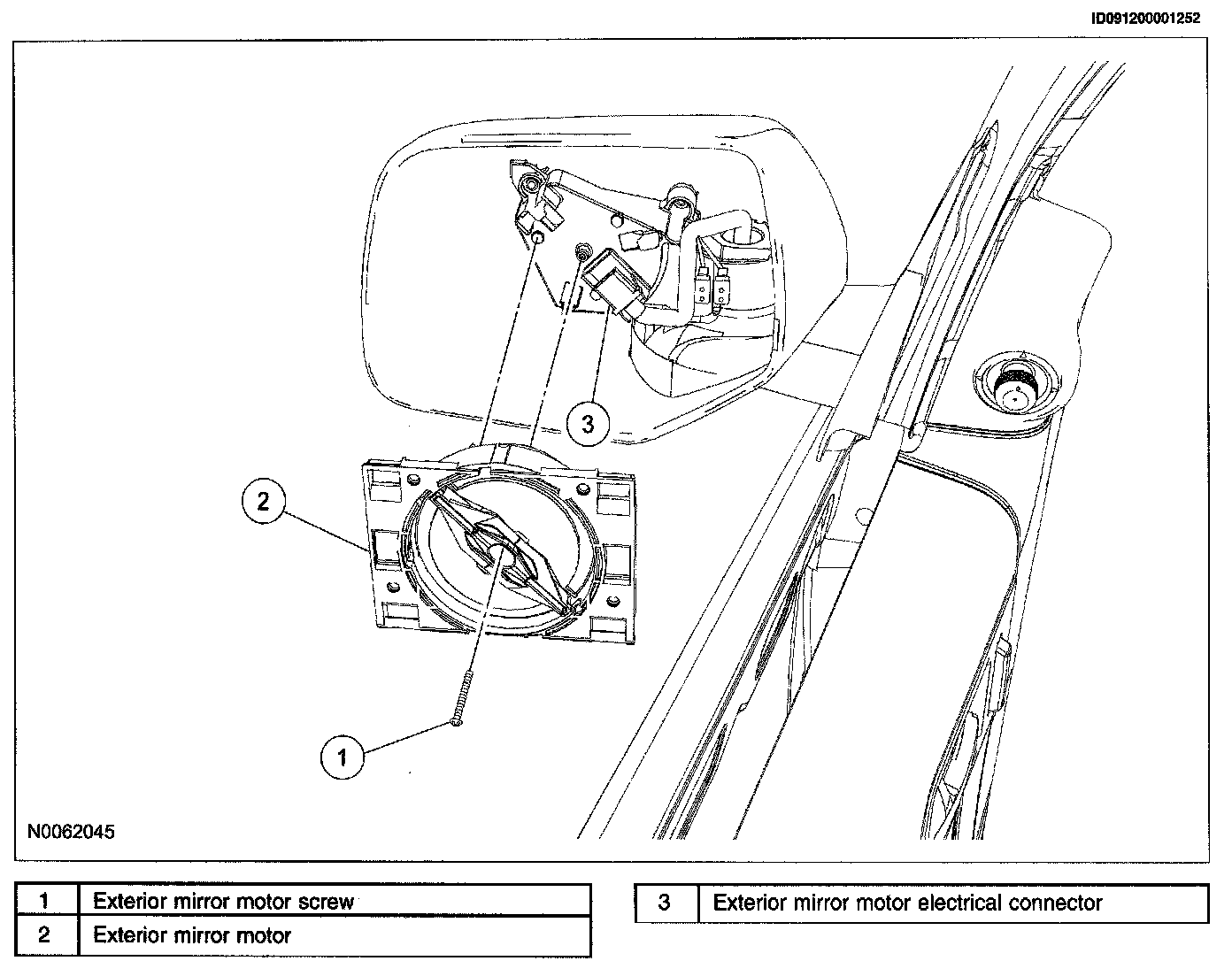

EXTERIOR MIRROR MOTOR REMOVAL/INSTALLATION






1. Remove the exterior mirror glass.
2. Remove the exterior mirror motor screw.

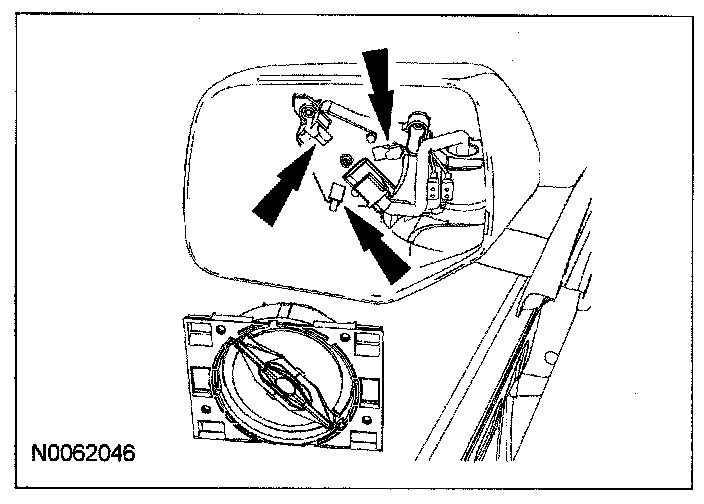

3. With a flat-blade tool, release the 3 exterior mirror motor tabs.
4. Remove the exterior mirror motor.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
