Component Tests and General Diagnostics

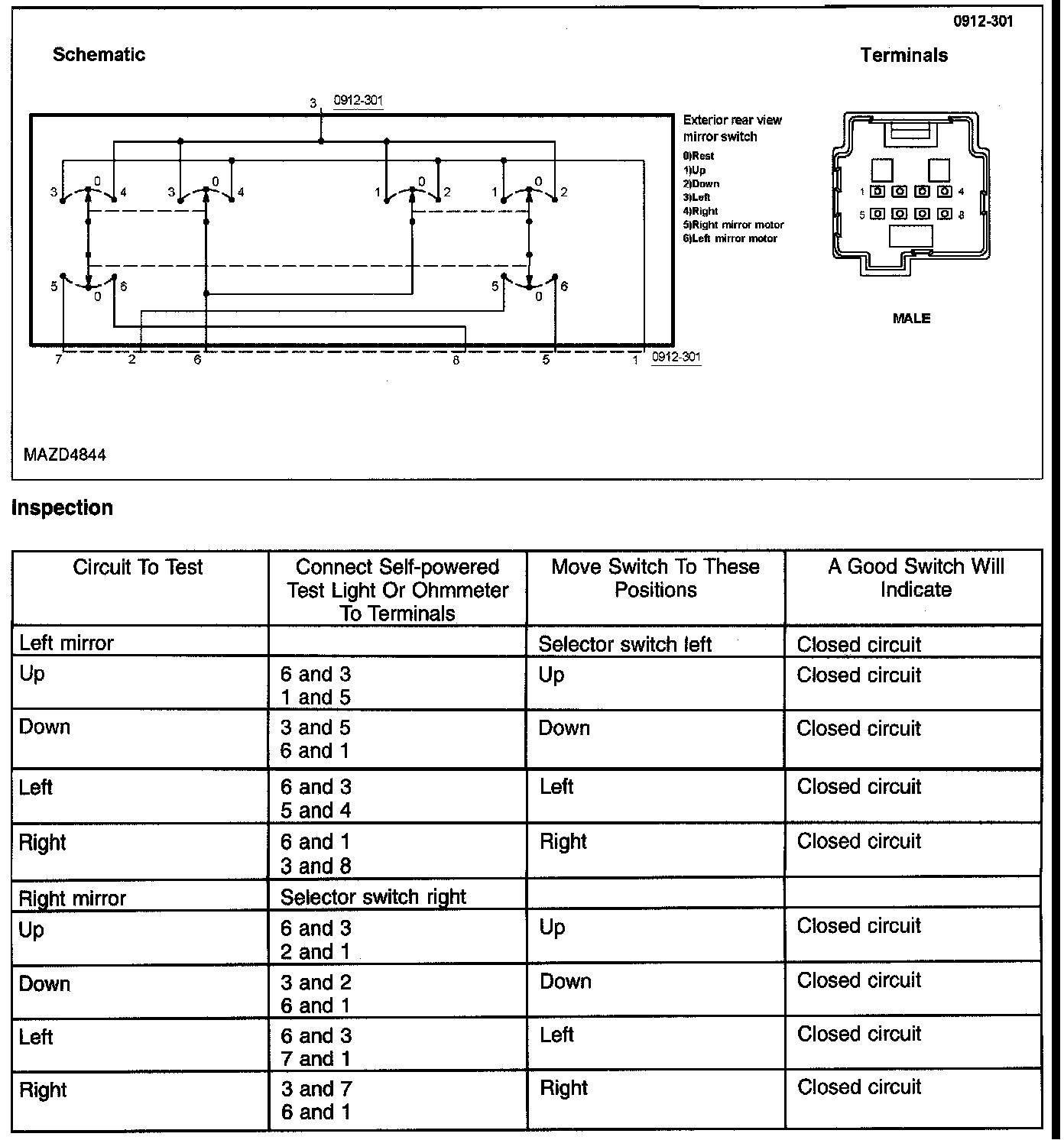

COMPONENT TEST - EXTERIOR REAR VIEW MIRROR SWITCH

1. Remove the exterior rear view mirror switch.
2. Inspect for continuity between the exterior rear view mirror switch terminals using a self-powered test light or an ohmmeter.
