Connector End Views - Rear View Mirrors
Connector End Views - Rear View Mirrors

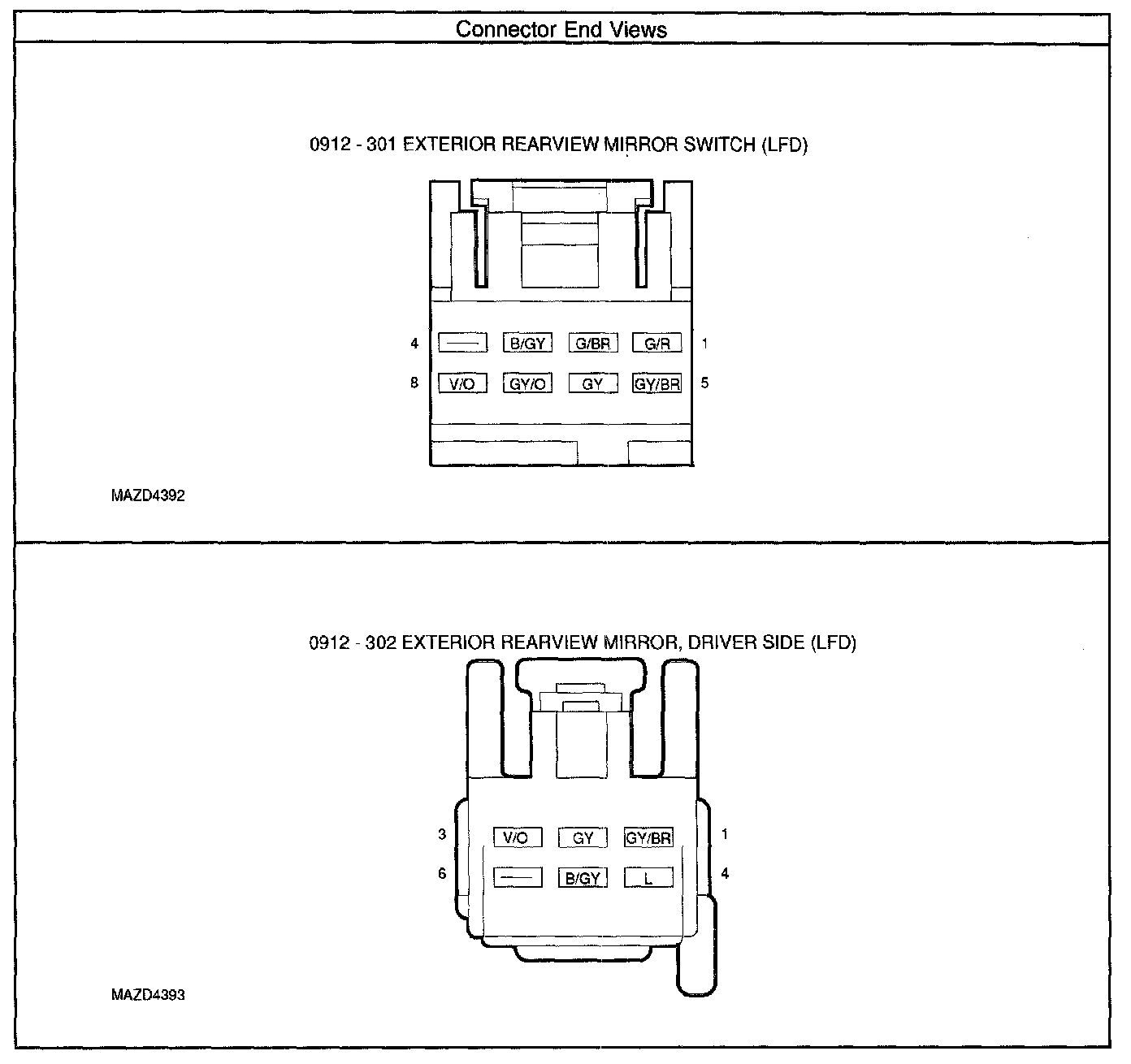

Connector End Views-Rear View Mirrors (Part 1):

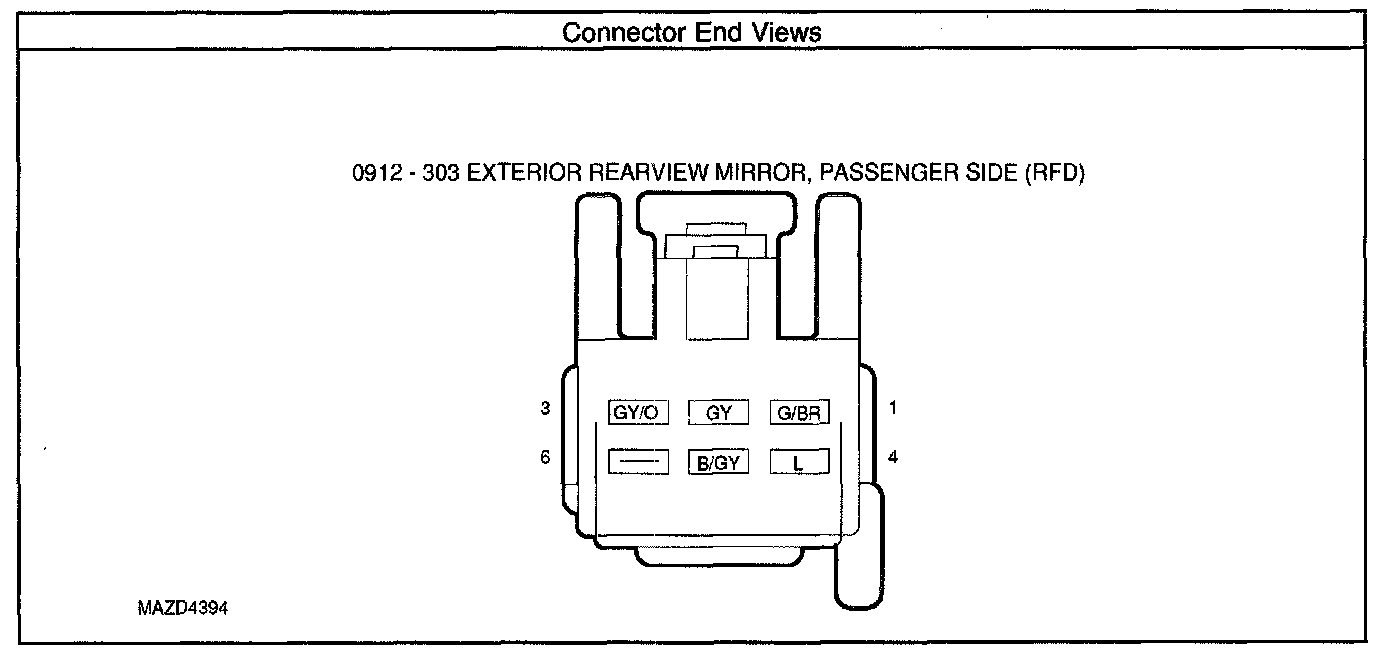

Connector End Views-Rear View Mirrors (Part 2):
