Seat Track: Service and Repair
SEAT TRACK REMOVAL/INSTALLATIONWARNING:
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and may result in serious personal injury.
- To reduce the risk of serious personal injury, do not use any memory saver devices.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which may result in serious personal injury.
NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
1. Remove the front seat and depower the SRS.
2. Remove the front seat backrest.
3. Remove the safety belt buckle pretensioner.

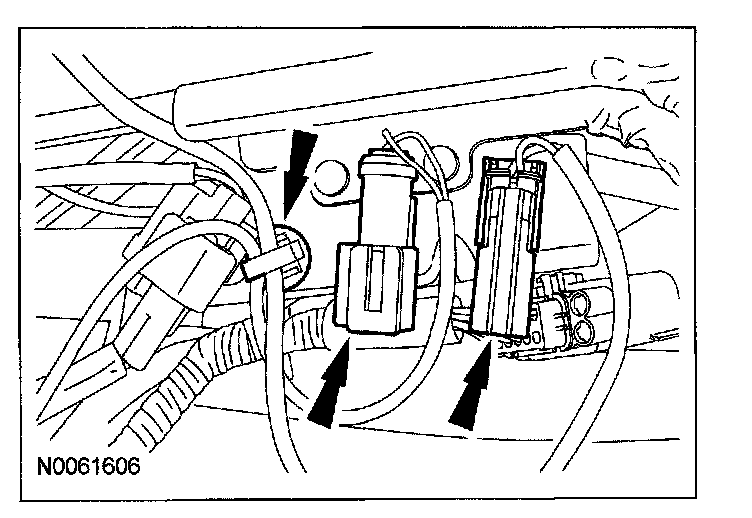

- Disconnect and detach the safety belt buckle pretensioner and buckle switch electrical connectors from the seat track.
- Detach the wiring harness pin-type retainer.
- Route the wiring harness from between the seat track and cushion frame.
4. Disconnect the electrical connectors, detach the wiring harness from the seat track.
- For the driver seat, disconnect the seat position sensor electrical connector.
- If equipped, disconnect the power seat motor electrical connector.
- Detach the seat harness electrical connector from the seat track.
NOTE: Note wiring harness routing for installation.
5. Remove the 4 front seat track bolts.
- To install, tighten to 23 N.m {2.3 kgf.m, 17 ft.lbf}.
6. To install, reverse the removal procedure.
- Transfer components as necessary.
7. Install the front seat and repower the SRS.
