Connector End Views-Seats
Connector End Views-Seats

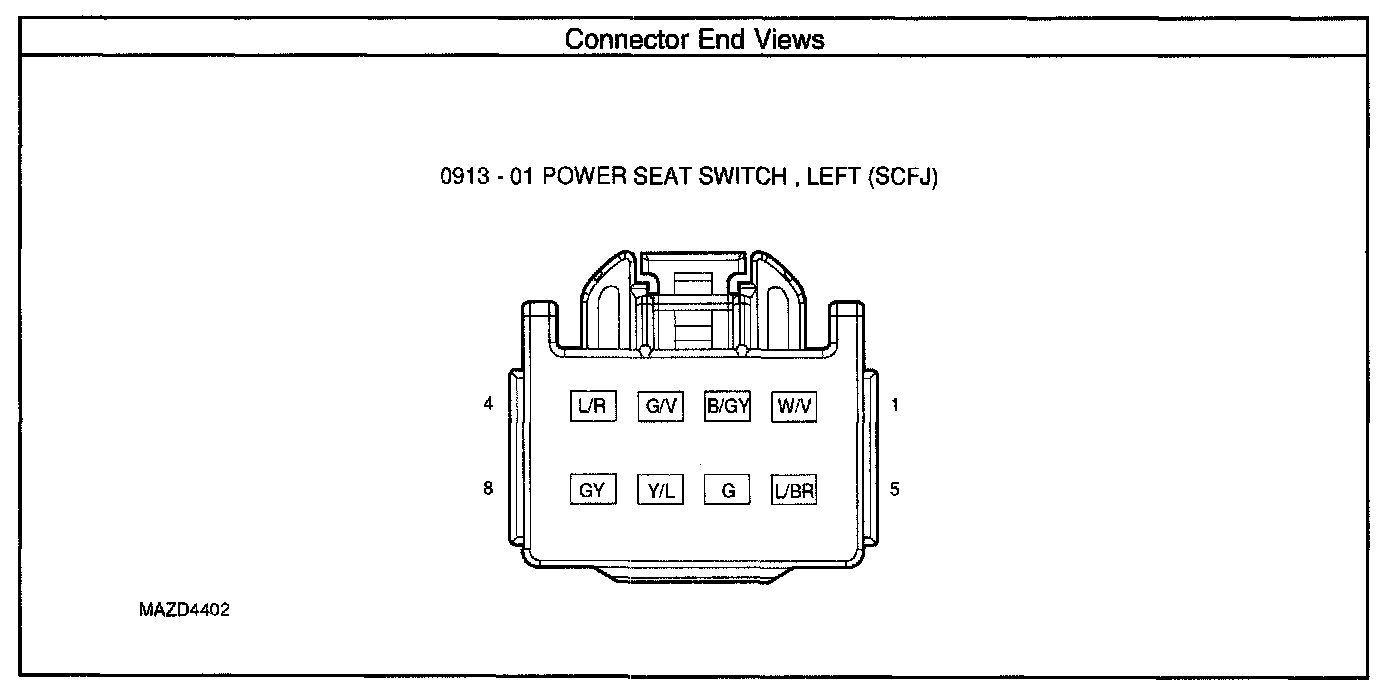

Connector End Views-Seats (Part 1):

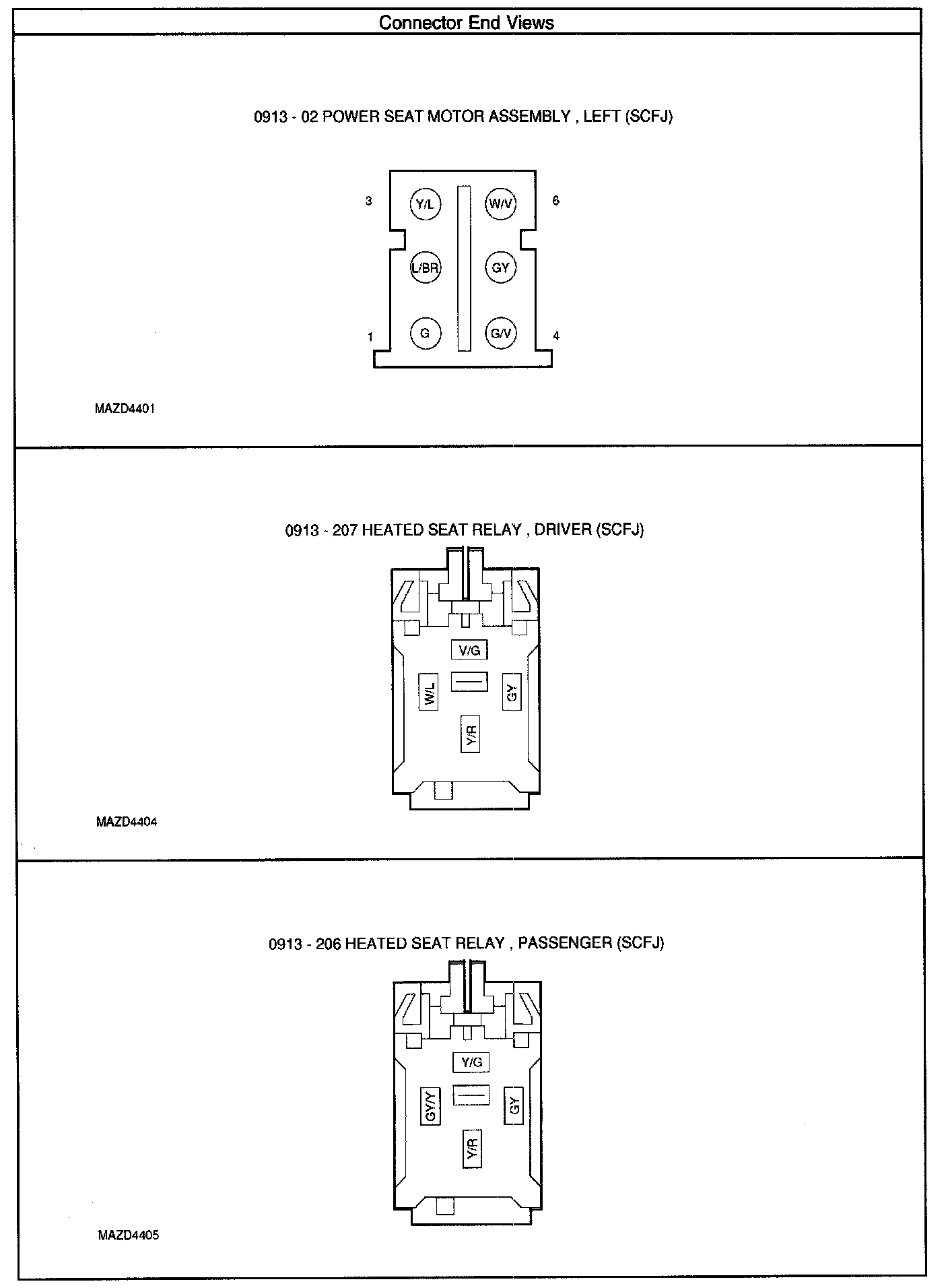

Connector End Views-Seats (Part 2):

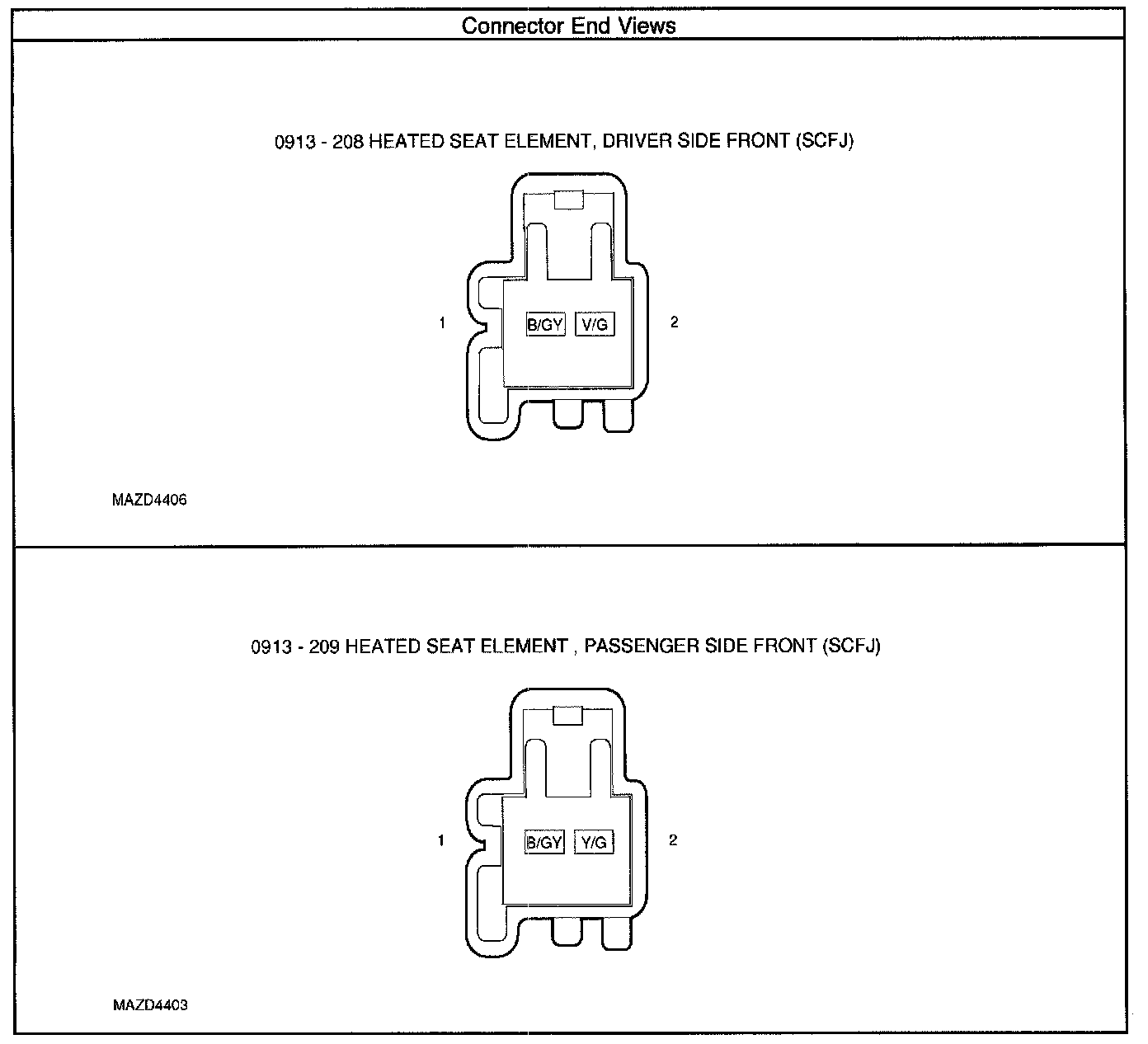

Connector End Views-Seats (Part 3):
