Traction Control Switch: Service and Repair

STABILITY/TRACTION CONTROL SWITCH REMOVAL/INSTALLATION

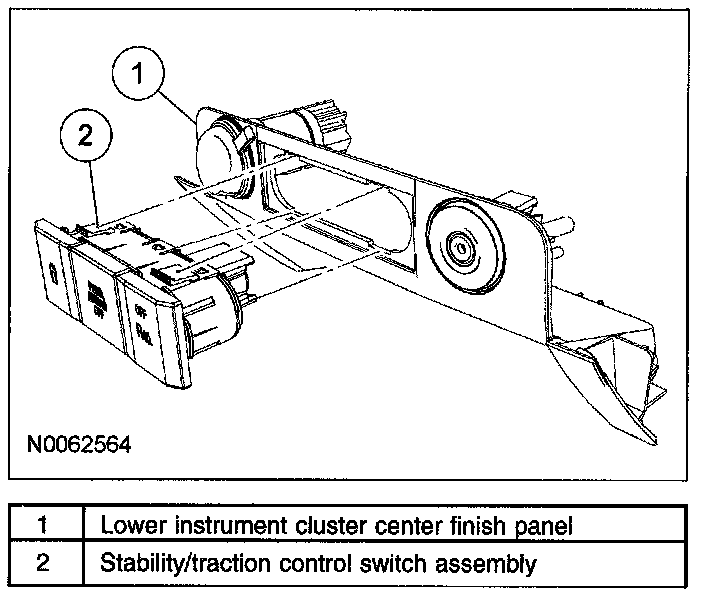

1. Remove the lower instrument cluster center finish panel.
^ Disconnect the electrical connector.

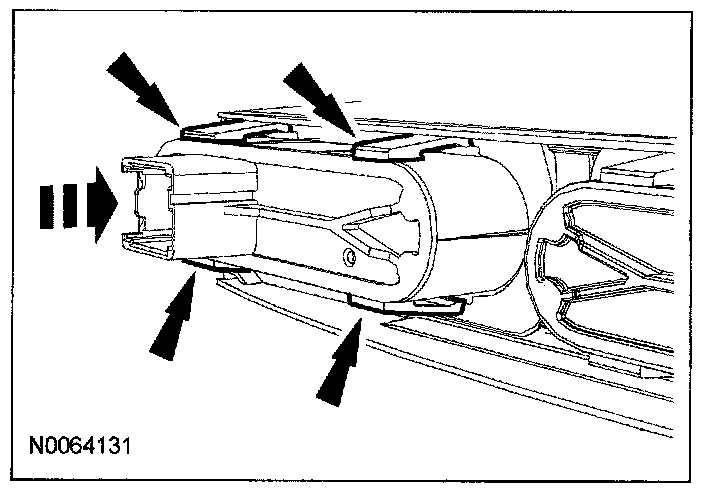

2. Depress the 4 tabs and remove the stability/traction control switch assembly.
3. To install, reverse the removal procedure.
