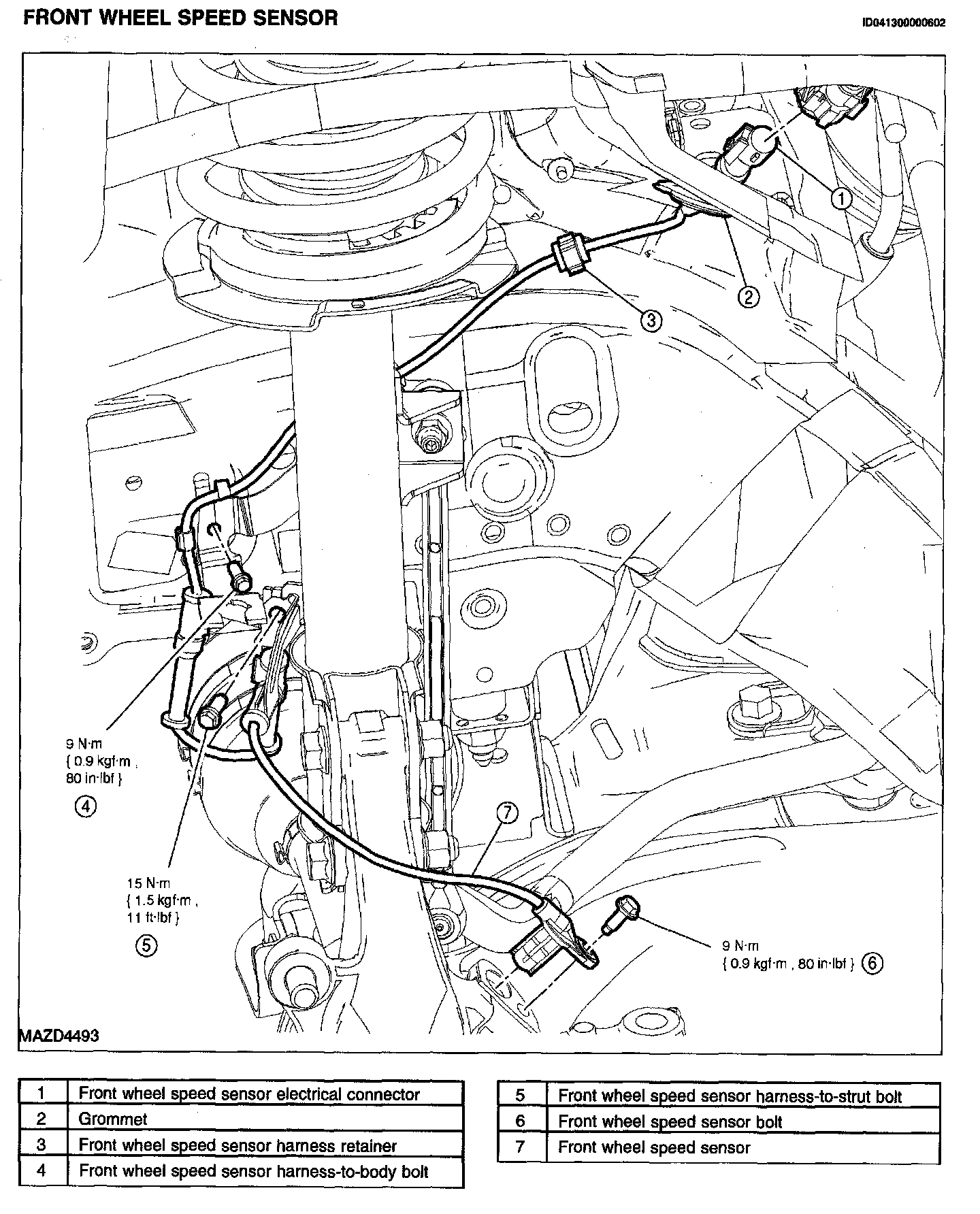

FRONT WHEEL SPEED SENSOR REMOVAL/INSTALLATION





1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the electrical connector.

Note
^ The harness connector is located in the engine compartment.

3. Remove the grommet from the body.

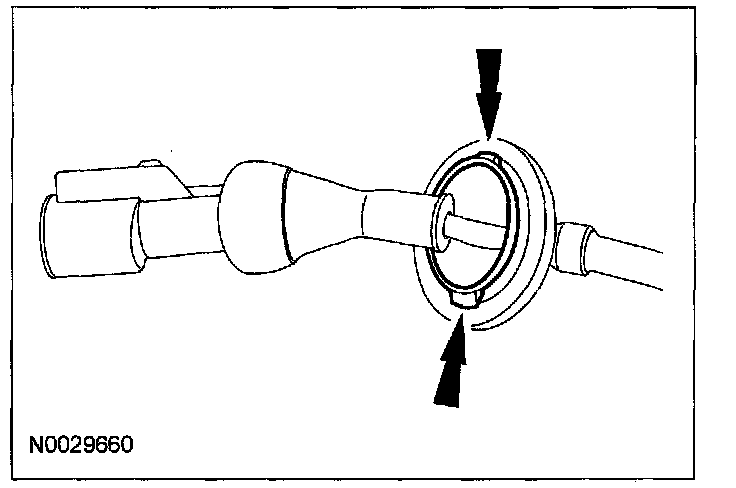

^ When removing the body grommet, rotate the grommet into a position which allows the use of a small screwdriver to release the tabs on the underside of the body grommet. These 2 tabs are located at right angles to the sensor wire.

Caution
^ Care must be taken during the removal of the grommet to prevent damage. If the grommet is damaged, a new sensor may need to be installed, even though the sensor is functional in all other aspects.





4. Remove the front wheel speed sensor harness from the retainer.
5. Remove the front wheel speed sensor harness-to-body bolt.
^ To install, tighten to 9 N-m (0.9 kgf-m, 80 in-lbf).
6. Remove the front wheel speed sensor harness bolt.
^ To install, tighten to 15 N-m (1.5 kgf-m, 11 ft-lbf).
7. Remove the front wheel speed sensor bolt from the wheel knuckle.
^ To install, tighten to 9 N-m (0.9 kgf-m, 80 in-lbf).
8. Remove the front wheel speed sensor.

Note
^ Clean off any foreign material that may have collected around the sensor before removal.

9. To install, reverse the removal procedure.

Note
^ Thoroughly clean the mounting surface.
