Rear

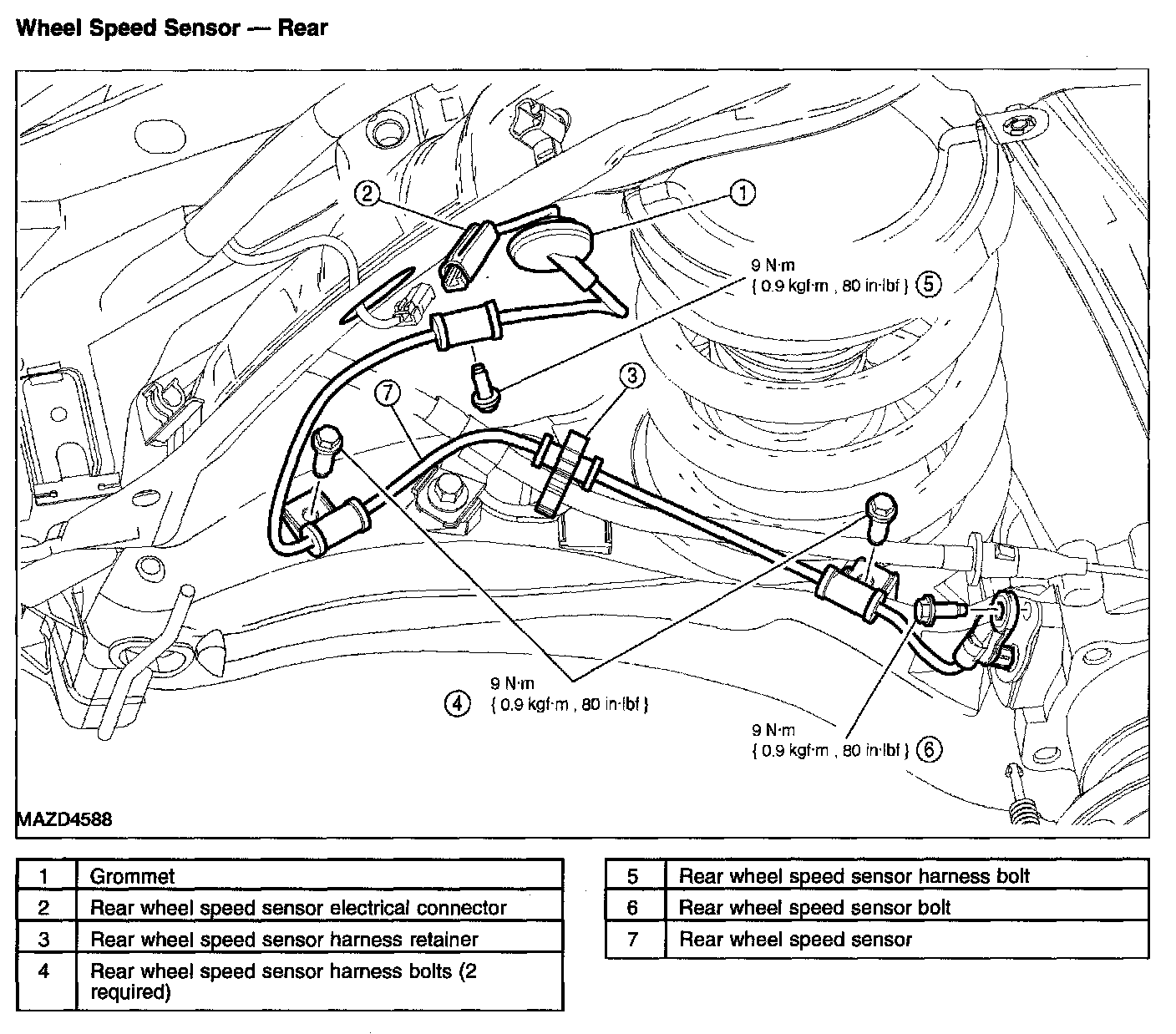

REAR WHEEL SPEED SENSOR AND SENSOR RING REMOVAL/INSTALLATIONWheel Speed Sensor - Rear
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the grommet from the body.

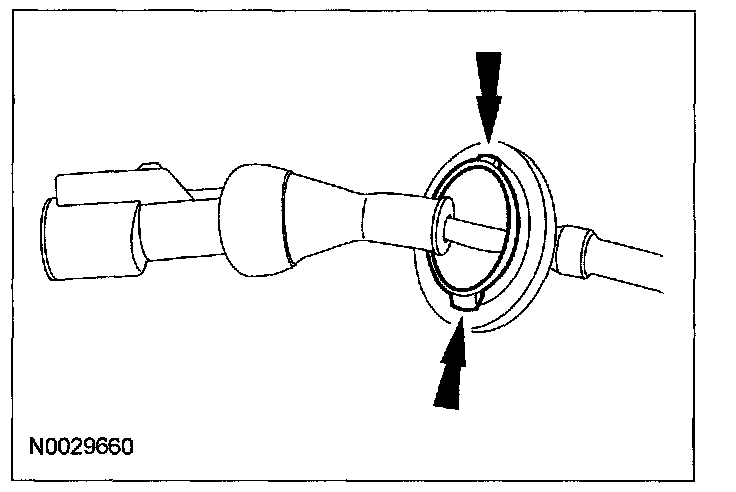

^ When removing the body grommet, rotate the grommet into a position which allows the use of a small screwdriver to release the tabs on the underside of the body grommet. These 2 tabs are located at right angles to the sensor wire.
Caution
^ Care must be taken during the removal of the grommet to prevent damage. If the grommet is damaged, a new sensor may need to be installed, even though the sensor is functional in all other aspects.
3. Disconnect the rear wheel speed sensor electrical connector.
4. Remove the rear wheel speed sensor harness from the retainer.
5. Remove the 2 rear wheel speed sensor harness bolts.
^ To install, tighten to 9 N-m (0.9 kgf-m, 80 in-lbf).
6. Remove the rear wheel speed sensor bolt from the wheel knuckle.
^ To install, tighten to 9 N-m (0.9 kgf-m, 80 in-lbf).
Note
^ Clean off any debris that may have collected around the sensor before removal.
7. Remove the rear wheel speed sensor.
8. To install, reverse the removal procedure.
Note
^ Thoroughly clean the mounting surface.

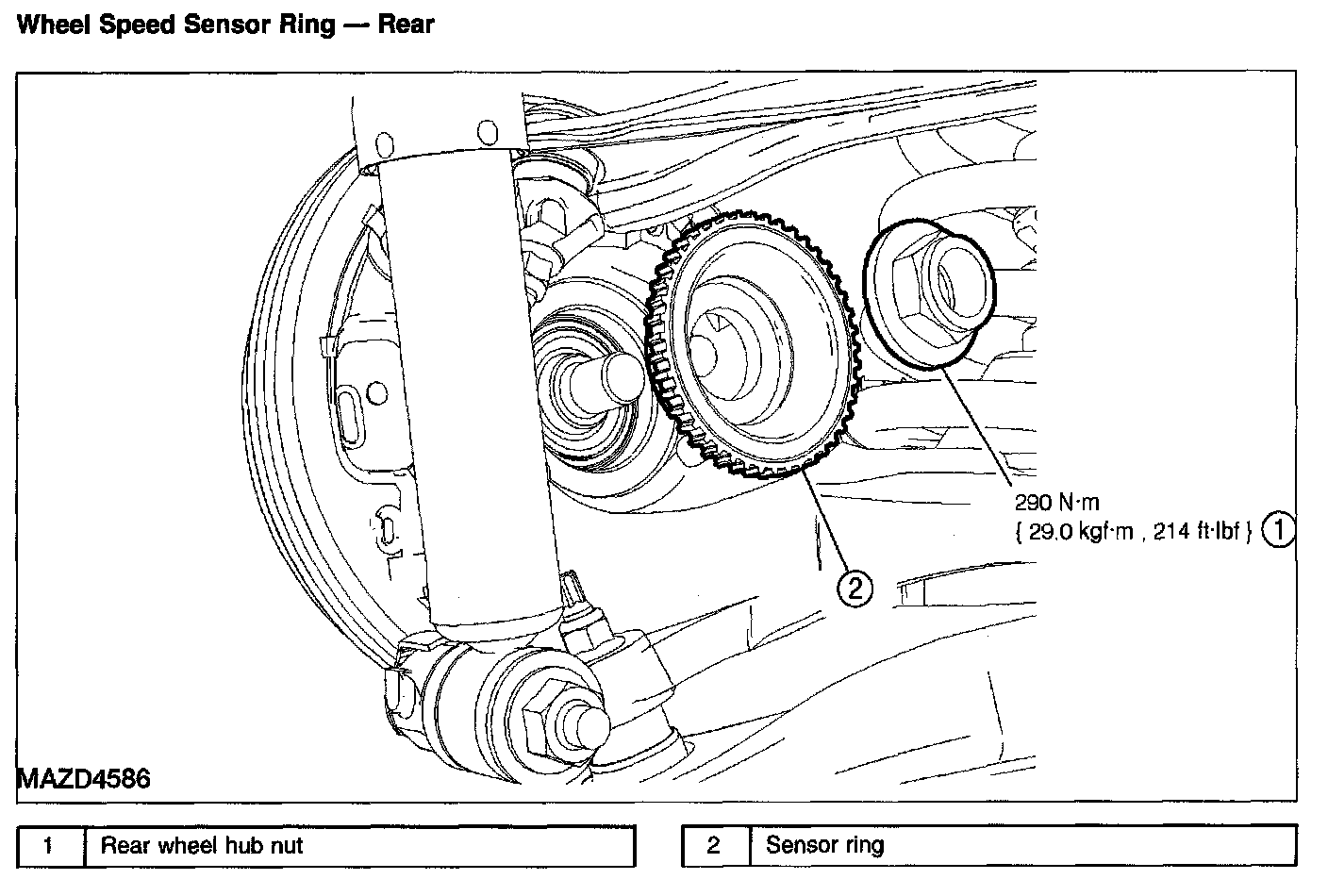

Wheel Speed Sensor Ring - Rear
Front Wheel Drive (FWD) Vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the rear wheel hub nut.
^ To install, tighten to 290 N-m (29.0 kgf-m, 214 ft-lbf).
3. Remove the sensor ring from the wheel hub.
4. To install, reverse the removal procedure.
All Wheel Drive (AWD) Vehicles
5. The rear wheel speed sensor ring is integral to the rear axle halfshaft and cannot be repaired separately.
