Backing Plate: Service and Repair

BRAKE BACKING PLATE REMOVAL/INSTALLATION

1. Remove the rear wheel cylinder.
2. Remove the brake flexible hose bracket bolt.
^ To install, tighten to 17 N-m (1.7 kgf-m, 13 ft-lbf).





3. Compress the parking brake cable conduit locking tabs and pull the parking brake cable assembly through the backing plate.
4. Remove the rear wheel hub.

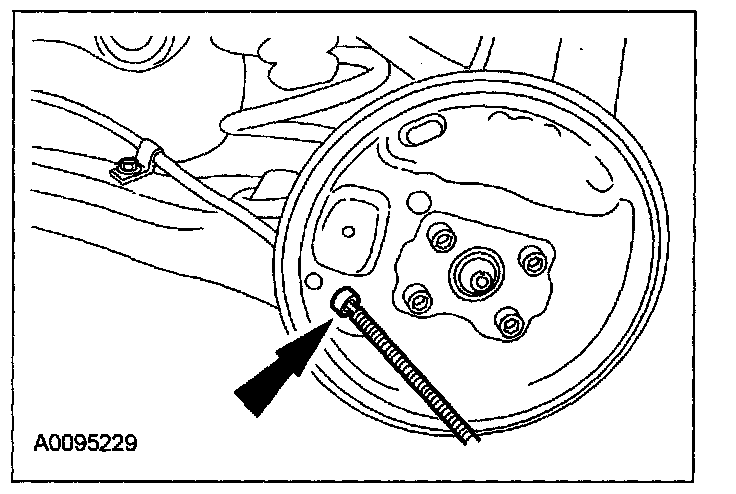

5. Remove the 4 backing plate bolts and the backing plate.
^ To install, tighten to 85 N-m (8.5 kgf-m, 63 ft-lbf).
6. To install, reverse the removal procedure.
