Cruise Control Switch: Service and Repair

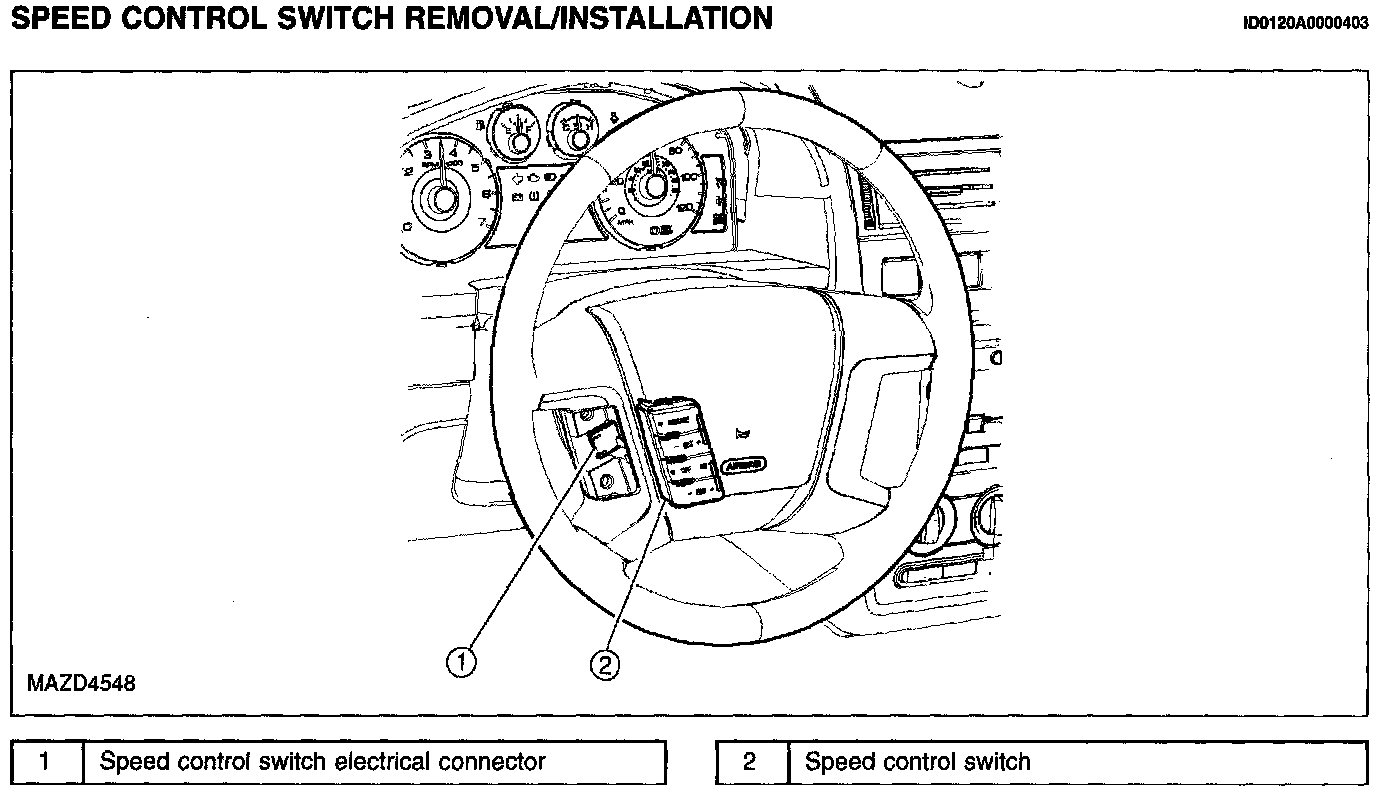

SPEED CONTROL SWITCH REMOVAL/INSTALLATION






1. Remove the speed control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
