Pinpoint Test 4: The Speed Control Does Not Disengage When The Clutch Is Applied
Pinpoint Test 4: The Speed Control Does Not Disengage When The Clutch Is AppliedNormal Operation
The speed control actuator sends a voltage reference signal through circuit (G/W). When the clutch is applied, the clutch pedal position (CPP) switch closes and routes the signal to ground through circuit (Y/V). Ground is supplied by the PCM.
Possible Causes
- Wiring, terminals or connectors
- Obstructions to the accelerator pedal or linkage
- Speed control actuator
- CPP switch
- Speed control cable
- Accelerator cable
- PCM
Diagnostic Procedure
CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

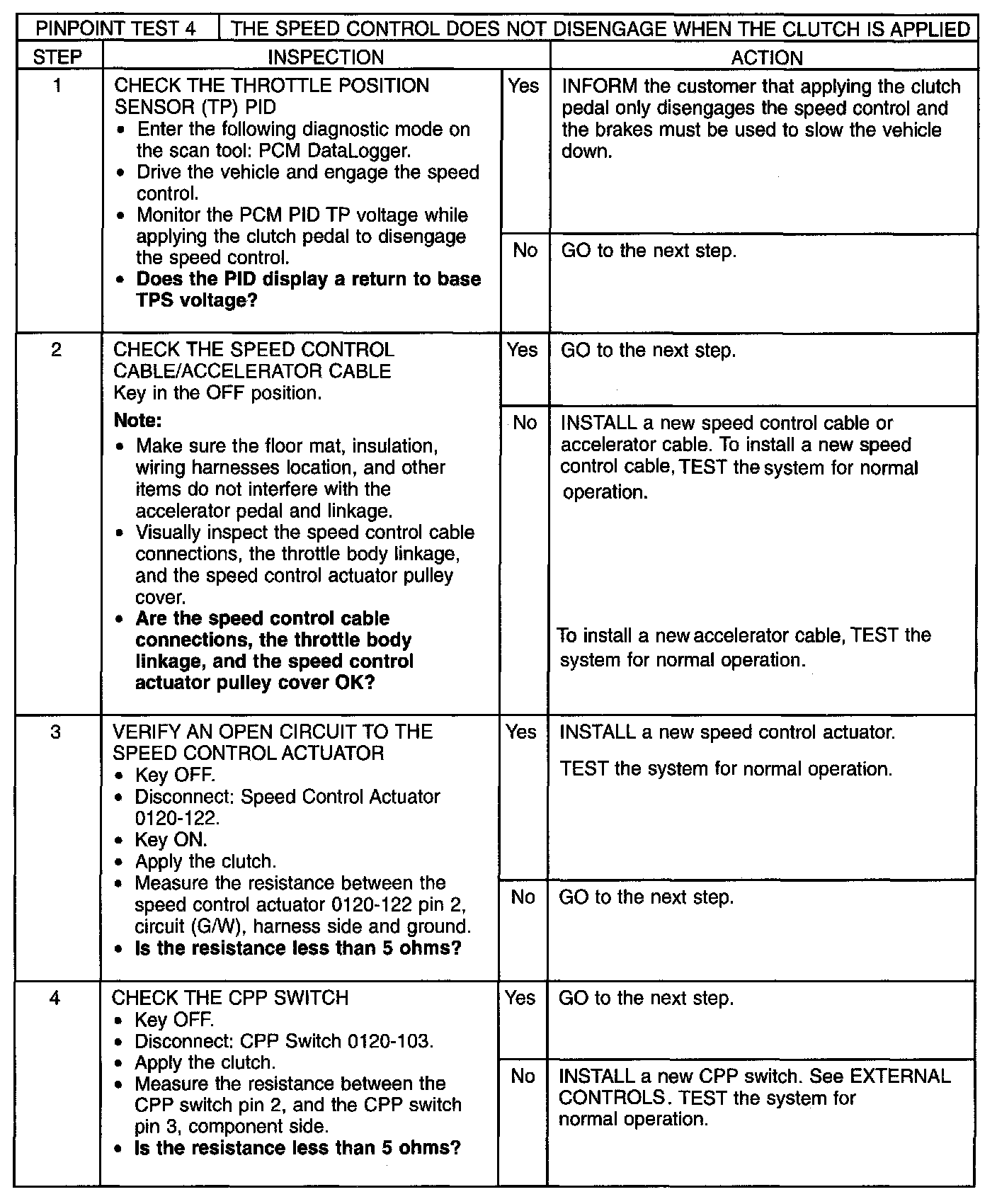

Step 1-Step 4:

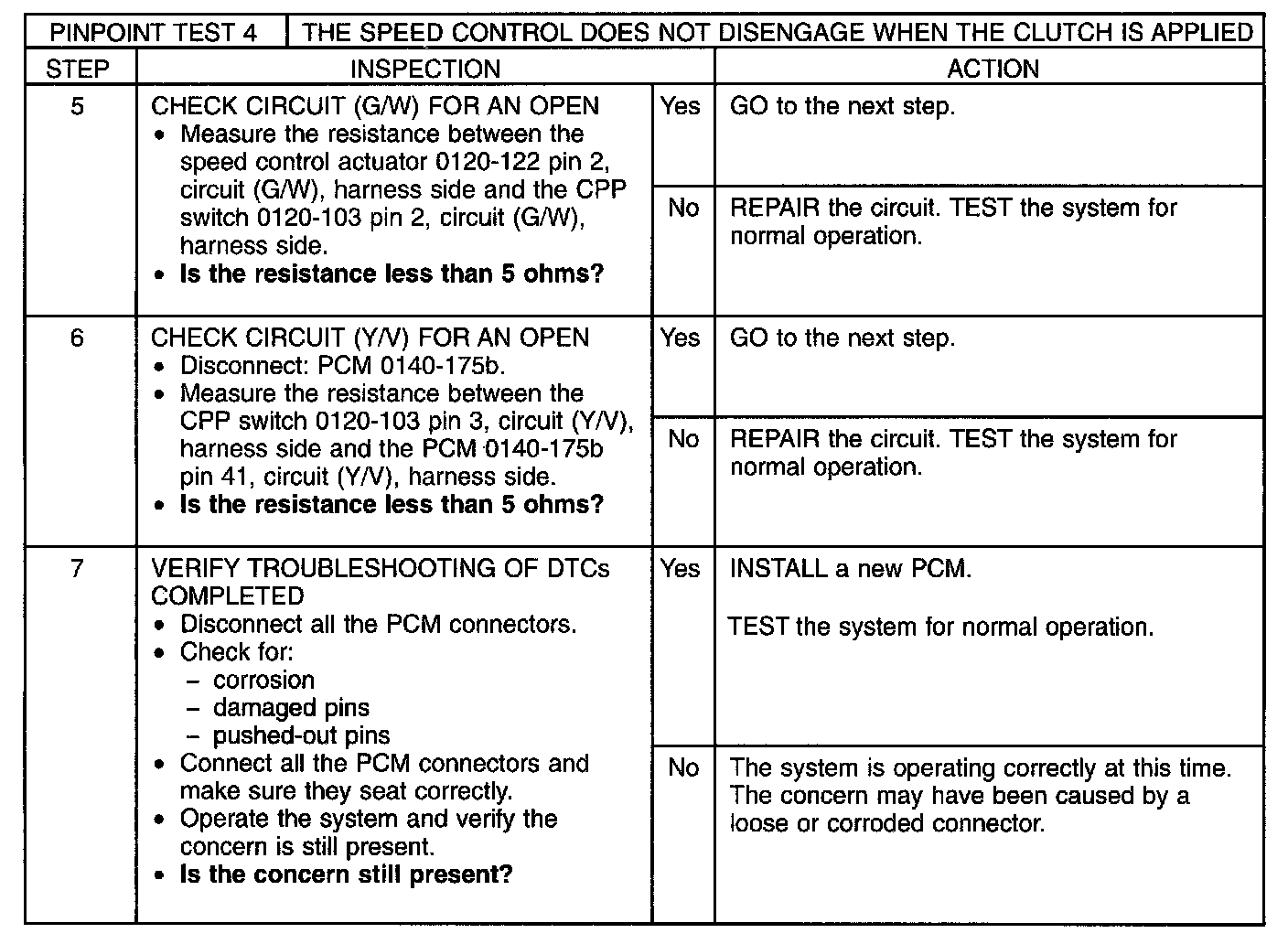

Step 5-Step 7:
