Relay Box

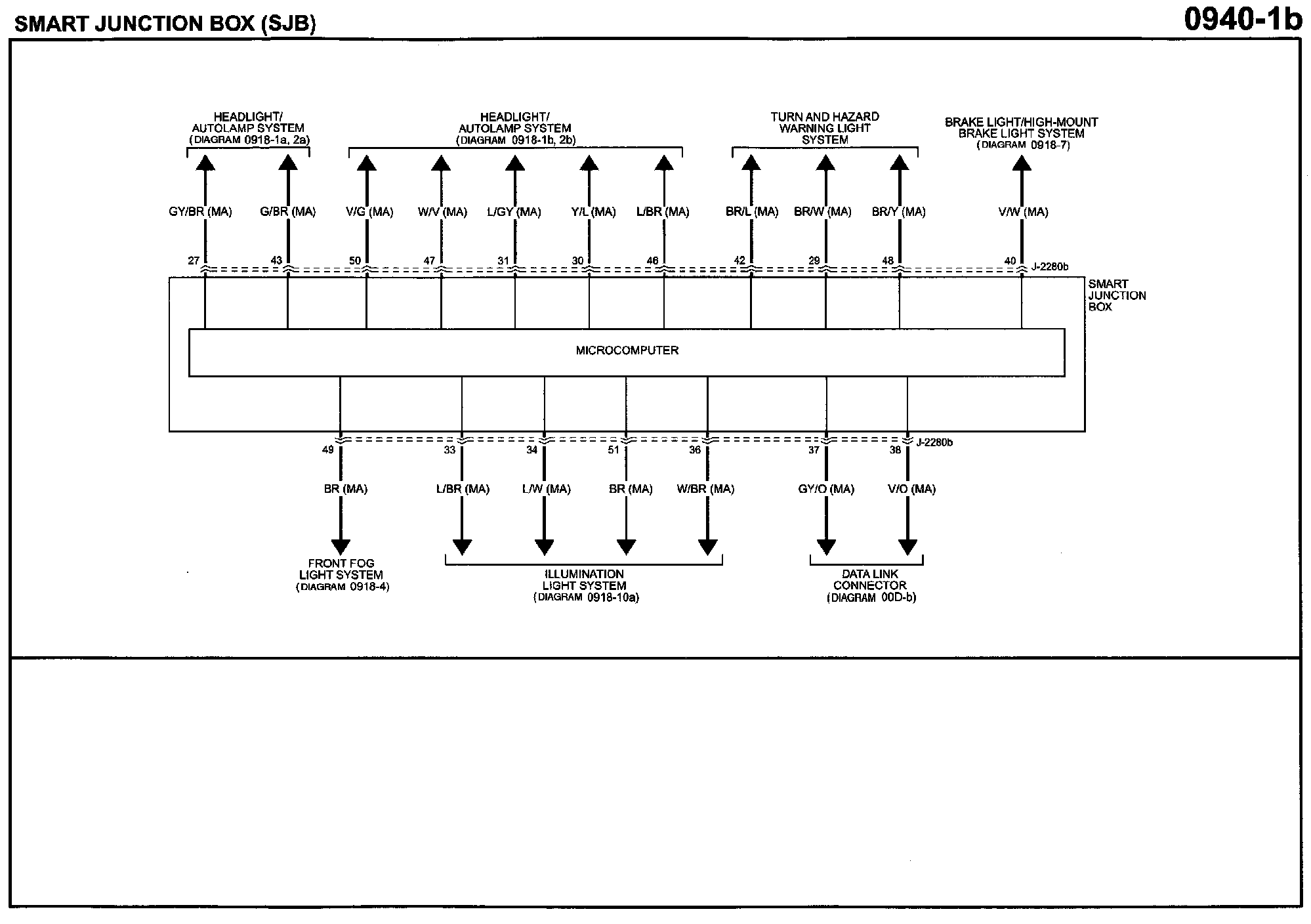

Smart Junction Box (SJB):

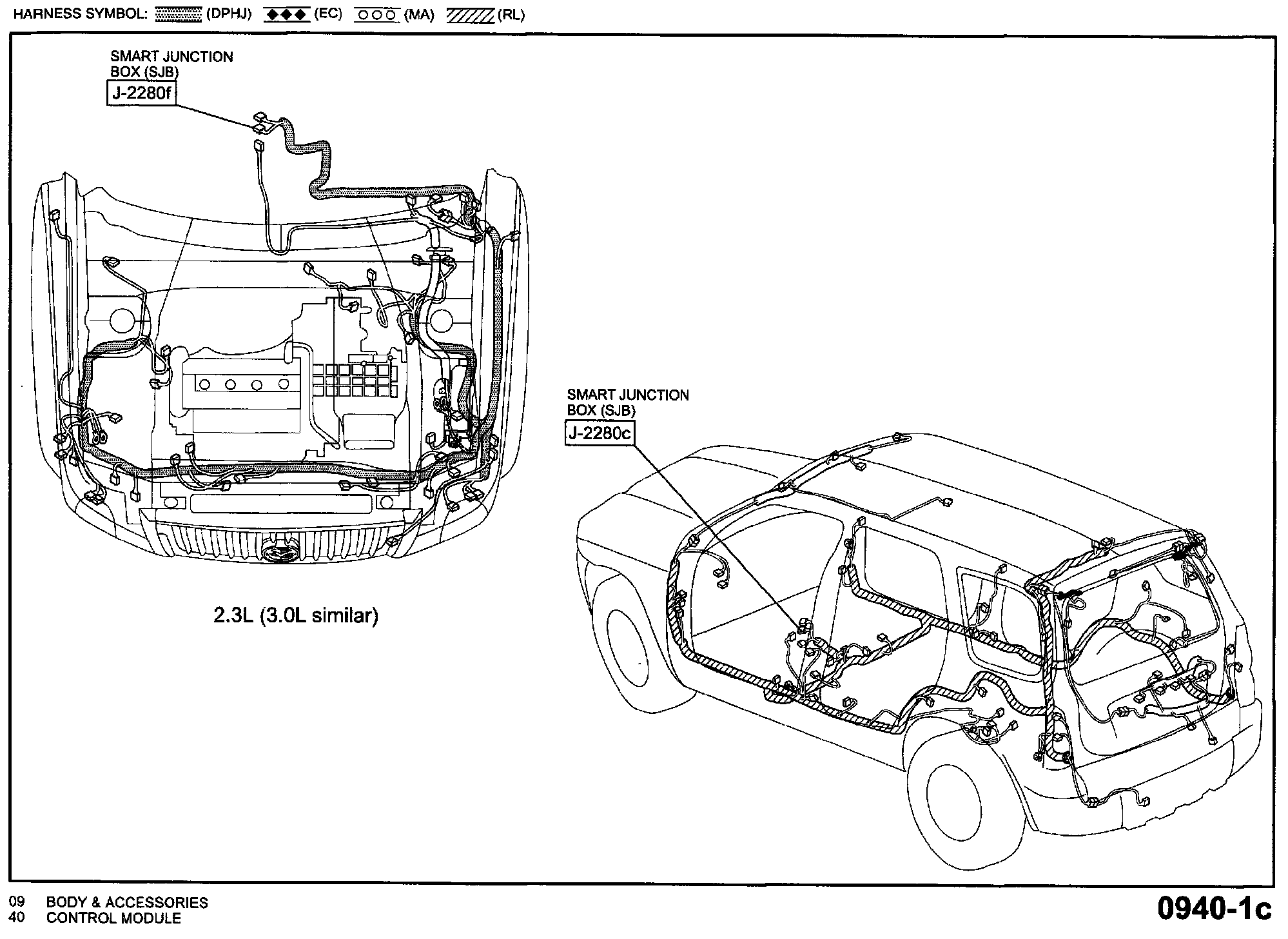

Smart Junction Box (SJB):

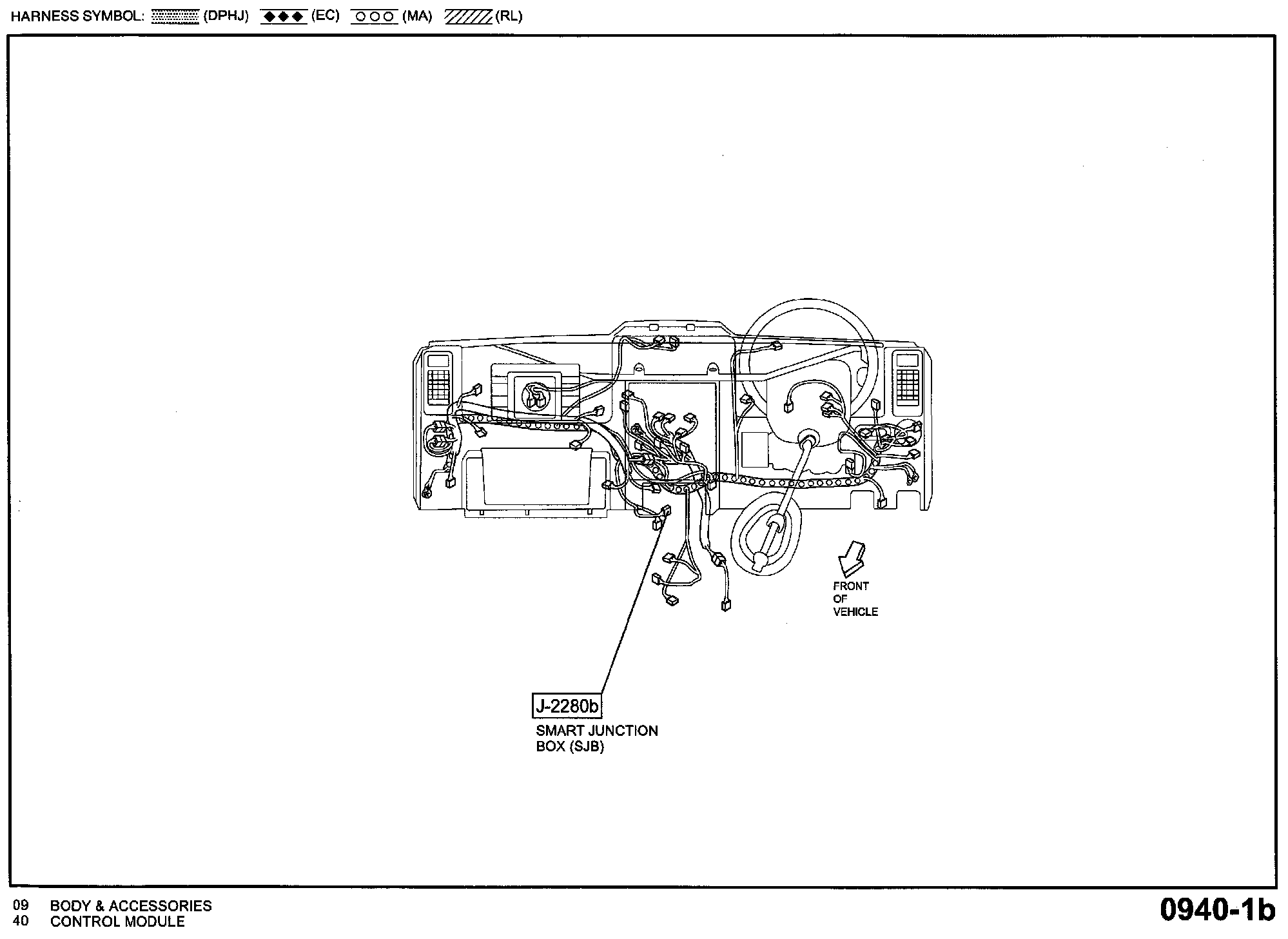

Smart Junction Box (SJB):

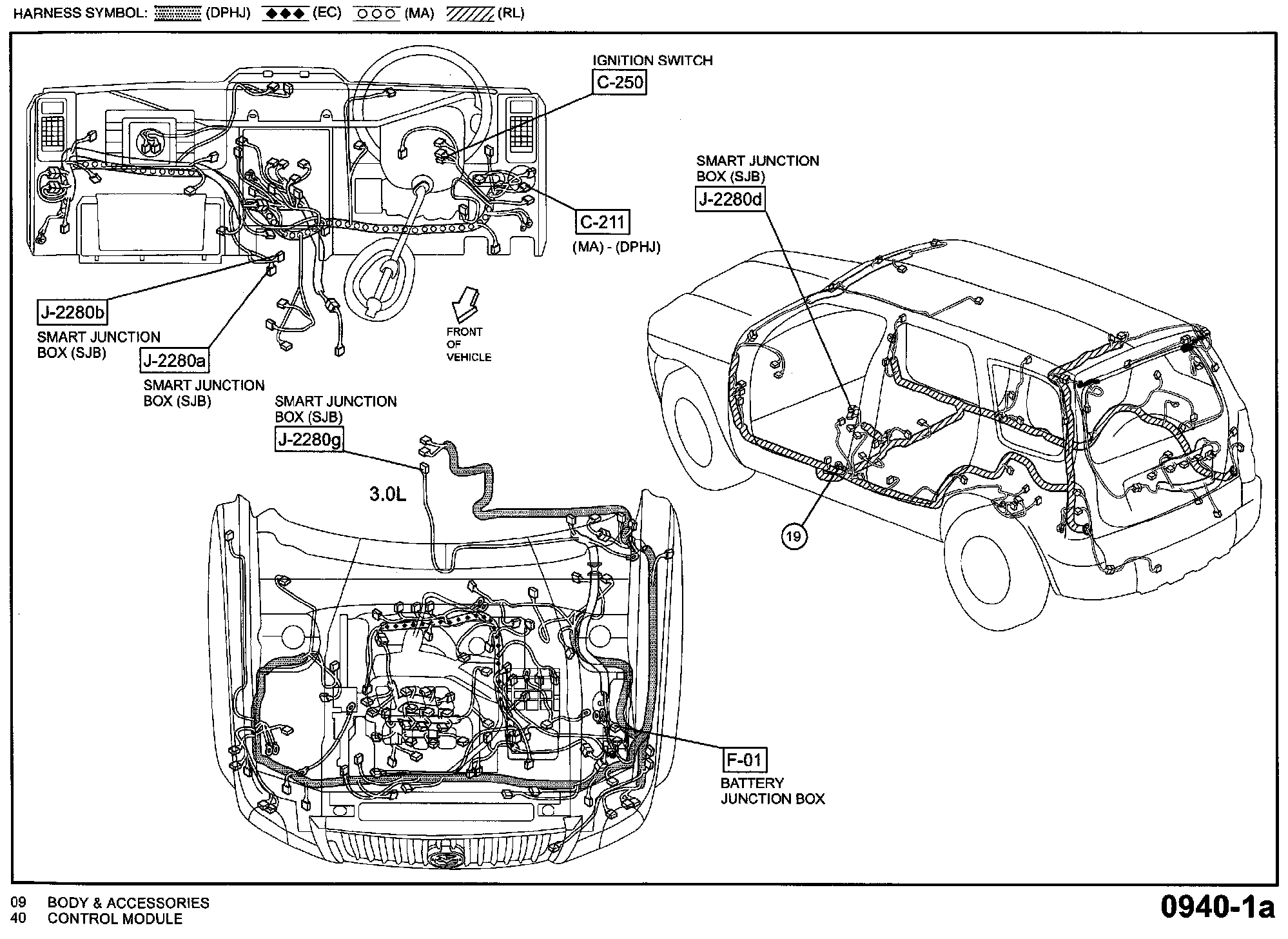

Smart Junction Box (SJB):

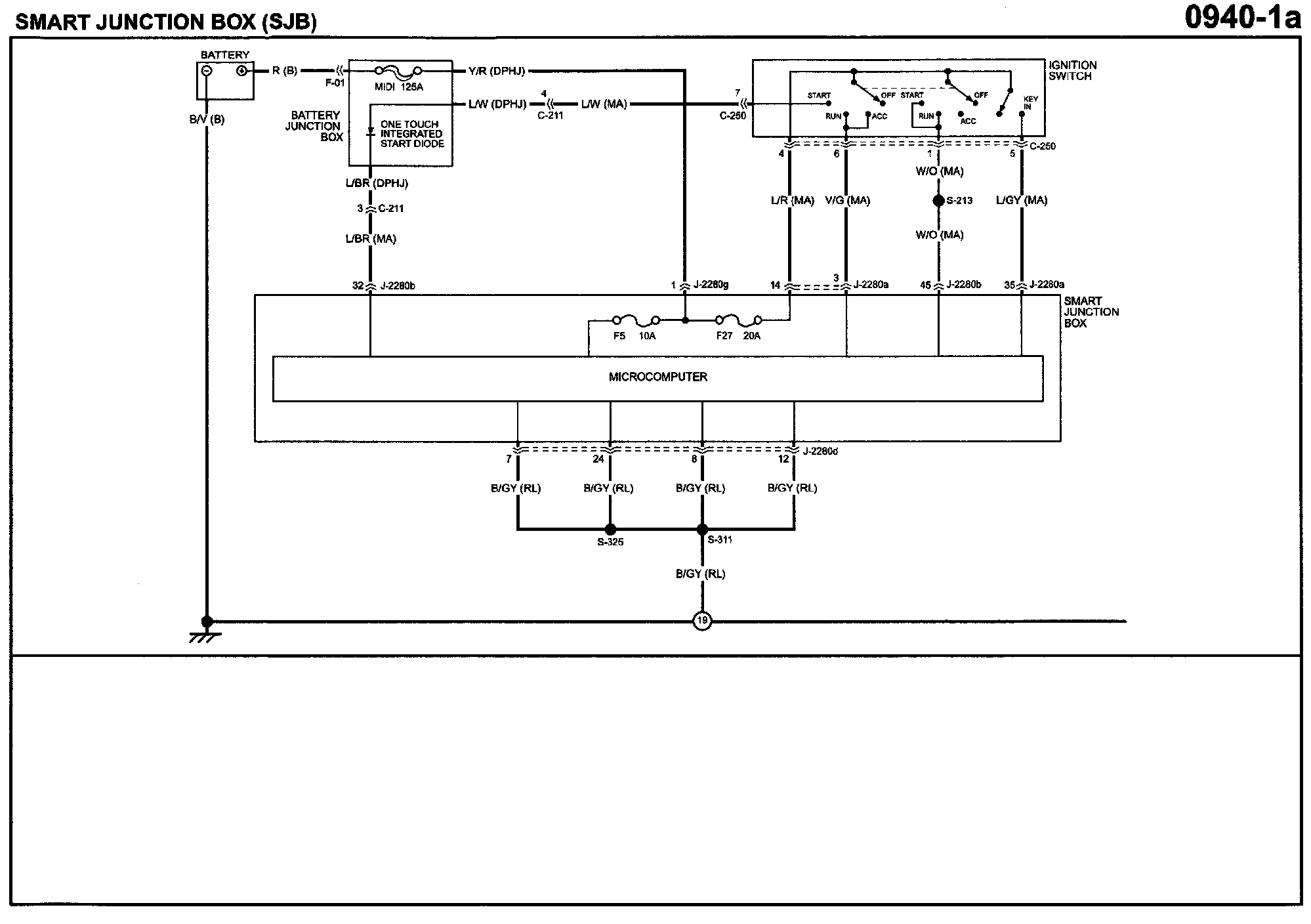

Smart Junction Box (SJB):

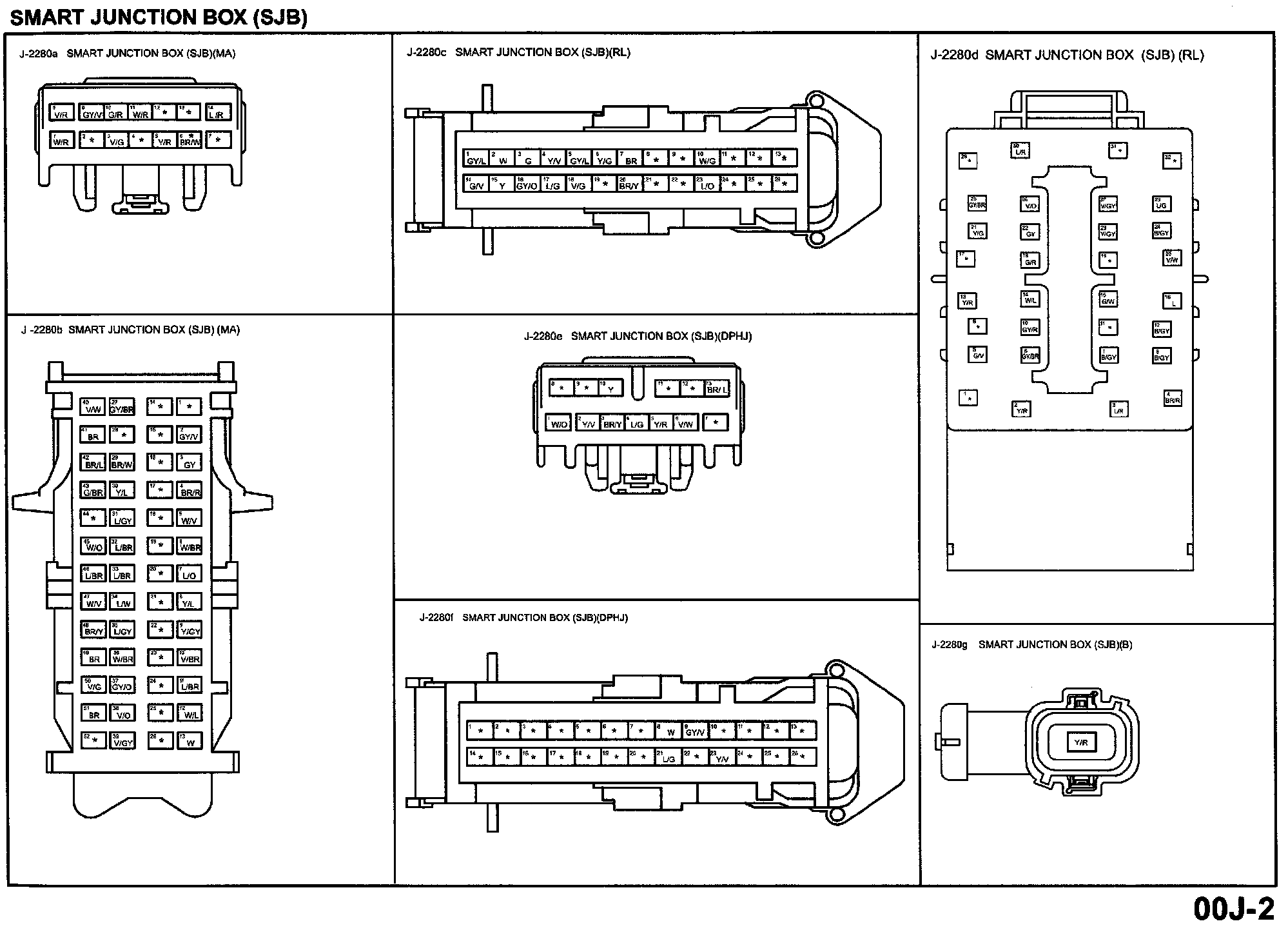

Smart Junction Box (SJB):

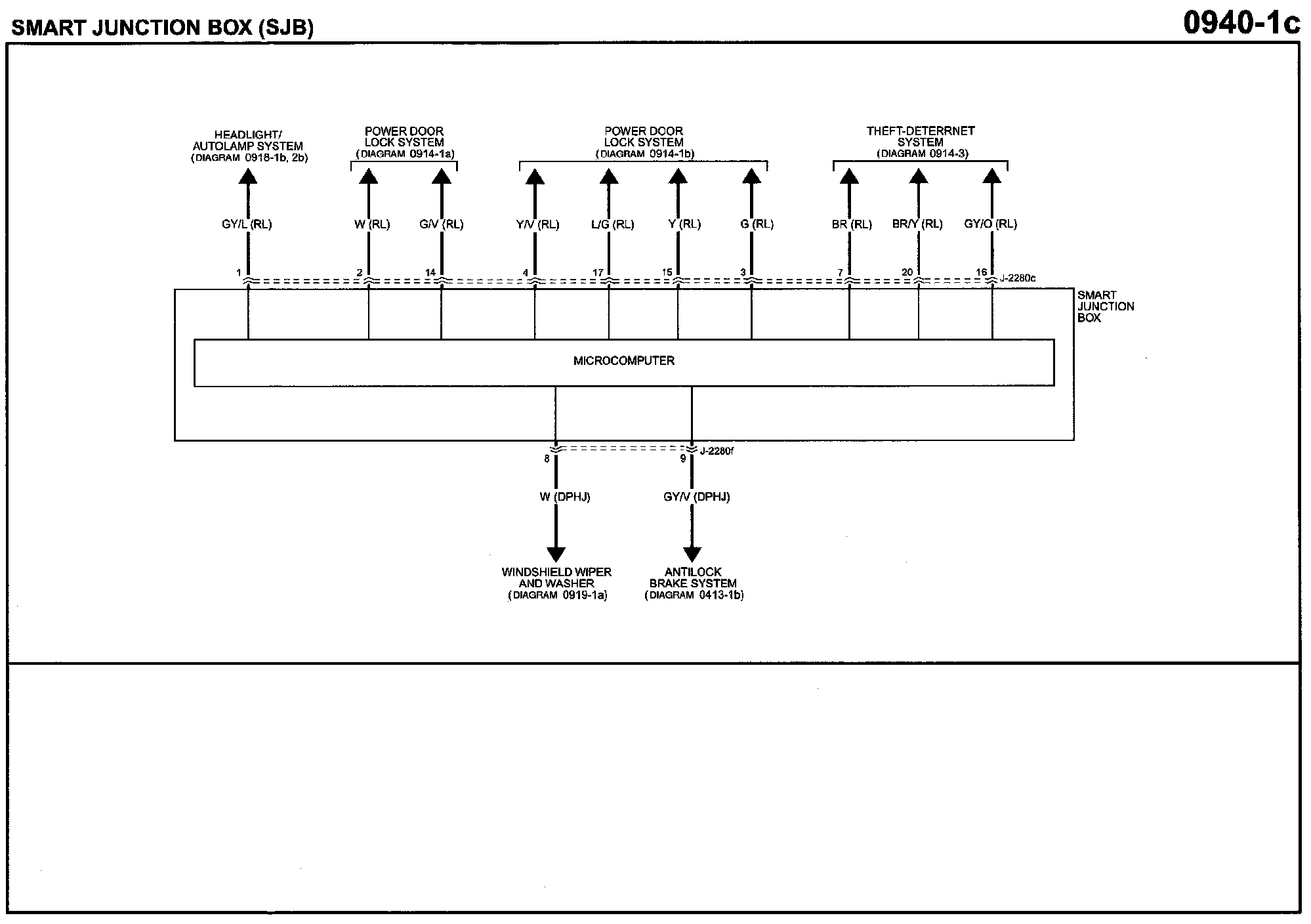

Smart Junction Box (SJB):



Smart Junction Box (SJB):
