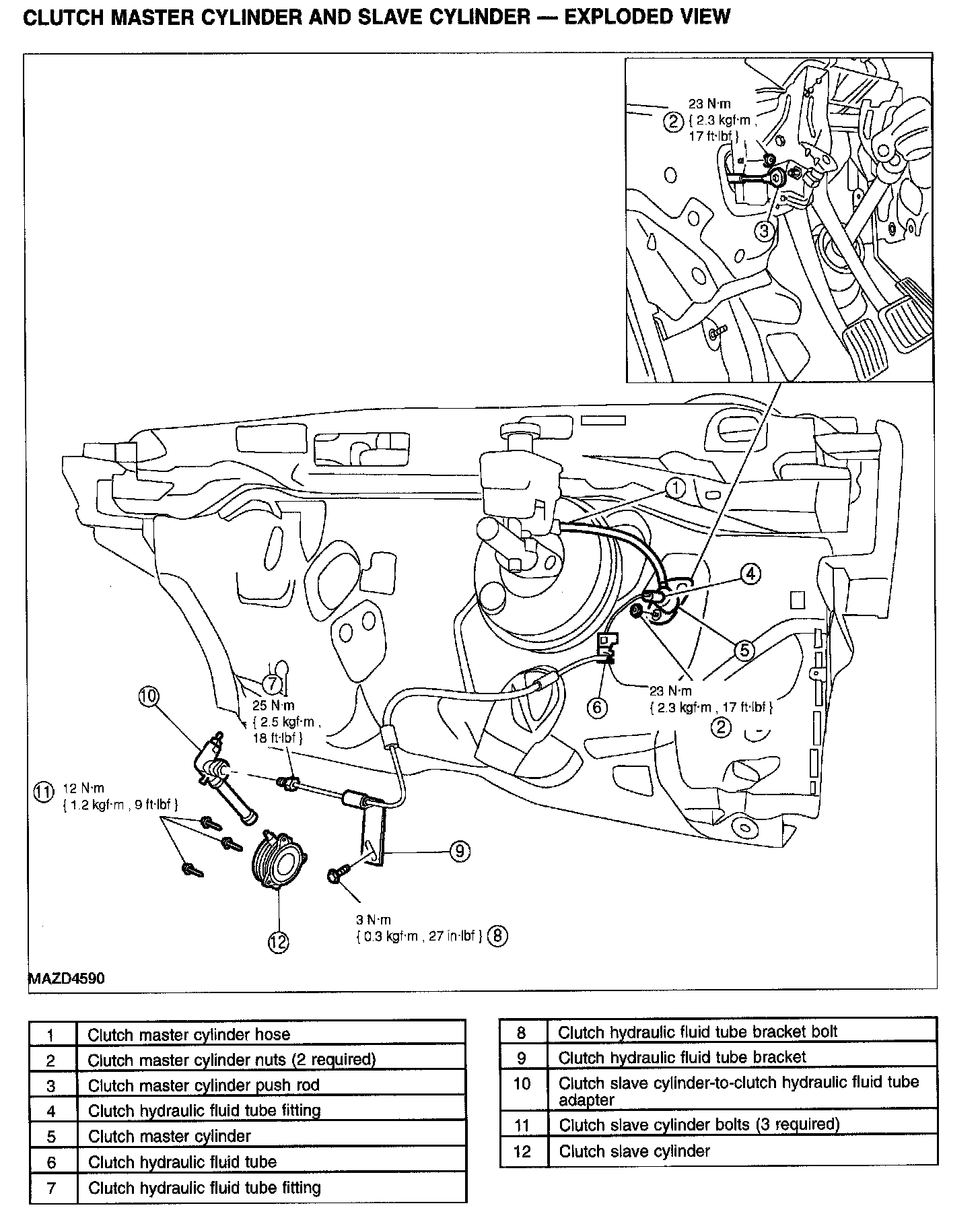

CLUTCH MASTER CYLINDER
AND SLAVE CYLINDER - EXPLODED VIEW
Clutch Master Cylinder and Slave Cylinder - Exploded View:
