Intake Manifold - 2.3L Exploded View
Intake Manifold - 2.3L Exploded View

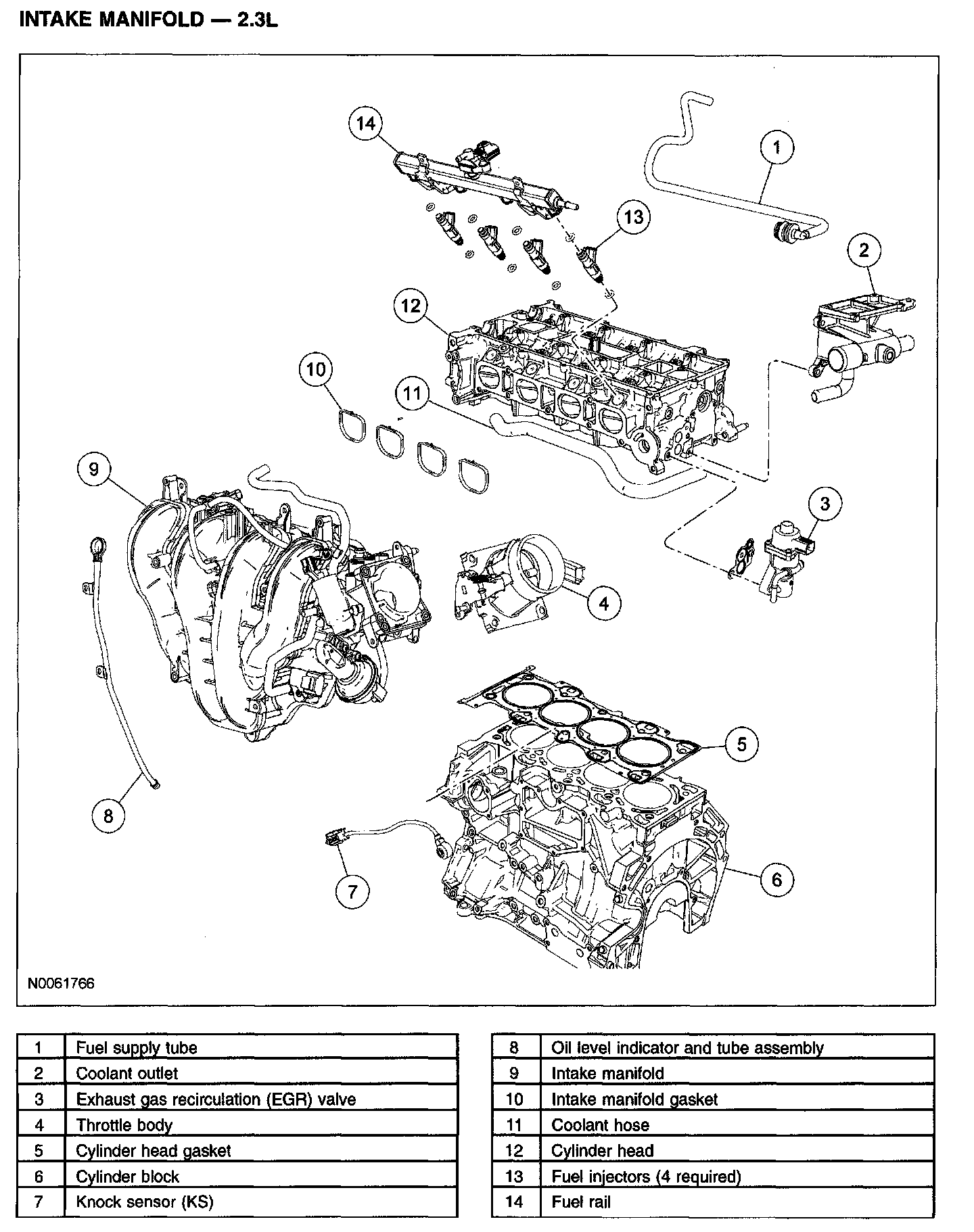

INTAKE MANIFOLD
- 2.3L EXPLODED VIEW
Intake Manifold - 2.3L:
