Fuel Delivery and Air Induction
>>
Fuel Injector
Fuel Injector
FUEL RAIL
AND
FUEL INJECTOR

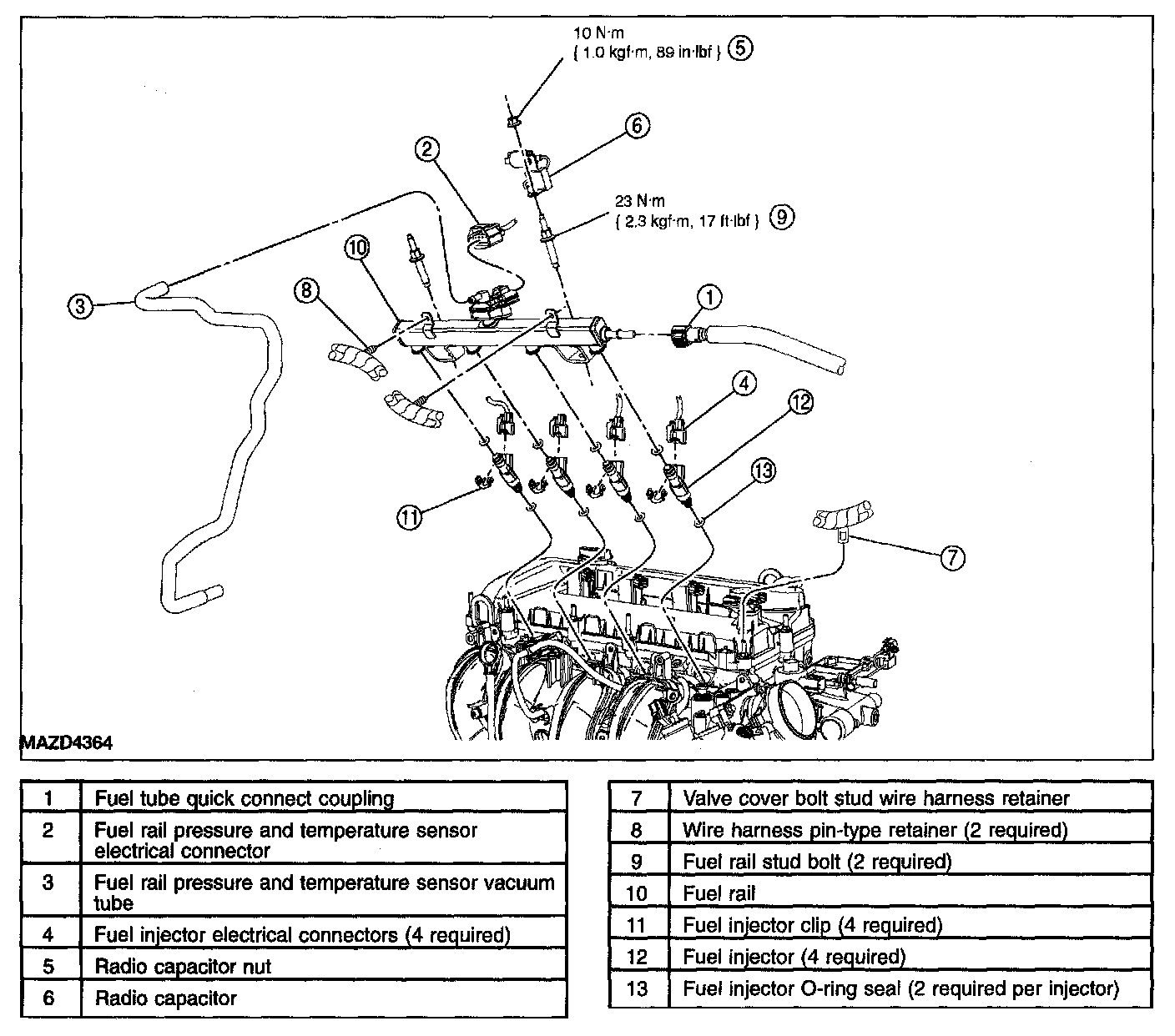

- 2.3L EXPLODED VIEW
Fuel Rail And Fuel Injector-2.3L Exploded View:
1.
For addition information, see the procedure.
