Suspension Strut / Shock Absorber

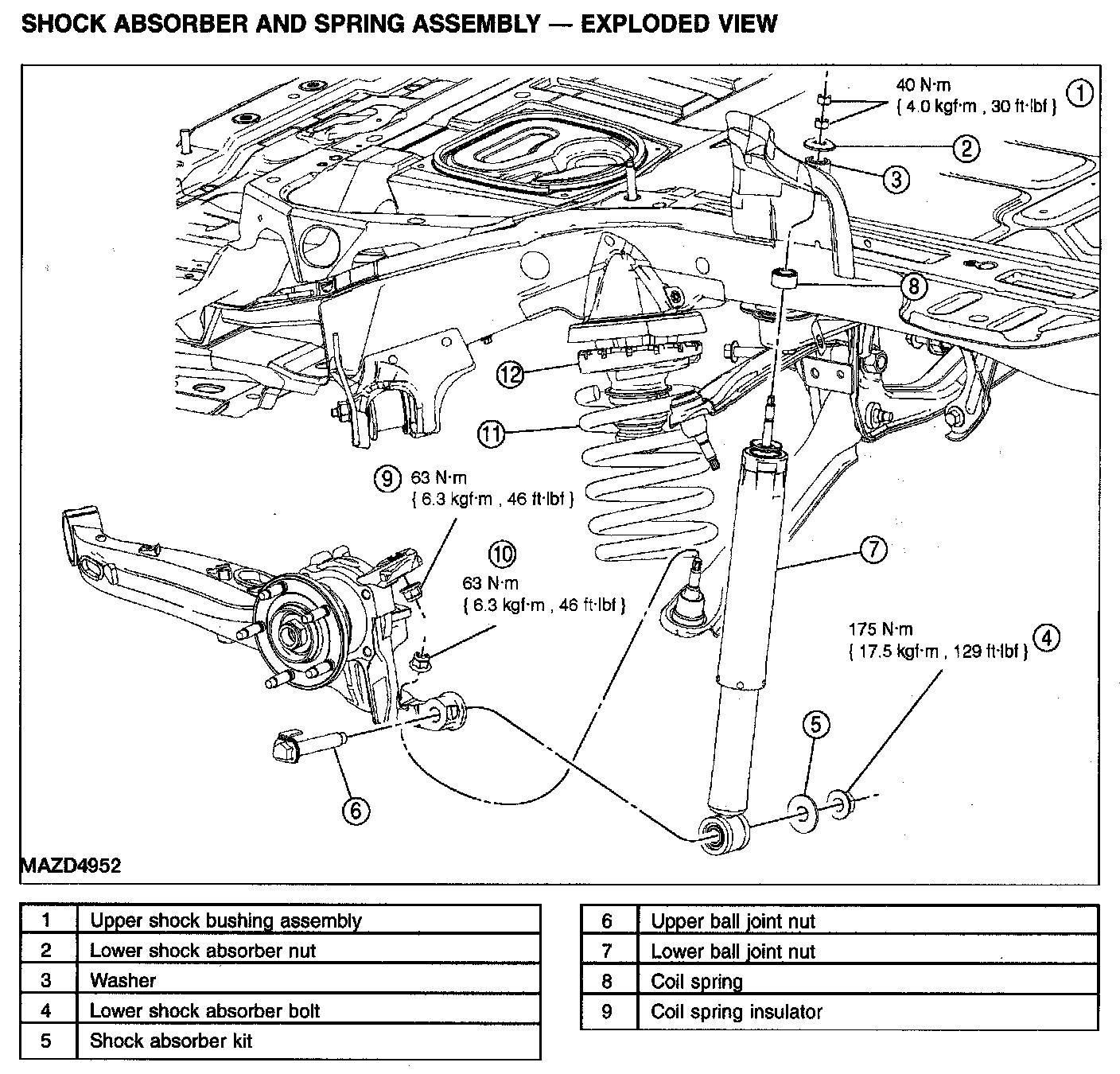

SHOCK ABSORBER AND SPRING ASSEMBLY - EXPLODED VIEW
Shock Absorber And Spring Assembly - Exploded View:
