Intake Manifold: Service and Repair

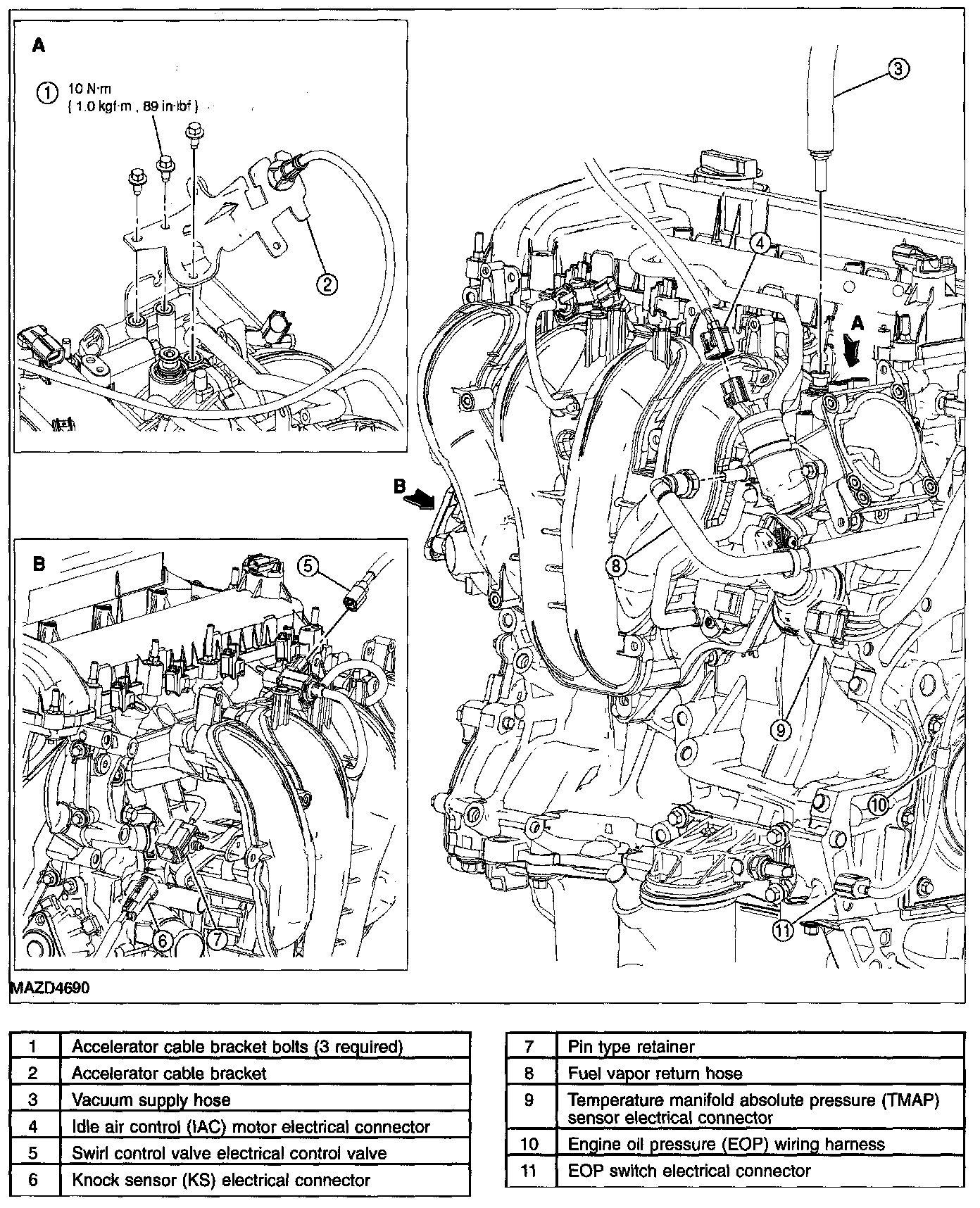

INTAKE MANIFOLD - 2.3L REMOVAL/INSTALLATIONIntake Manifold-2.3L Removal/Installation (Part 1):

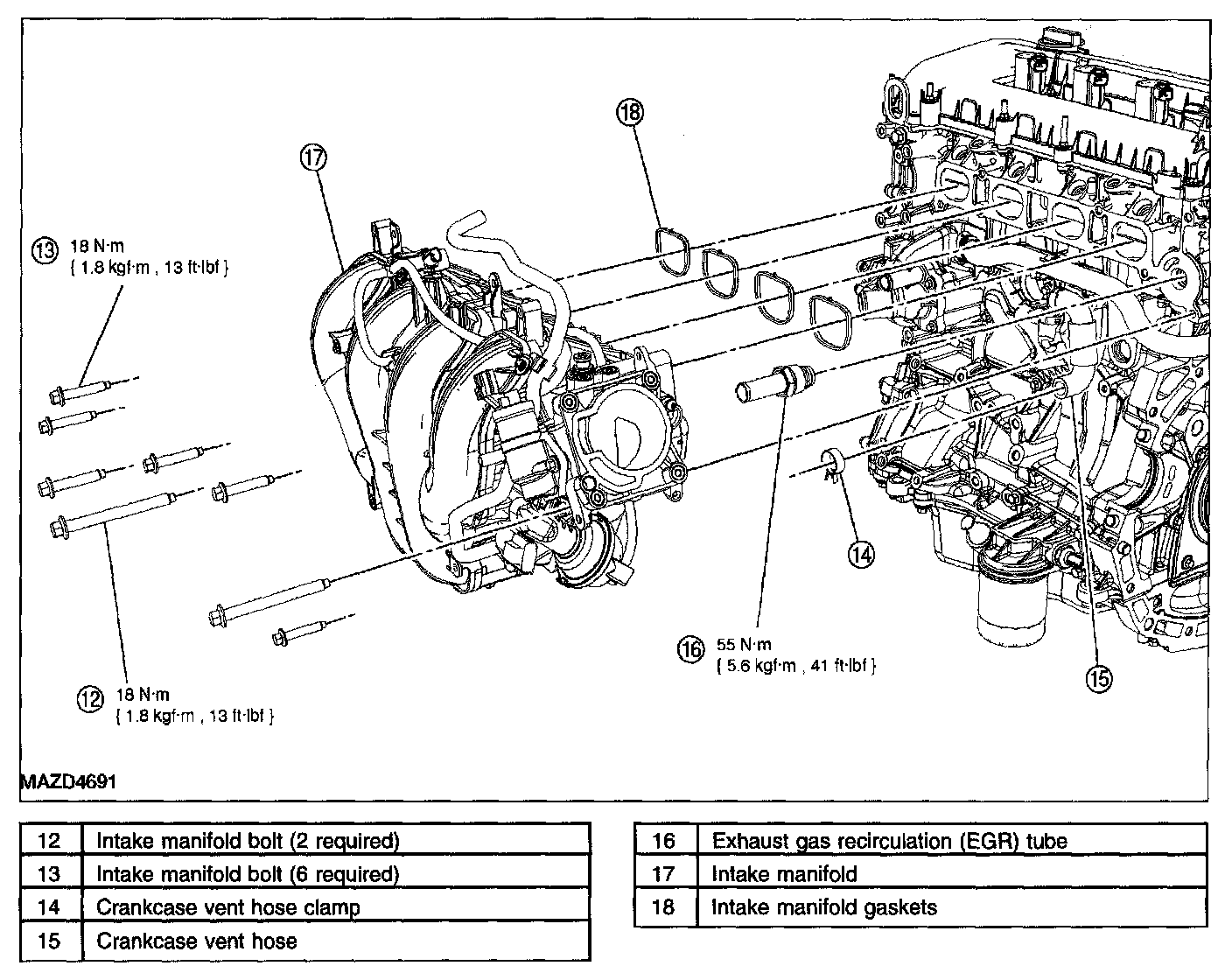

Intake Manifold-2.3L Removal/Installation (Part 2):
1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING.
2. Remove the fuel rail.
3. Remove the throttle body.
4. Remove the oil level indicator tube.

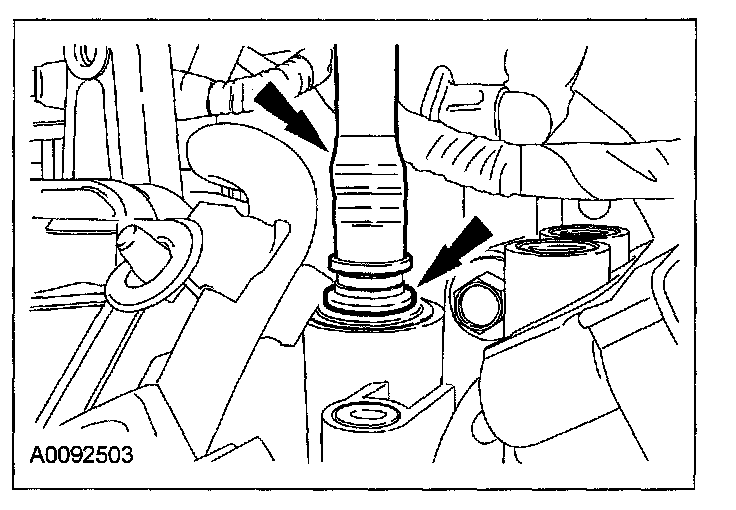

5. Disconnect the power brake booster vacuum tube.
- Depress the quick release locking ring.
- Pull the vacuum tube out of the quick release fitting.
6. Disconnect the fuel vapor return hose from the intake manifold.
7. Remove the 3 bolts and position the accelerator cable bracket aside.
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
8. Disconnect the idle air control (IAC) motor electrical connector.
9. Disconnect the swirl control valve electrical connector.
10. Disconnect the knock sensor (KS) electrical connector.
- Detach the electrical connector pin-type retainer.
11. Disconnect the temperature manifold absolute pressure (TMAP) sensor electrical connector.
12. Disconnect the engine oil pressure (EOP) switch electrical connector.
- Detach the wiring harness pin-type retainer and position the wiring harness aside.
13. Remove the 8 bolts and position the intake manifold aside to access the crankcase ventilation hose clamp and the EGR tube.
- To install, tighten to 18 N.m {1.8 kgf.m, 13 ft.lbf}.
NOTE: There are 2 different size bolts used. Mark the location of the bolts to make sure they are installed in the correct location.
14. Release the clamp and disconnect the crankcase ventilation hose.
15. Remove the exhaust gas recirculation (EGR) tube.
- Tighten to 55 N.m {5.6 kgf.m, 41 ft.lbf}.
16. Remove the intake manifold and gaskets.
17. To install, reverse the removal procedure.
- Inspect and install new intake manifold gaskets if necessary.
