Symptom Related Diagnostic Procedures

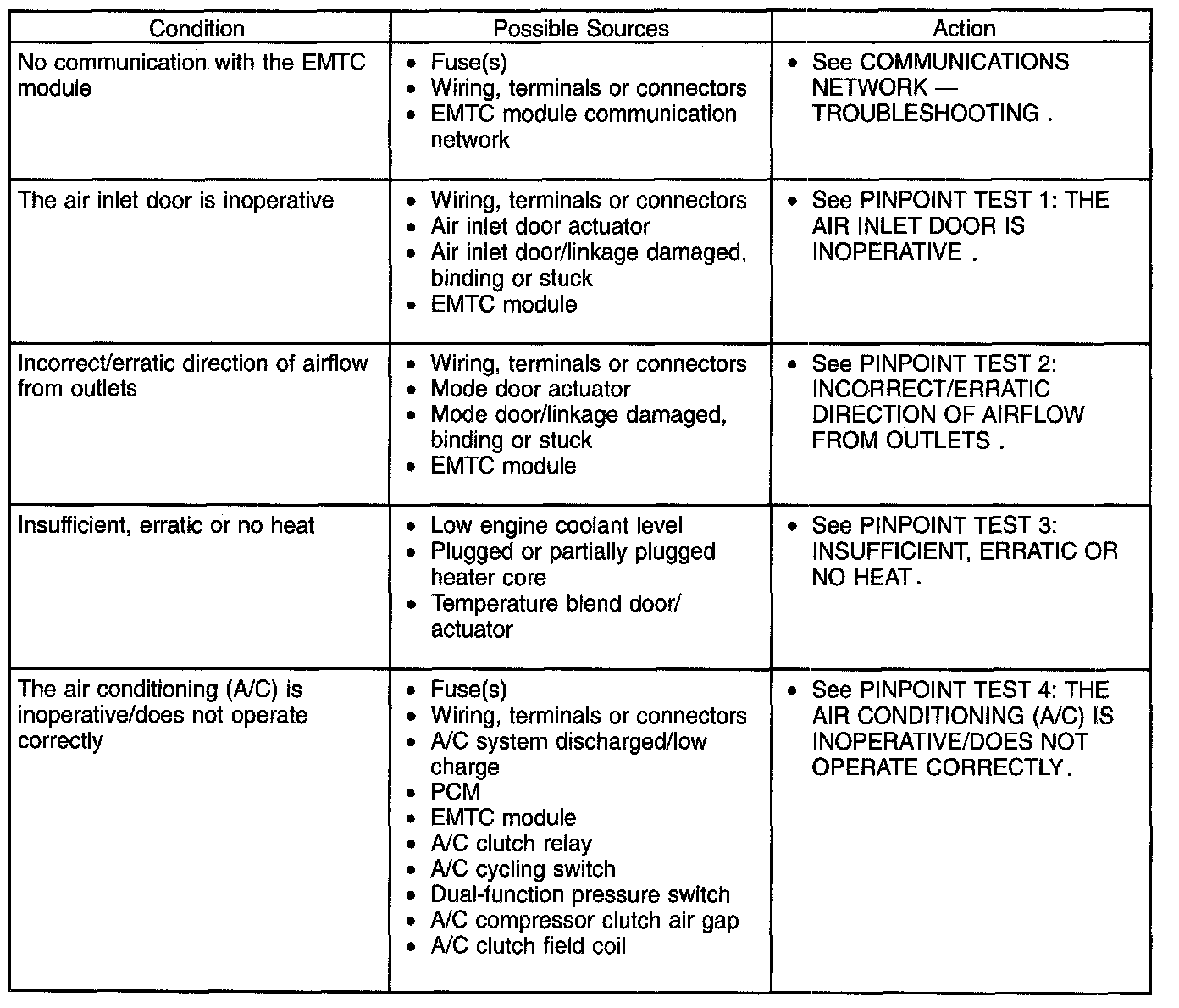

SYMPTOM TROUBLESHOOTING CHART - CLIMATE CONTROL

NOTE: Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. See DIAGNOSTIC TROUBLE CODE (DTC) INDEX - POWERTRAIN CONTROL MODULE (PCM).
