Backup Lamp Switch: Service and Repair

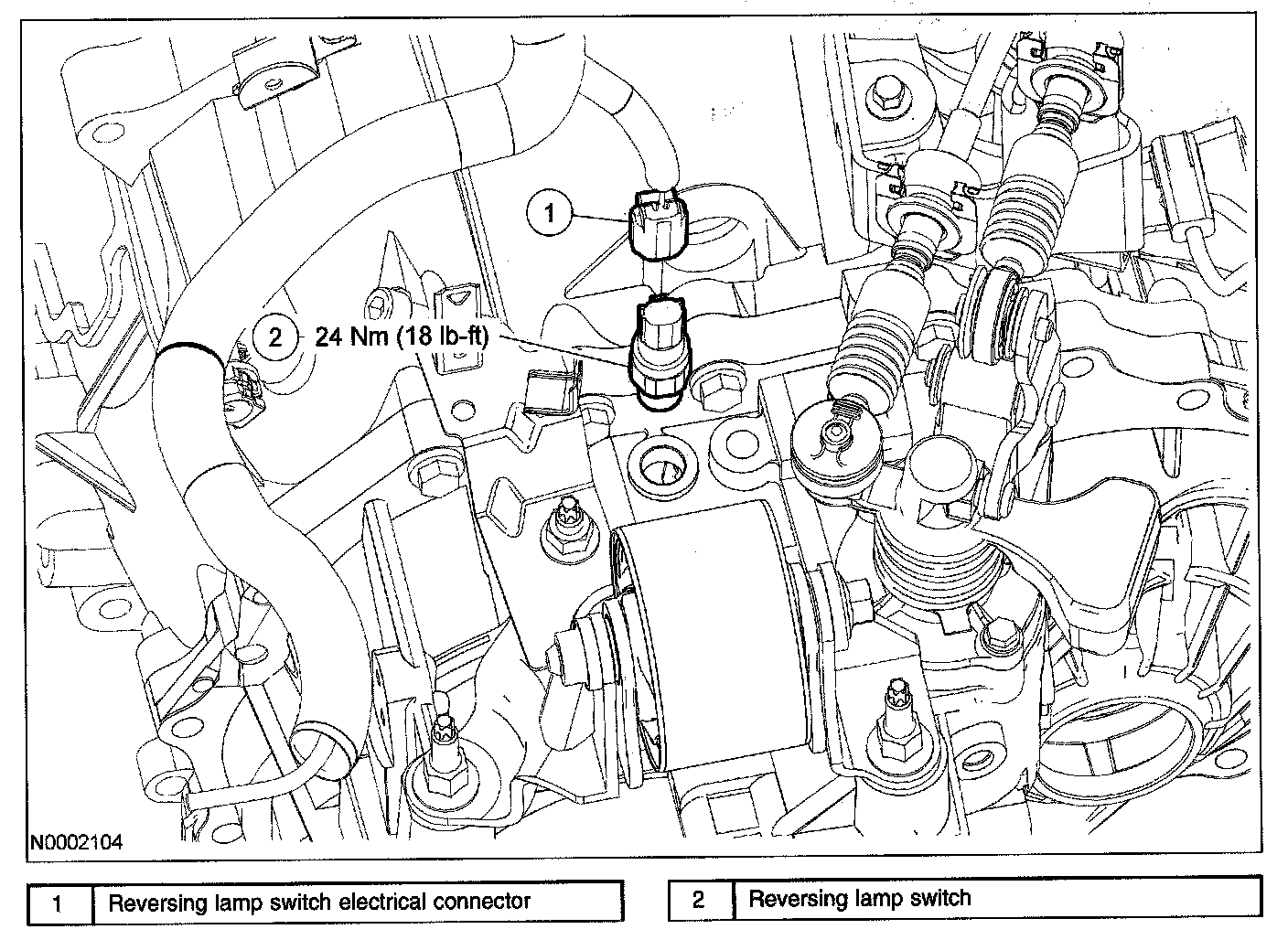

REVERSING LAMP SWITCH REMOVAL/INSTALLATION






1. Disconnect the reversing lamp switch electrical connector.
2. Remove the reversing lamp switch.
- To install, tighten to 24 N.m (2.4 kgf.m, 18 ft.lbf).

3. To install, reverse the removal procedure.
