Cargo Lamp: Service and Repair

CARGO LAMP REMOVAL/INSTALLATION
1. Disconnect the battery ground cable. See BATTERY DISCONNECT.

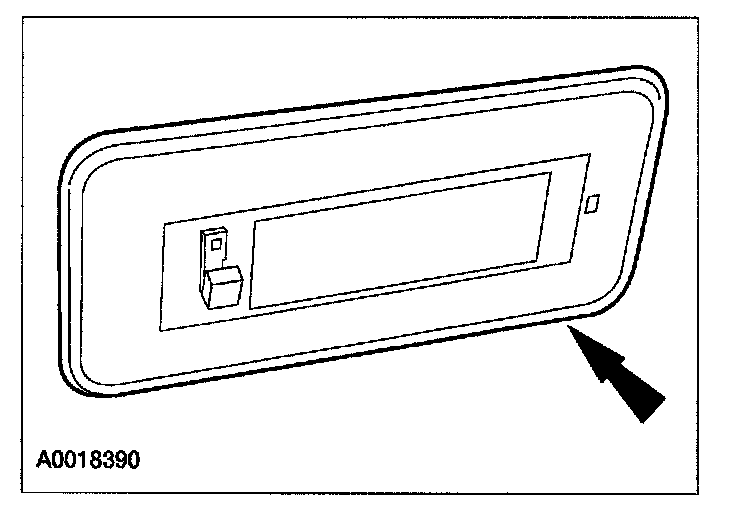

2. Remove the cargo lamp assembly from the headliner.

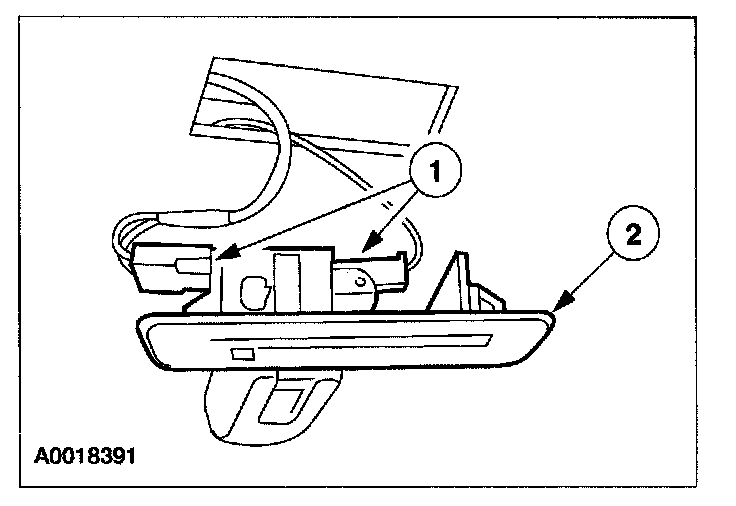

3. Disconnect the electrical connectors.
1. Remove the cargo lamp assembly.

4. To install, reverse the removal procedure.
