Dimmer Switch: Testing and Inspection

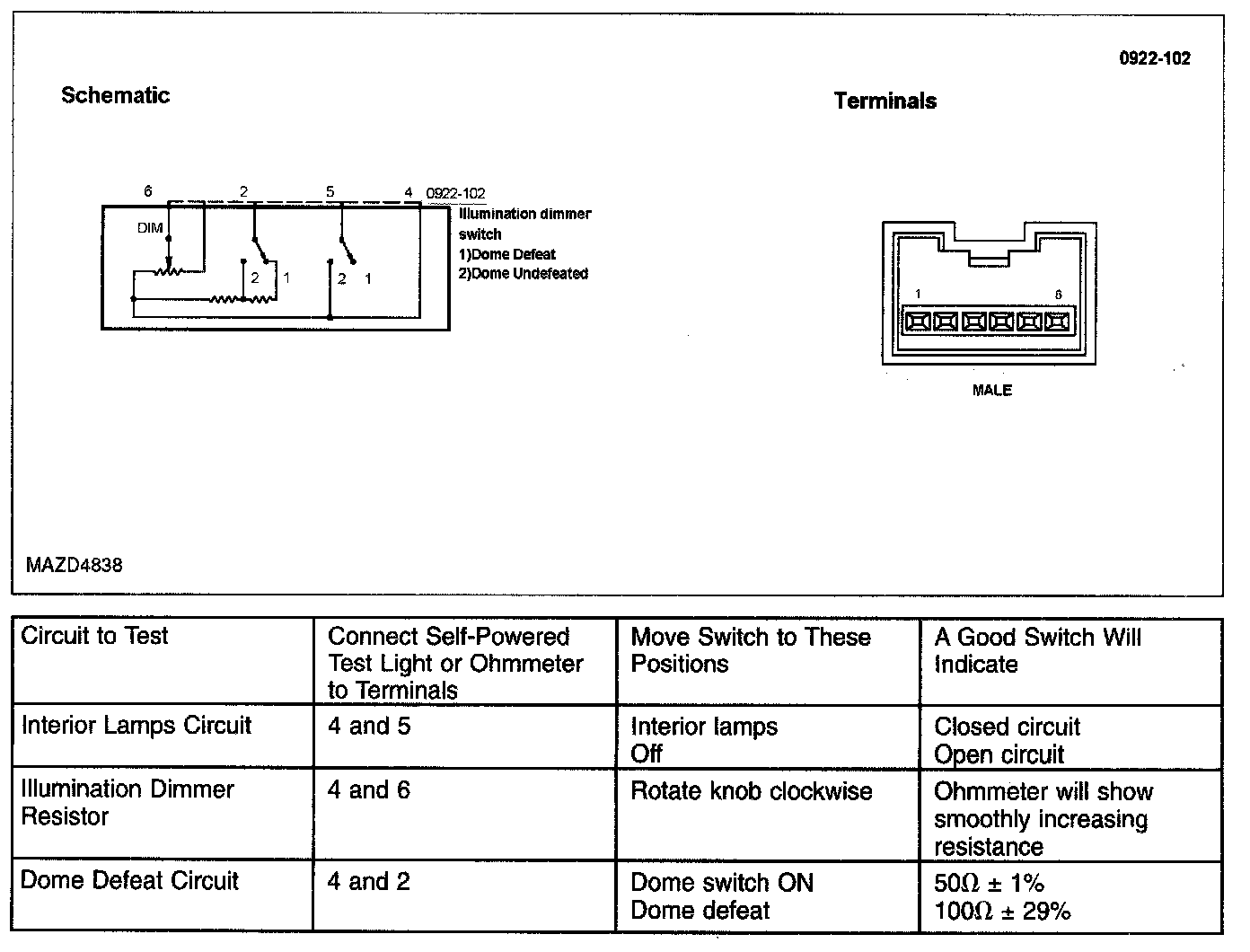

COMPONENT TEST - INSTRUMENT PANEL DIMMER SWITCH
1. Remove the instrument panel dimmer switch.
2. Inspect for continuity between the instrument panel dimmer switch terminals using a self-powered test light or an ohmmeter.
