Fog/Driving Lamp: Service and Repair

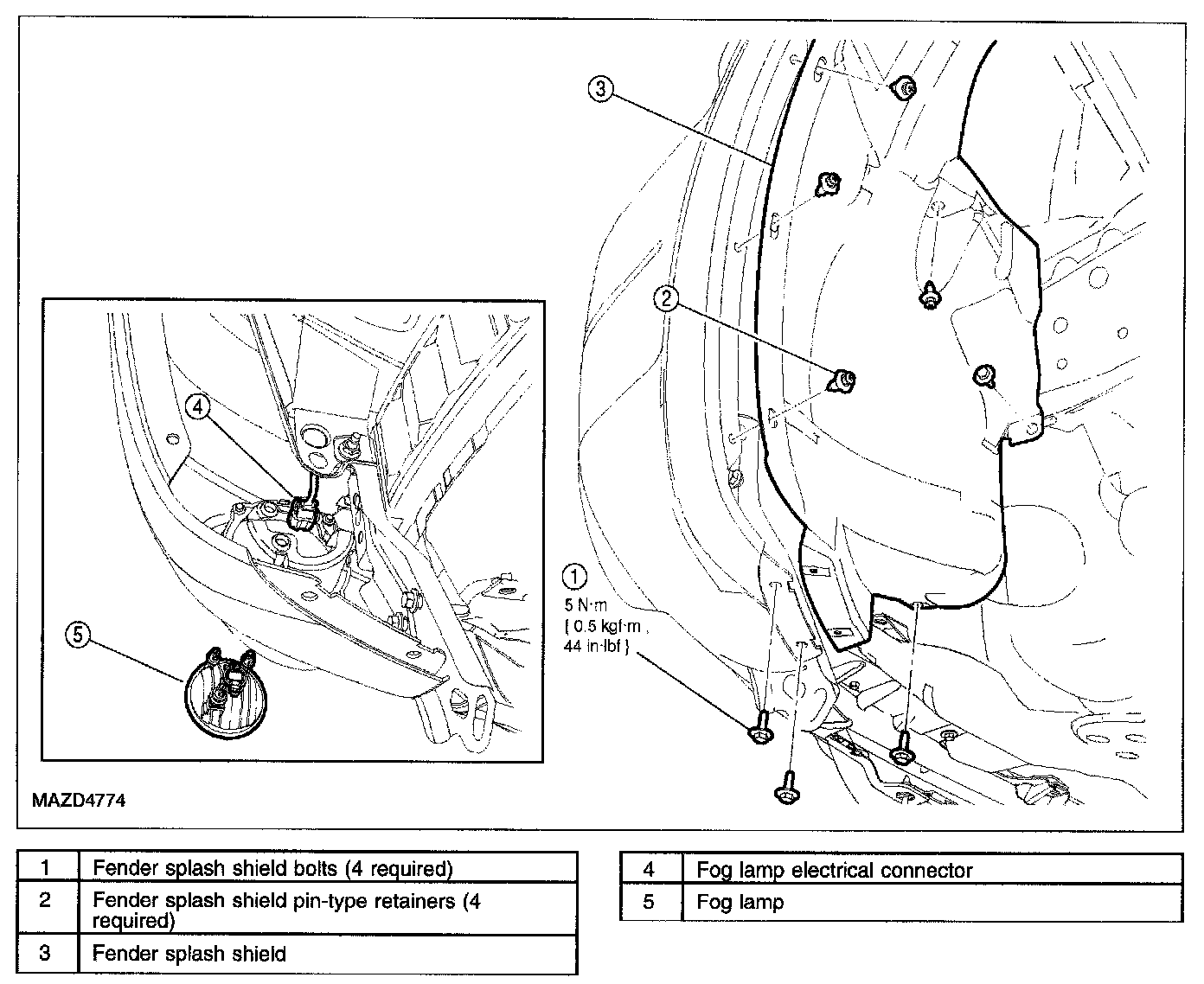

FOG LAMP REMOVAL/INSTALLATION






NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. With the vehicle in NEUTRAL, see LIFTING.
2. Remove the 4 fender splash shield bolts.
- To install, tighten to 5 N.m (0.5 kgf.m, 44 in.lbf).

3. Remove the 4 fender splash shield pin-type retainers.
- Position the fender splash shield aside.

4. Disconnect the fog lamp bulb electrical connector.
5. Release the 3 retainers and remove the fog lamp.
6. To install, reverse the removal procedure.
