Mazda
>>
2008
>>
Tribute 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Horn
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector End Views
Connector End Views

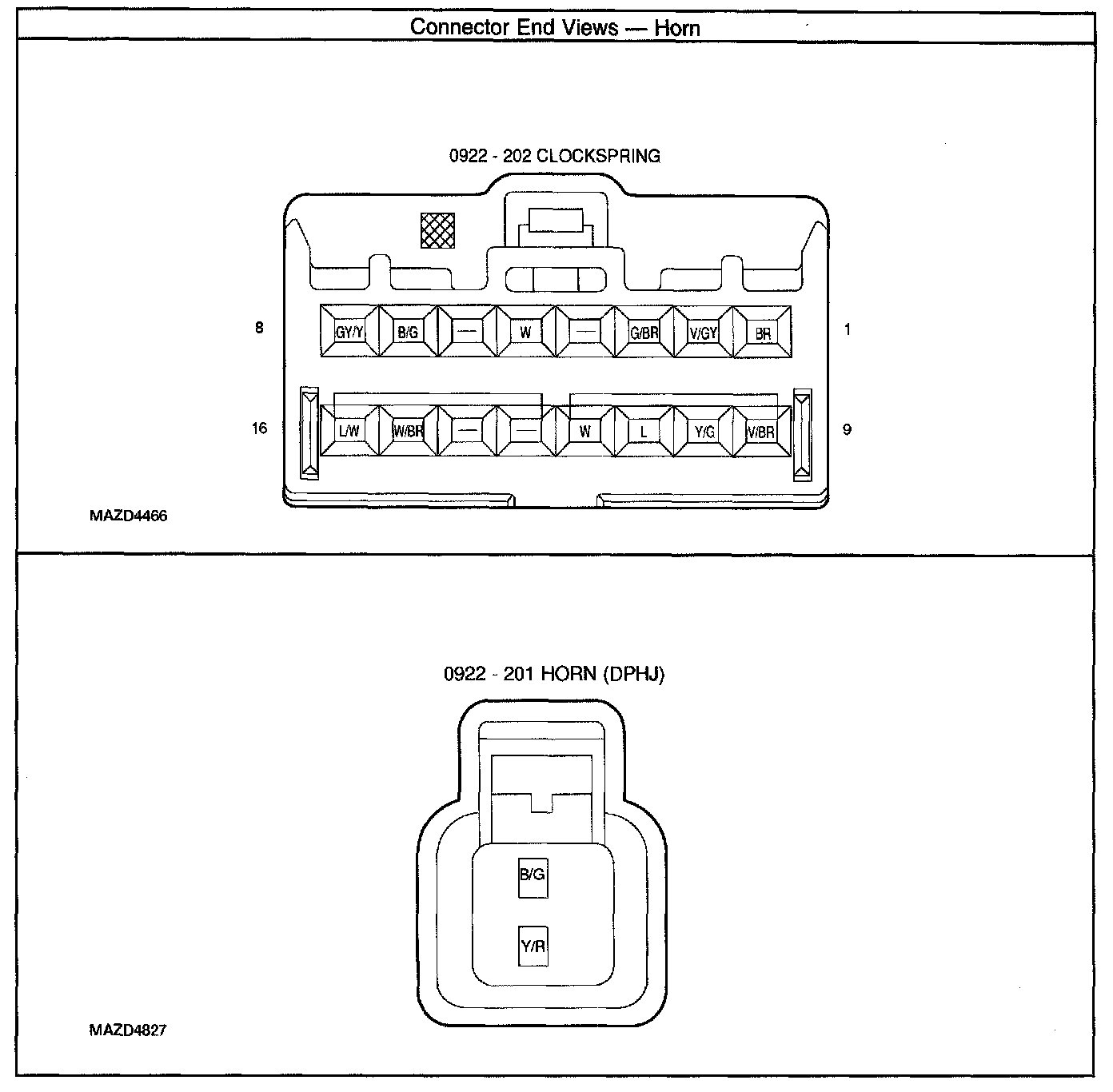

Connector End Views-Horn (Part 1):

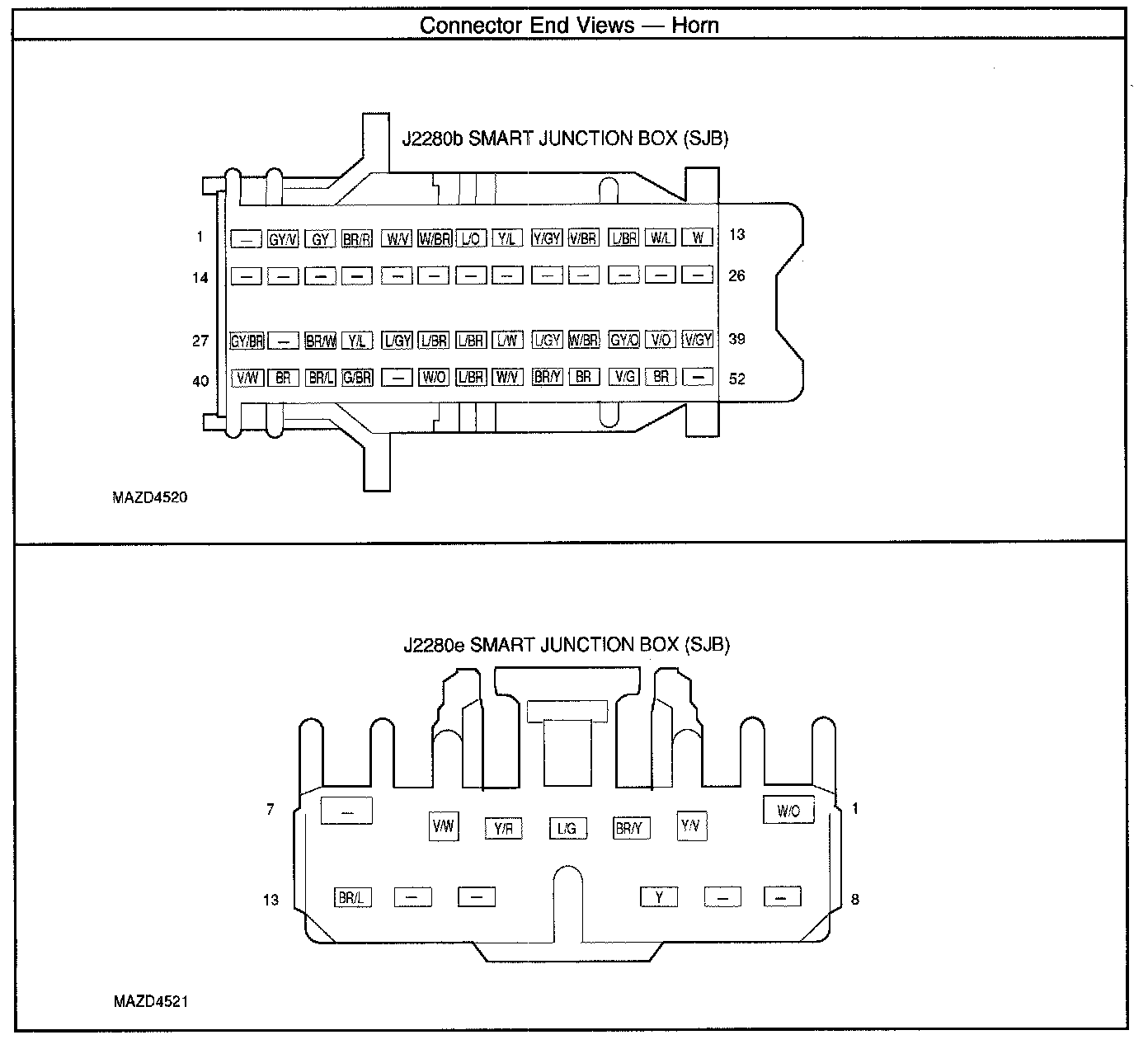

Connector End Views-Horn (Part 2):
