Pinpoint Test 10

PINPOINT TEST 10: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

Normal Operation
The illuminated entry provides courtesy lighting whenever the smart junction box (SJB) receives a lamps on/doors unlock request from the remote keyless entry (RKE) transmitter. The SJB provides the voltage and ground circuits for the courtesy/map lamps.

Possible Causes
- RKE transmitter
- SJB

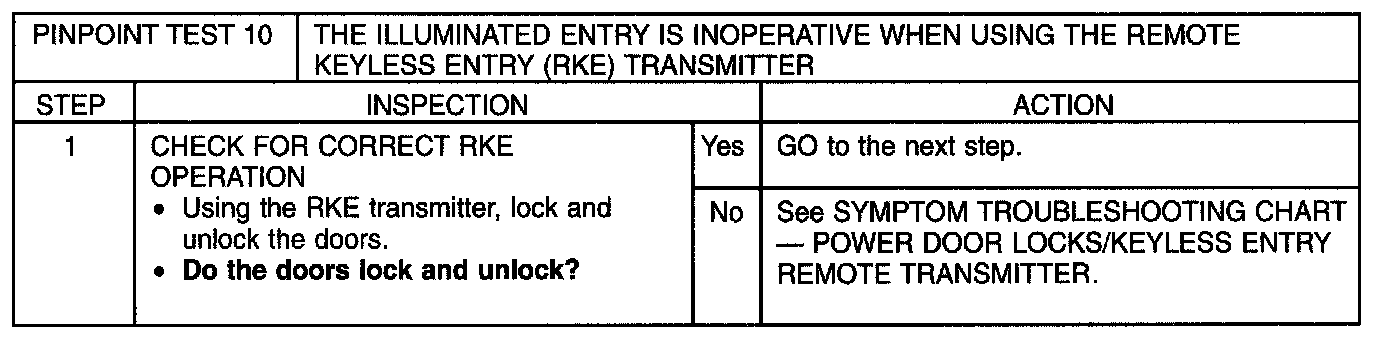

Step 1:

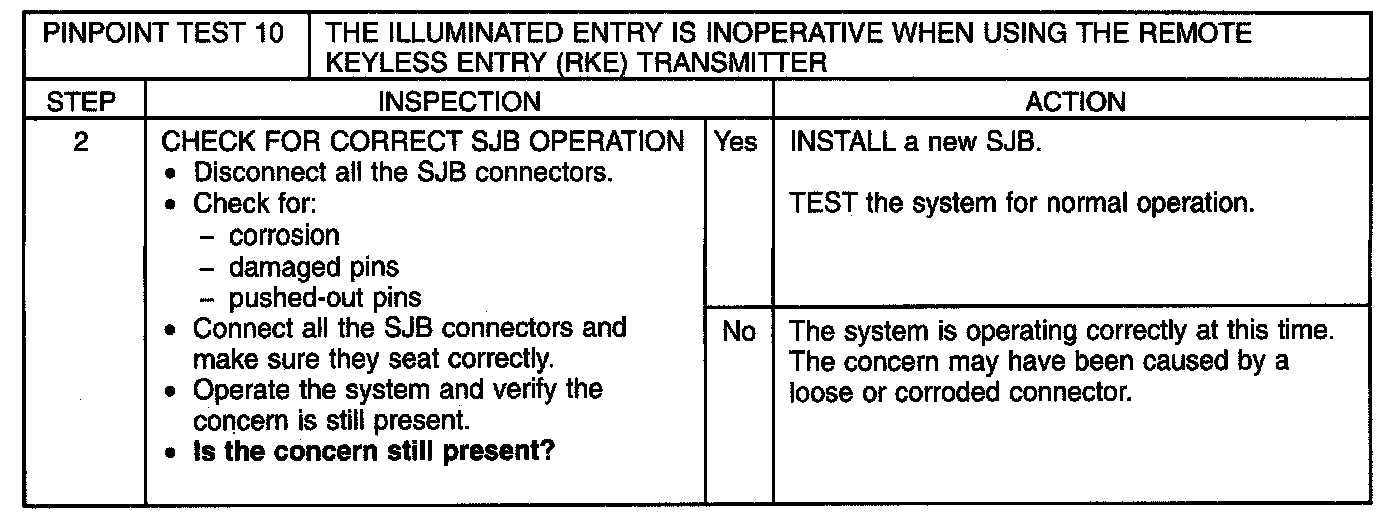

Step 2:
