Pinpoint Test 2

PINPOINT TEST 2: AN INDIVIDUAL COURTESY LAMP IS INOPERATIVE

Normal Operation
Circuit (GY/V) provides voltage to each demand lamp when activated. The demand lamps are grounded through circuit (B/GY). The battery saver function of the smart junction box (SJB) deactivates the voltage to the demand lamps after time-out.

Possible Causes
- Wiring, terminals or connectors
- Lamp assembly

Diagnostic Procedure

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

NOTE: Make sure the interior lamp switches are in the DOOR position.

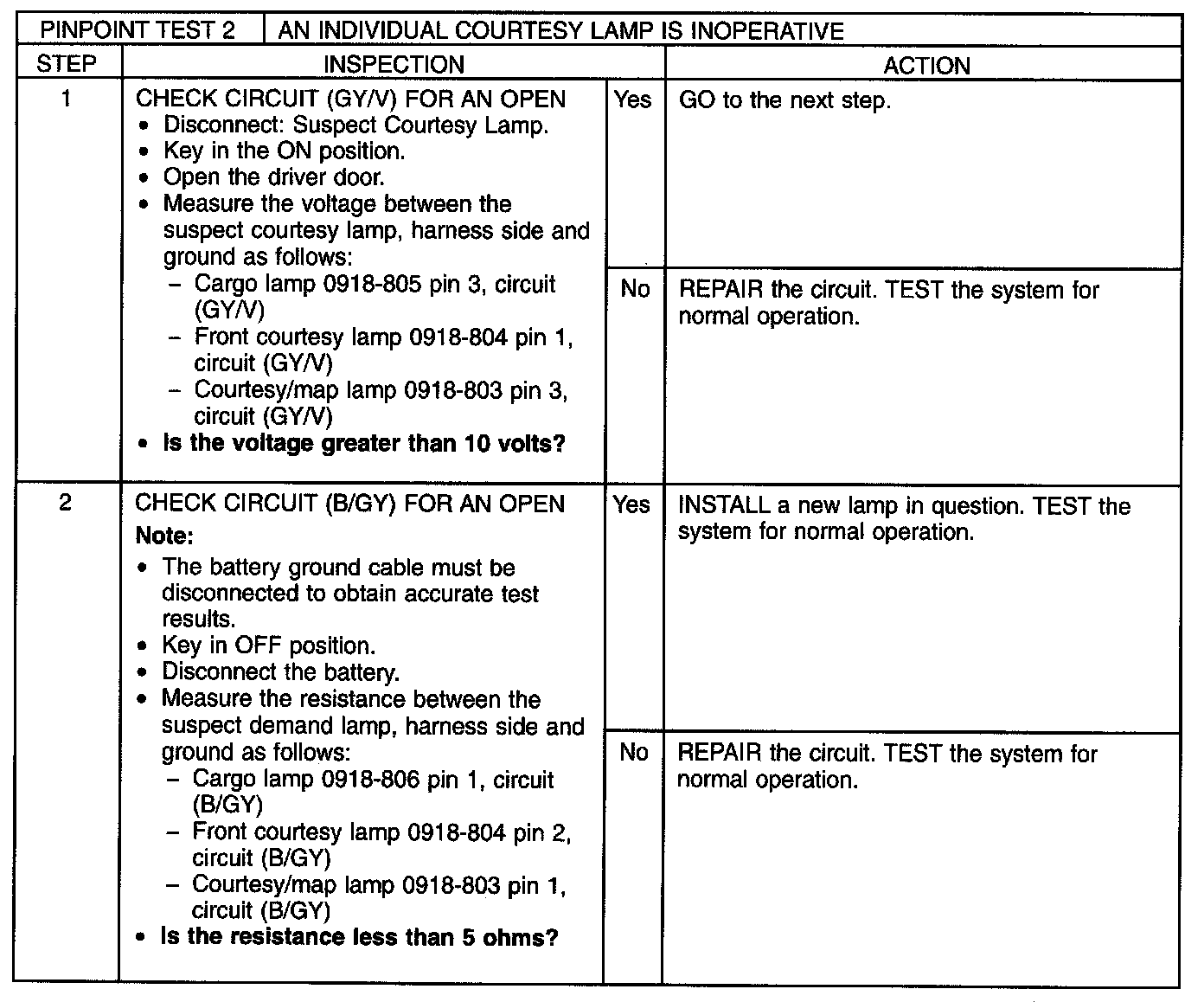

Step 1-Step 2:
